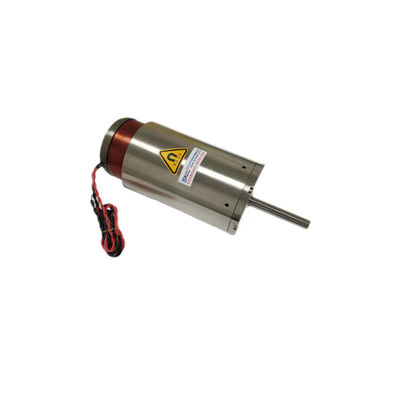

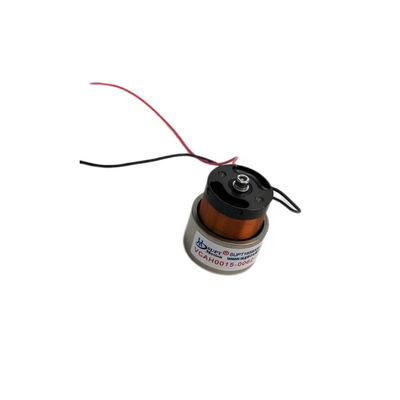

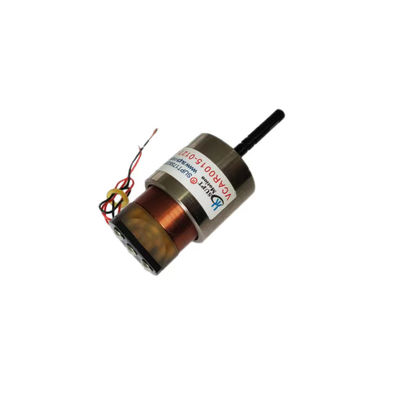

High Accuracy Linear Voice Coil Motor Brushless Direct Drive Motor With Shaft
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | CCC, ce, ISO9001 |
| Model Number | VCAR0044-0075-00A |
| Minimum Order Quantity | ≥1 |
| Price | $120.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box voice coil motor magnets |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month voice coil motor magnets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Ventilator, Microscope, Endoscope, Optics, Optical Lens |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brushless |
| Protect Feature | Totally Enclosed | Speed(RPM) | 20 |
| Continuous Current(A) | 4.8 | Efficiency | IE 1 |
| Peak Force(N) | 33 | Maximum Travel(mm) | 9.9 |
| Voice Coil Motor Magnets (V) | 24.3 | Weight Rotor(kg) | 23.5 |
| Stator Dia(mm) | 36 | Continuous Force(N) | 8 |
| Port | Shanghai Voice Coil Motor Magnets | ||
| Highlight | High Accuracy Linear Voice Coil Motor,Linear Voice Coil Motor 20rpm,Brushless Direct Drive Motor 20rpm |
||
Product Description
Brushless Direct Drive Motor With Shaft High-Accuracy Small Size
Product Description
Linear voice coil motor with built-in kinematic shaft and precision linear bearings, the kinematic shaft is made of lightweight, highly rigid and wear-resistant materials.
Widely used in semiconductor, precision testing and inspection, valve flow control and other fields.
Brushless shaft direct drive motors enable efficient motion control and precise positioning of the robot.
Brushless shaft direct drive motors control the magnetic field generated by the internal permanent magnets by regulating the current, thus directly driving the motor rotor to rotate. Multiple brushless direct-drive motors with shafts can be used in the joints of the robot to realize various degrees of freedom of motion.
Due to the direct drive nature of the brushless shaft direct drive motors, they provide highly accurate position control. Robots can utilize this feature to achieve precise position and attitude control, such as positioning a tool or end effector to a specific target position.
Brushless shaft direct drive motors are characterized by fast response which is important for robotic tasks that require fast movement or high speed operation.
Brushless shaft direct drive motors can be integrated with encoders to provide precise feedback signals by monitoring the position of the motor rotor, enabling closed-loop control.
Brushless shaft direct drive motors offer efficient energy conversion, which reduces energy consumption and also reduces the amount of heat generated by the robot. They are also characterized by low noise levels, making the robot quieter during operation.
|
The main application of a voice coil motor: |
|
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
|
3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
|
4.Vibration System:Shaking table, vibration platform. |
|
5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
|
6.Aviation Technology:Flight control system, pilot feedback system. |
|
7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
|
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
The linear voice coil motor system is a high-efficiency linear motor that provides accurate position repeatability and low noise levels. Built-in motion shaft and precision linear bearing. The sports shaft is made of light weight, high rigidity and wear-resistant material. High quality material. Widely used in semiconductor, medical equipment, precision testing and detection, valve flow control and other fields. Voice coil motor with built-in motion shaft and precision linear bearing. The sports shaft is made of lightweight, high stiffness and wear-resistant materials. The moving ring has the advantages of light weight, small volume, short response time, high frequency and high precision.
Our Services
Competitive advantage products
Full refund in case of bad quality or late delivery
Quality assurance contract
Small order welcomed
After sales service 24*7
Company Information
Packaging & Shipping
Certifications
FAQ
motor:
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
