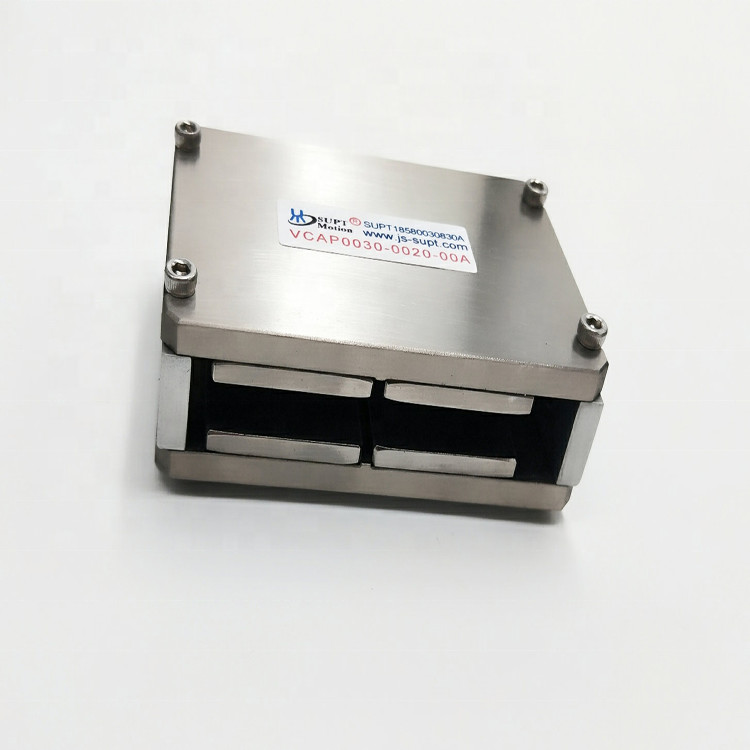

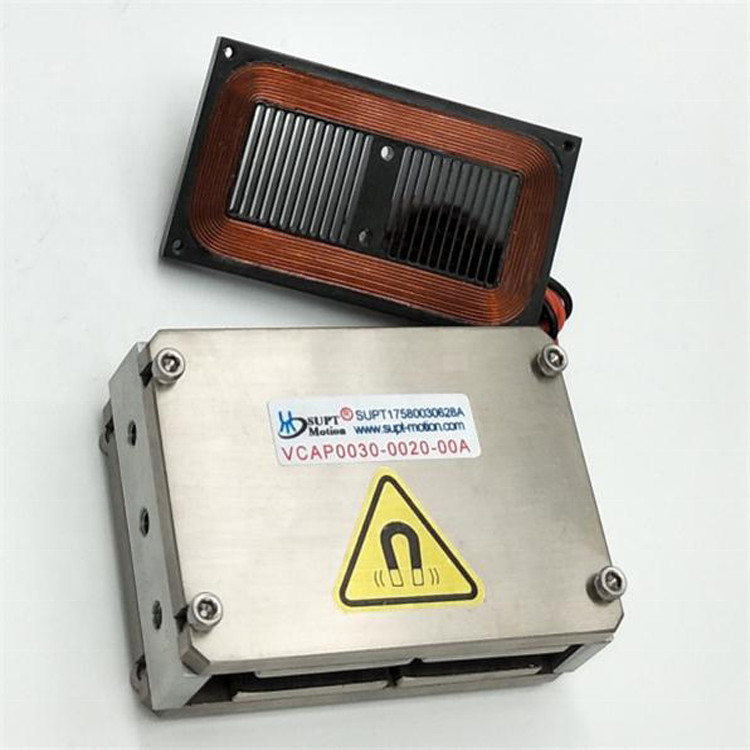

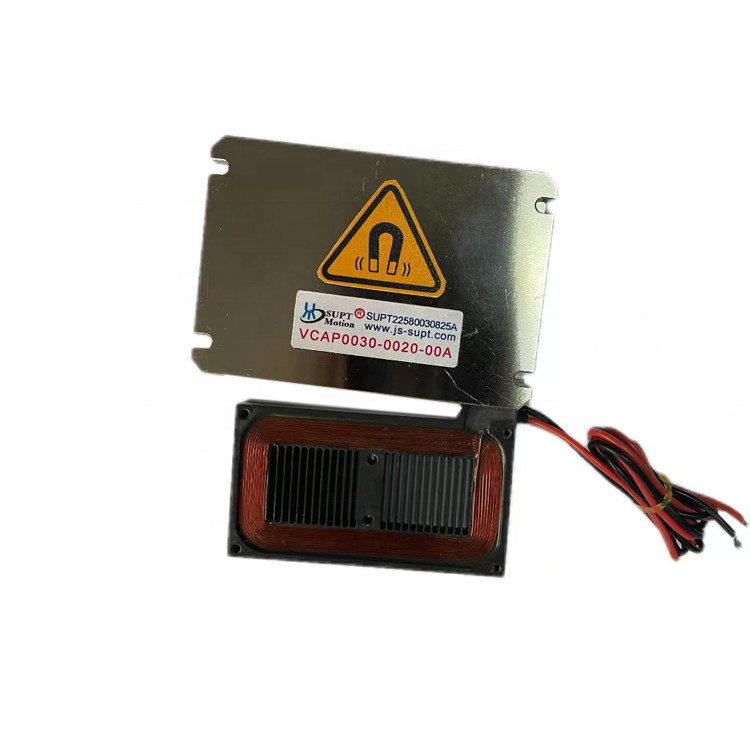

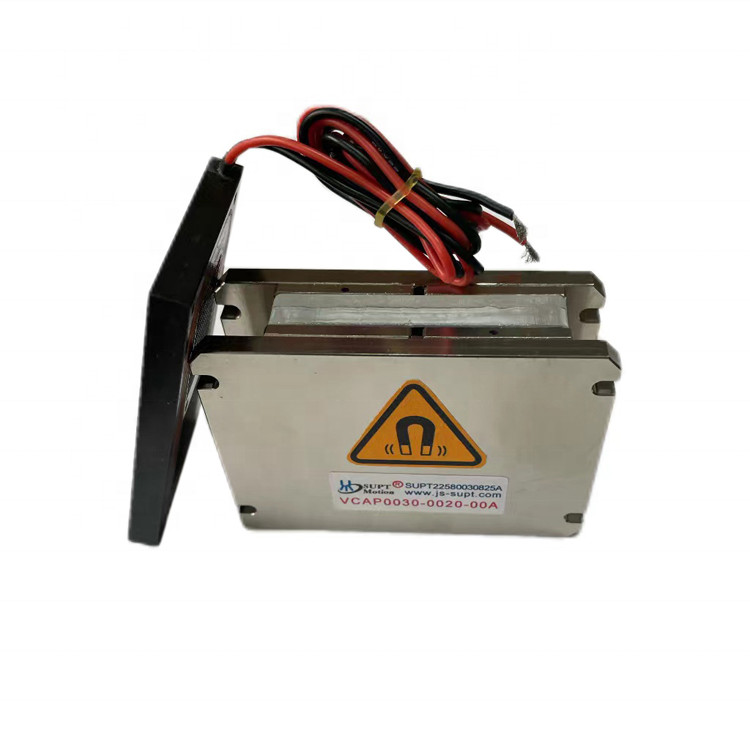

High Response Flat Linear Motor Coils For Automation And Robotics
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPTMOTION |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0030-0200-00A |
| Minimum Order Quantity | ≥1 |
| Price | $260.00/pieces 1-19 pieces |
| Packaging Details | carton/wooden box linear motor coil |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month linear motor coil |
Product Details
| Warranty | 3months-1year | Usage | BOAT, Car, Robots, UAVs,medical Ventilators,3D Printing,microscopes,endoscope |
|---|---|---|---|
| Type | Brush Motor | Torque | 5.5n.m |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Constant Speed |
| Continuous Current(A) | 4A | Efficiency | IE 1 |
| Peak Force(N) | 30 | Maximum Travel(mm) | 20 |
| Voice Coil(v) | 10.5 | Continuous Force(N) | 12.3 |
| Port | Shanghai | ||
| Highlight | DD Motor Linear Motor Coil,Robots Linear Motor Coil 30N,Robots High Frequency Motor 30N |
||
Product Description
Product Description
Flat linear voice coil motors offer exceptional performance, providing precise and rapid linear motion—a critical requirement for a wide range of automation and robotics applications.
1. High-precision positioning: Linear voice coil motors deliver precise and repeatable linear motion, making them an ideal choice for positioning tasks in automation and robotics. They ensure components are positioned accurately, thereby enhancing the overall performance of automation systems.
2. Robotic Arm Drive: In the field of robotics, linear voice coil motors drive robotic arms through smooth and precise linear motion. This enables robots to handle objects gently, perform pick-and-place operations, and complete complex assembly tasks.
3. Conveyor Systems: Integrated into conveyor systems, linear voice coil motors enable the controlled movement of materials and products along assembly lines. Their high precision ensures accurate alignment and transfer of items.
4. Precision Inspection and Testing: In automated inspection and testing systems, linear voice coil motors enable the high-precision movement of sensors, cameras, or probes. This ensures accurate data acquisition and quality control.
Application:
Compared to rectangular motors, the VCAP series of flat motors offer a shorter stroke length per unit of size. With a stroke range of 1 mm to 20 mm and peak thrust ranging from 1 N to 300 N, the VCAP series of flat voice coil motors are the ideal solution for short-stroke X-Y axis motion, with their primary markets concentrated in the semiconductor and micro-machining industries. The flat linear voice coil actuator system is designed to deliver exceptional positioning accuracy, speed, and power. The system employs a voice coil drive mechanism and utilizes a high-torque motor to drive the actuator to the target position. The rotor coil offers advantages such as light weight, fast response time, high frequency, short stroke, compact structure, high efficiency, and ease of installation and maintenance.
Technical Parameters:
|
VCAP Series of Flat type voice coil motor |
|||||||
| Model | Peak force(N) | Continuous force25℃(N) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Width*height (mm) | Length(mm) |
| VCAP0020-0068-00A | 20.0 | 9.2 | 6.8 | 8.2 | 4.4 | 50*21.5 | 39.0 |
| VCAP0020-0160-00A | 20.0 | 5.3 | 16.0 | 27.6 | 4.4 | 50*22.5 | 59.0 |
| VCAP0030-0200-00A | 30.0 | 12.3 | 20.0 | 24.3 | 10.5 | 74*25 | 80.0 |
| Parameter | value | Parameter | value |
| Model | VCAP0030-0200-00A | Peak thrust | 30N |
| Continuous Thrust (25°C) | 5.512.3 | Total stroke | 20mm |
| Maximum Voltage | 24.3V | Back-EMF constant | 10.5V/m/s |
| Length | 80mm | Width | 74mm |
| Height | 25mm | Protection Rating | IP54 |
