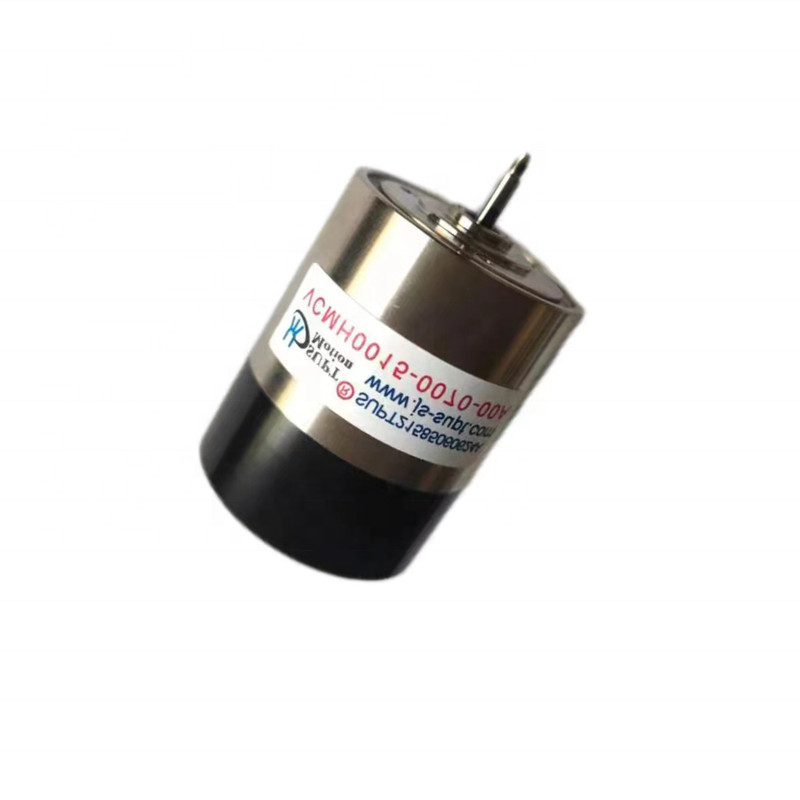

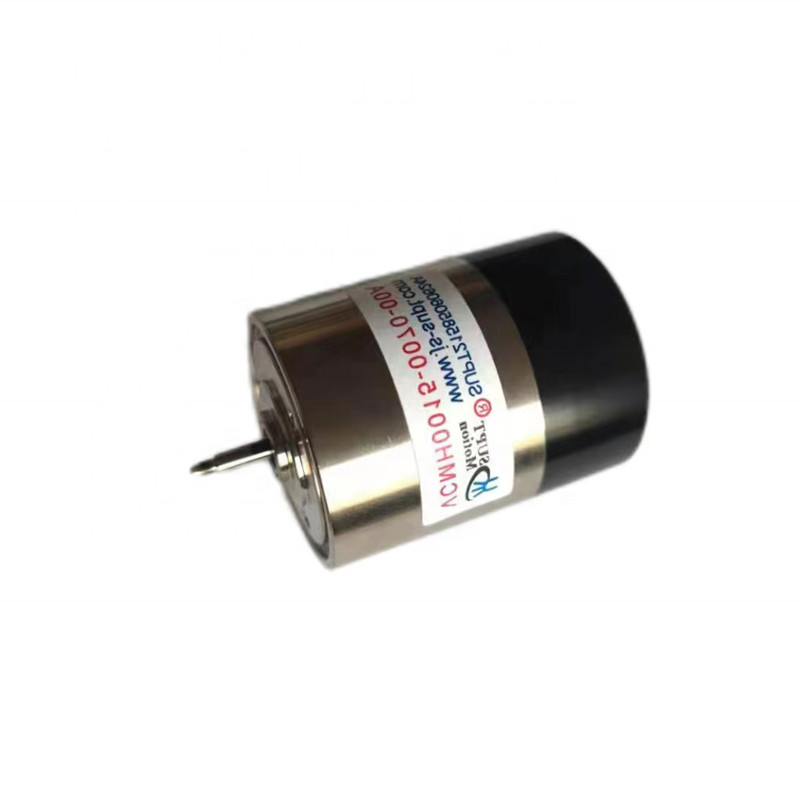

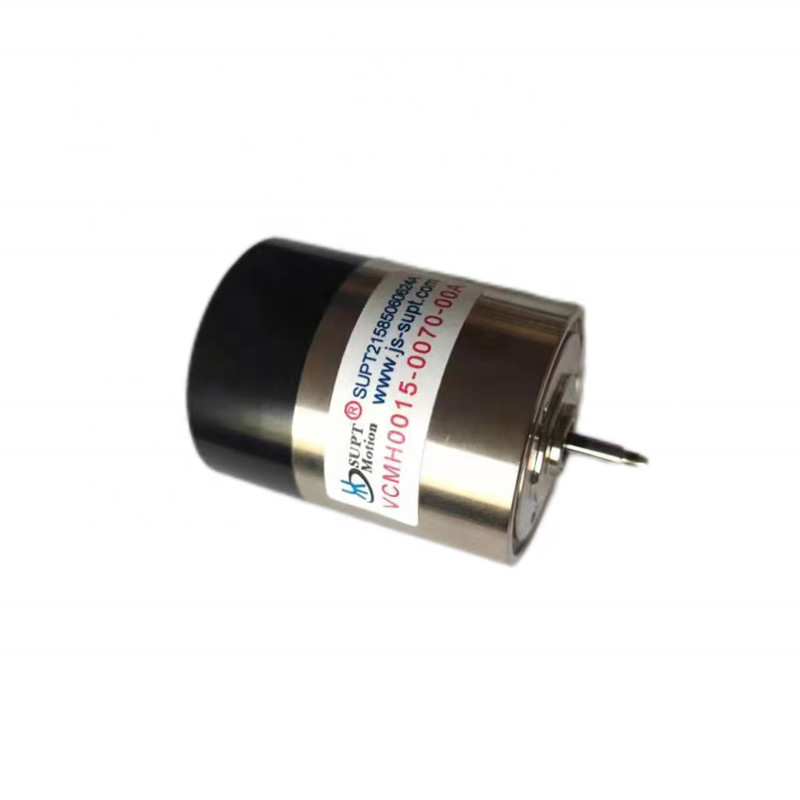

High-Response Precision Micro Voice Coil Motors For Biomedical Projects
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCMH Series |
| Minimum Order Quantity | ≥1 |
| Price | $160.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box electric motors |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 1000 Piece/Pieces per Month electric motorselectric motors |
Product Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 5.8A | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 7.5 |
| Voice Coil Motor(V) | 16.8 | Weight Rotor(kg) | 38.6 |
| Stator Dia(mm) | 31.1 | Continuous Force(N) | 13.7 |
| Port | Shanghai Electric Motors | ||
| Highlight | High Response High Performance Actuator VCM,Light Weight Electric Motors vcm,Light Weight Electric Motors Biomedical Project |
||
Product Description
High Response Light Weight Electric Motors For Biomedical Project
Product Description
Lightweight voice coil motors used in biomedical applications typically offer exceptional performance, meeting the medical field’s requirements for high precision, low noise, and reliability.
1. High-precision positioning: Lightweight voice coil motors enable high-precision position control in biomedical applications.
2. Low-noise operation: In medical environments, noise can disturb patients or compromise the accuracy of experiments. Lightweight voice coil motors are typically designed for low noise to ensure silent operation in medical applications.
3. Fast response: Biomedical applications may require rapid motion response, such as quick and precise position adjustments during cell manipulation. The fast response performance of lightweight voice coil motors makes them well-suited for these needs.
4. Reliability and Long Service Life: In the biomedical field, equipment reliability is critical. Lightweight voice coil motors are typically designed with durability and reliability in mind to meet the long-term operational demands of medical applications.
5. Compact Design: Biomedical devices often need to operate within limited spaces, and the compact design of lightweight voice coil motors makes them ideal for space-constrained medical equipment.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Shaft end thread (mm) |
| VCAH0253-0120-00A | 253 | 46.5 | 12 | 42.7 | 16 | 53.95 | 109 | M5(Inner) |
| VCAH0011-0070-00A | 11 | 3.6 | 7 | 26.2 | 4.9 | 31.5 | 38.9 | M3(Outer) |
| VCAH0013-0070-00A | 13 | 4.2 | 7 | 26.6 | 5.7 | 29 | 40.5 | M3(Outer) |
| VCAH0030-0100-00A | 30 | 7.2 | 10 | 24.9 | 5.2 | 37 | 47 | M3(Outer) |
| VCAH0040-0075-00A | 40 | 12.3 | 7.5 | 16.8 | 6.9 | 36 | 50 | ∮3 |
| VCAH0040-0240-00A | 40 | 6 | 24 | 44.5 | 8 | 41 | 83 | M3(Inner) |
| VCAH0065-0140-00A | 65 | 24.6 | 14 | 27.6 | 16 | 44 | 75 | M3(Inner) |
| VCAH0230-0110-00A | 230 | 100 | 11 | 34.2 | 37 | 71 | 117 | ∮10 |
The breathing precision voice coil motor has light weight and short response time. High precision abrasion resistant optical axis and micro ball bearing, system, output flexible cable. The response time is less than 20ms, the friction force is less than 50mn, and the lag force is less than 40mn. It is widely used in medical treatment, yacht, automobile, electric bicycle, UAV, robot, medical respirator, microscope and optical system. Whether you need to move a part quickly or accurately, this high-performance motor is your best bet.
Our Services
Technical indicators & specifications can be customized
Satisfactory after-sales service
Company Information
FAQ
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
