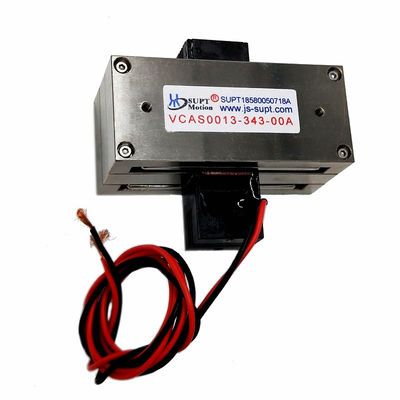

High Speed Linear Motor Actuator VCAS Series Low Noise Micro Voice Coil Actuator
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | VCAS Series |
| Minimum Order Quantity | ≥1 |
| Price | $125 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Positioning Accuracy | 0.1mm | Stroke Length | 34mm |
|---|---|---|---|
| Material | Aluminum Alloy | Protect Feature | Totally Enclosed |
| Type | Rectangular Type Actuator | Noise Level | Low |
| Repeatability | 0.05mm | Product Model | VCAS0013-0343-00A |
| Voltage | 13V | ||
| Highlight | High Speed Linear Motor Actuator 50dB,Linear Motor Actuator 0.05mm Repeatability,0.05mm Repeatability Micro Voice Coil Actuator |
||
Product Description
High Speed Linear Motor Actuator with 0.1mm Positioning Accuracy & 0.05mm Repeatability
Product Description:
The Linear Motor Actuator System is an efficient, precise and reliable electric motion control system designed to provide repeatable motion control in a variety of applications. This system features a linear motor drive system with a repeatability of 0.05mm and a stroke length of 34mm, all powered by 13V of voltage. With its superior linear electric mechanical system, this system is an ideal option for applications requiring high accuracy and repeatability.
The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm.The VCAS series Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
Features:
- Product Name: Linear Motor Actuator
- Voltage: 13V
- Material: Aluminum Alloy
- Peak force: 13N
- Repeatability: 0.05mm
- Stroke Length: 34mm
- Linear Motor Drive System: Yes
- Linear Motor Actuator Unit: Yes
- Linear Electric Motor System: Yes
Technical Parameters:
| Parameter | Value |
|---|---|
| Type | Rectangular Type Actuator |
| Voltage | 13V |
| Noise Level | Low |
| Repeatability | 0.05mm |
| Current | 2A |
| Positioning Accuracy | High |
| Stroke | 34mm |
| Material | Aluminum Alloy |
| Speed | High |
| Weight | Low |
| Technology | Linear Electric Motor Drive, Linear Electro-Mechanical Actuator, Linear Electric Motor Drive System |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |
| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
Applications:
Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
