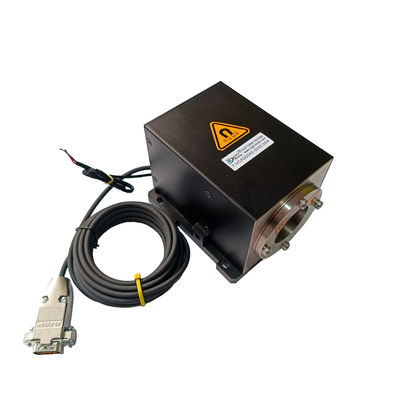

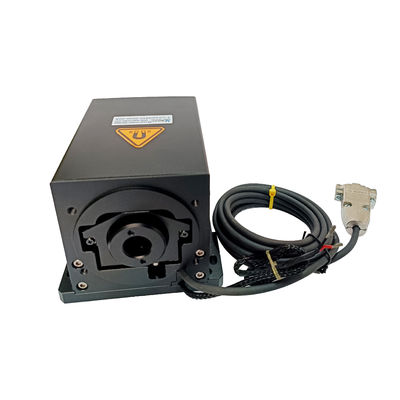

High Precision Hollow Core Voice Coil Linear Actuator For Autofocus
Product Details
| Motor Housing Material | Aluminum Alloy | Application | Hollow Core Machines |
|---|---|---|---|
| Total Stroke | 20mm | Protect Feature | Totally Enclosed |
| The Length | 75mm | Noise Level | Low |
| Cost | Affordable | Model Number | VCAD0120-0200-00A |
| Peak Force (N) | 120 | Max Voltage （V） | 78 |
| Usage | Industrial | Type | Electric Motor |
| Highlight | Hollow Core Motor linear actuator,Miniature VCM actuator for cameras,Mobile phone camera focusing motor |
||
Product Description
Product Description:
Hollow-rotor voice coil motors are commonly used in the autofocus systems of smartphone cameras to enable autofocus and optical image stabilization.
In autofocus systems, the hollow-rotor motor drives the lens group to move back and forth along the optical axis to achieve focus.
Thanks to the motor’s high response speed and precise control, the camera can quickly and accurately focus on the subject.
Additionally, in optical image stabilization systems, hollow voice coil motors compensate for camera shake by rapidly adjusting the lens position, thereby enhancing image clarity.
Hollow motors are directly integrated into the autofocus systems of smart cameras. By precisely controlling the lens position, they enable fast, high-precision focusing, ensuring sharp images.
Hollow motors are compact and lightweight, making them suitable for the confined spaces inside smartphones while also reducing the overall weight of the device.
With their high-speed response and microsecond-level adjustment capabilities, hollow voice coil motors meet the stringent requirements of smart camera photography for instantaneous focusing and fine-tuning.
Features:

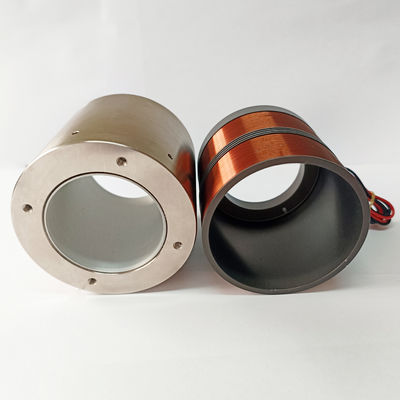

Type: Hollow-coil motors, hollow-core motors.
Features: Fast response, high acceleration, lightweight coils, no cogging effect, zero hysteresis, simple structure, lightweight, high-frequency response, and smooth operation.
Applications: Widely used in optical scanning, positioning, and automatic alignment systems. Modular design, customizable.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Stator Diameter (mm) | The Length (mm) |
Through-hole diameter |
| VCAD0075-0160-00A | 75 | 23 | 16 | 33 | 17 | 54 | 51 | ∮20 |
| VCAD0120-0200-00A | 120 | 53 | 20 | 78 | 53 | 85 | 75 | ∮53 |
| VCAD0220-0110-00A | 220 | 100 | 11 | 35 | 35.8 | 71 | 64 | ∮25.4 |
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
Applications:
Main applications of hollow core motors:
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Field valve operation: type metering valves, pressure testing systems, pneumatic valves chemical injection systems.
3. Aerospace technology: Flight control systems, pilot feedback systems.
4. Commercial field: Computerized cooling pumps for miniature camera autofocus systems.
