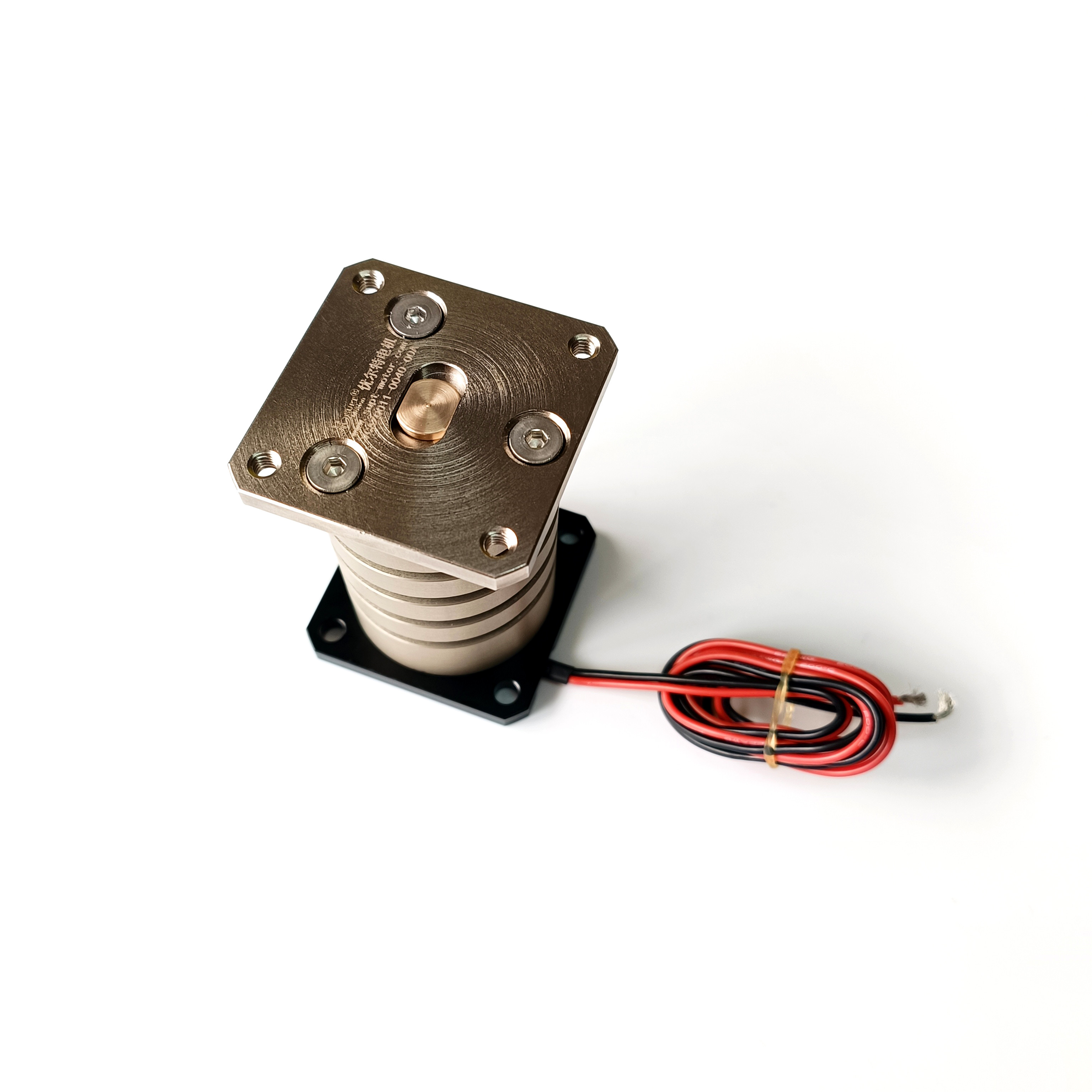

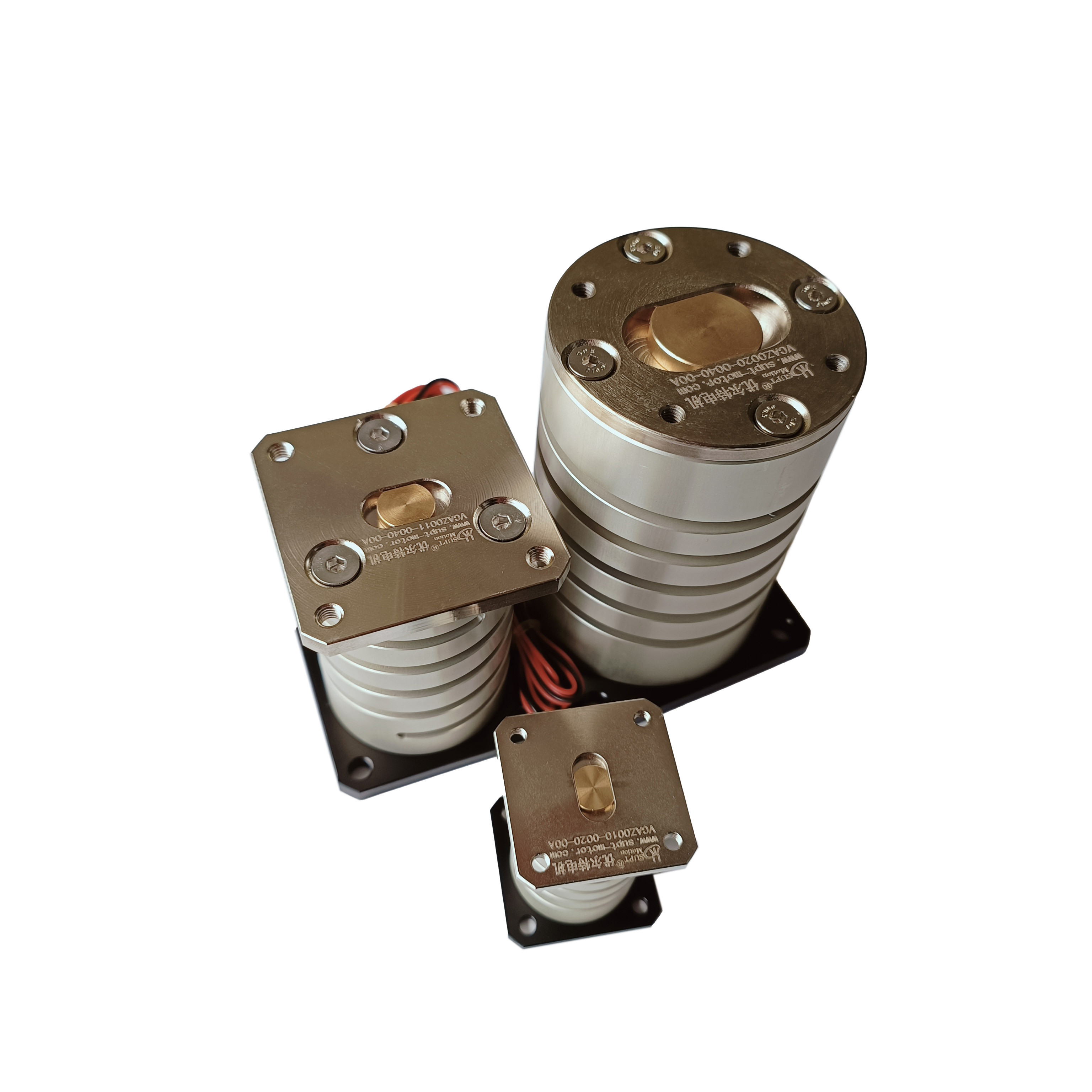

High Frequency Flexible Vibrating Voice Coil Motors For Robotic Vision Systems

Product Description:

Flexible vibrating voice coil motor is a small, extremely responsive linear actuator, based on the Lorentz force principle, which realizes precise displacement or vibration output by controlling the current. Due to its high dynamic performance, simple structure and high control accuracy, it plays an increasingly important role in the robot vision system, and is mainly used in key aspects such as image acquisition, lens focusing and field of view scanning.
The flexible vibrating voice coil motor is processed with high strength and good stability materials.
Voice coil motor flexible vibrating plate adopts special drive control technology, can realize the parts back and forth movement, flip, dispersion and polymerization.
Vibrating voice coil motor flexible loading mechanism integrated adjustable backlight light source (can drive micro light source (such as projection module) to do fast linear scanning, spatial information acquisition, improve three-dimensional imaging accuracy), can complete the vibration of the material feeding, automatic control of the vision system, automatic control of the machine's pickup system.
In mobile robots or robotic arms equipped with vision systems, vibration motors are commonly used in the camera module's autofocus mechanism to achieve fast, smooth and delay-free focus adjustment. Compared with the traditional stepper motor focusing method, the vibrating voice coil motor has higher focusing speed and accuracy, which is suitable for clear capture of moving targets.
Vibrating motors are also used for lens anti-shake and fine-tuning: they are used in the lens micro-displacement compensation system to stabilize the image and improve the recognition accuracy during the robot movement or working process through the voice coil motors.

Features:

Flexible vibration voice coil motor, short response time, high vibration frequency, good consistency and stability.
Fast response: microsecond start-stop, suitable for fast zoom, tracking and other highly dynamic tasks.
Compact structure: miniaturized design, easy to be integrated inside the vision module or at the end of the robotic arm.
Precision linear control: sub-micron resolution, suitable for high-precision vision positioning.
Quiet operation: no gears, no contact, quiet operation, ideal for image acquisition systems that require interference-free signals.

Product Parameters:

Applications:

Typical application areas for vibrating voice coil motors:
Visual head systems for service robots (face recognition, automatic focusing before object recognition).
Industrial inspection robots (automatic optical inspection, lens focusing before recognizing defects).
UAV, AGV navigation system (vibration compensation, image stabilization).
Medical robot visual navigation (high-definition image acquisition and precise focus.)
