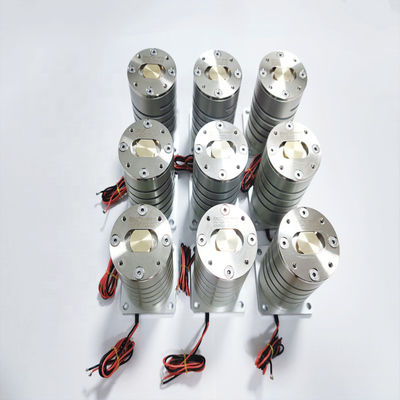

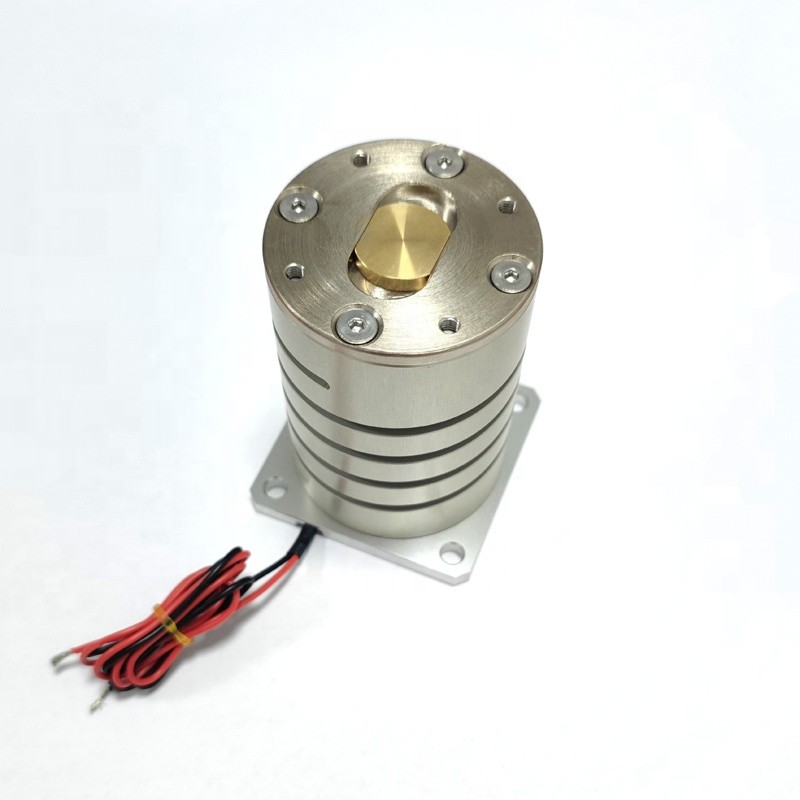

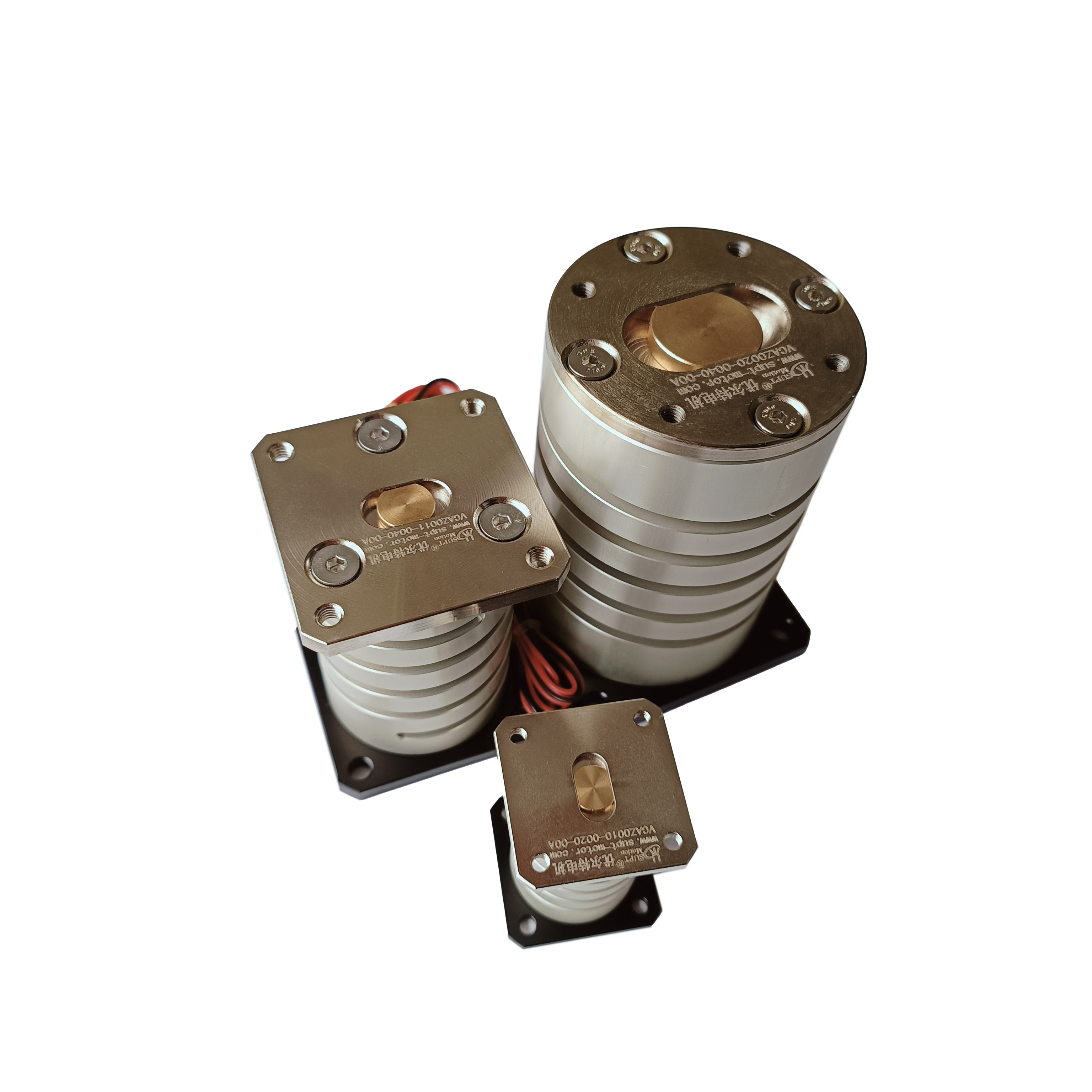

High Frequency Micro Flexible Vibration Motors For Hopper Shakers
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAZ Series |
| Minimum Order Quantity | 2PCS |
| Price | $112 |
| Packaging Details | Carton Packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certifications | CE,ISO9001 | Warranty | 3months-1year |
|---|---|---|---|
| Model Number | VCAZ0020-0040-00A | Type | Micro Motor |
| Peak Force(N) | 20.5 | Maximum Travel(mm) | 3 |
| Vibration Motor(V) | 25.9 | Actuator Weight (g) | 375 |
| Continuous Force(N) | 8.9 | Construction | Permanent Magnet |
| Vibration | High Vibration |
Product Description
Product Description:
Flexible vibratory voice coil motors in flexible loading mechanisms solve loading problems that cannot be solved with traditional vibrating pans.
Flexible vibration motors are usually mounted on a shaker or hopper through a flexible connection, allowing the vibration energy to be transferred to the equipment in a more controlled and uniform manner.
The application of flexible vibration motor in the hopper shaker is mainly reflected in the improvement of material flow, reduce the phenomenon of blockage, and improve the feeding accuracy and efficiency. Vibrating motor flexible vibrating plate adopts special drive control technology, which can realize parts moving back and forth, turning, dispersing and aggregating.
Vibrating motor in the flexible feeding mechanism integrated adjustable backlight light source, can complete the vibration feeding, vision system automatic control, machine pickup system automatic control.
The advantages of using flexible vibration motors for material loading are:
1. Avoid destroying fragile materials.
2. Its frequency and amplitude adjustable to adapt to different types of materials.
3. Reduce noise and impact to enhance operational comfort and equipment life avoidance.
4. Hard resonance: reduce the stress concentration on the hopper structure.
5. Improve the fluidity: effectively solve the problem of material blocking and sticking.
Flexible vibration motors are usually mounted on a shaker or hopper through a flexible connection, allowing the vibration energy to be transferred to the equipment in a more controlled and uniform manner.
The application of flexible vibration motor in the hopper shaker is mainly reflected in the improvement of material flow, reduce the phenomenon of blockage, and improve the feeding accuracy and efficiency. Vibrating motor flexible vibrating plate adopts special drive control technology, which can realize parts moving back and forth, turning, dispersing and aggregating.
Vibrating motor in the flexible feeding mechanism integrated adjustable backlight light source, can complete the vibration feeding, vision system automatic control, machine pickup system automatic control.
The advantages of using flexible vibration motors for material loading are:
1. Avoid destroying fragile materials.
2. Its frequency and amplitude adjustable to adapt to different types of materials.
3. Reduce noise and impact to enhance operational comfort and equipment life avoidance.
4. Hard resonance: reduce the stress concentration on the hopper structure.
5. Improve the fluidity: effectively solve the problem of material blocking and sticking.
Features:
Type: Flexible vibration disk voice coil motor, vibration motor, flexible vibration actuator, vibration voice coil motor.
Flexible vibration motor in the flexible loading mechanism solves the loading problem that cannot be solved by the traditional vibration plate.
Flexible vibration motor is processed with high strength and good stability materials.
Flexible vibration voice coil motor, short response time, high vibration frequency, high precision, low noise, good consistency and stability.
Product Parameters:
| Model Number | VCAZ0020-0040-00A | |
| Winding constant | VALUE | UNIT |
| DC resistance | 10.2 | Ω |
| Voltage @ Fp | 25.9 | V |
| Current @ Fp | 2.6 | A |
| Inductance | 1.3 | mH |
| Peak force | 20.5 | N |
| Con force | 8.9 | N |
| Actuator constant | 2.55 | Ka |
| Power @ Fp | 65.3 | W |
| Total stroke | 3 | mm |
| Max winding temp | 150 | ºC |
| Actuator weight | 110 | g |
Applications:
Main applications of flexible vibration motors:.
1. Semiconductor industry: cutting, drilling, transportation systems, welding, robotics.
2. Vibration systems: vibration tables, vibration platforms.
3. Medical field: micro-injection systems, respiratory equipment, testing equipment.
4. Aerospace technology: flight control systems, pilot feedback systems.
5. Commercial sector: visual imaging systems, micro-camera autofocus systems.
6. Automation industry: laser equipment, dispensers, test equipment, robotic arms.
