High Precision Micro Flat Linear Voice Coil Motor For Semiconductor Laser Cutting
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAP Series |
| Minimum Order Quantity | 1PCS |
| Price | $110 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

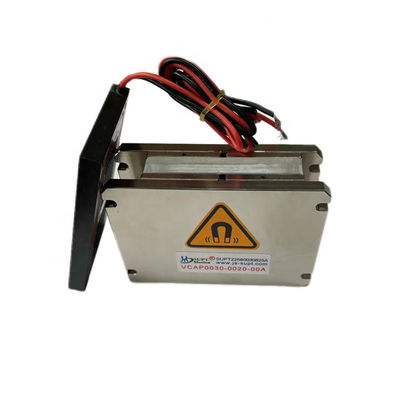

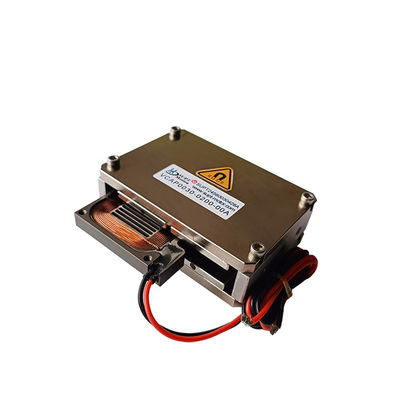

| Warranty | 3months-1year | Product Modle | VCAP0030-0200-00A |
|---|---|---|---|
| Peak Force | 30N | Commutation | Brush |
| Continuous Force(N) | 12.3 | Voice Coil Motor(v) | 24.3 |
| Size Volume | 80*74*25 | Port | Shanghai |
| Maximum Travel(mm) | 20 | Type | Micro Motor |
| Protect Feature | Totally Enclosed |
Product Description
Product Description:
The VCAP series flat linear voice coil motors and rectangular linear voice coil motors have relatively shorter travels for the same volume, but flat linear voice coil motors have the advantage of lower height. With a force range of up to 500N and an impact force of up to 15mm, the VCAP series of flat linear voice coil motors are ideal for x-y axis motion, with their main markets in the semiconductor and miniature machine tool industries.
The Flat Voice Coil Motor is a linear drive based on the Lorentz force principle: when current passes through a coil embedded in a magnetic field, the coil is pushed to achieve linear motion. Its tight, customizable flat shape makes it suitable for integration into laser cutting heads or high-precision stages.
The application of flat linear voice coil motors in semiconductor laser cutting is mainly in the aspects of high precision positioning, high response speed and frictionless transmission, which meets the extremely high requirements of modern microelectronics manufacturing for dynamic performance and reliability at the nanometer level.
Nowadays, laser cutting is a key process used for wafer cutting in chip manufacturing, which requires extremely high positioning accuracy (micron or even nanometer level)
It requires very high positioning accuracy (micron or even nanometer scale), fast response servo control system, smooth and vibration-free motion trajectory, and controlled acceleration/deceleration to avoid damage to the chip.
Features:
Type: Flat Voice Coil Motor, Flat Linear Voice Coil Motor, Flat Linear Motion Motor, X-Y Axis Motion Actuator, Flat Linear Voice Coil Motor
Flat linear voice coil motorized sub-coils are lightweight, fast response, short response time, high frequency, short stroke, compact, high precision dynamic positioning.
Stroke 1mm-20mm.
Peak thrust 1N-300N.
Commonly used for x-y axis motion stages.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |

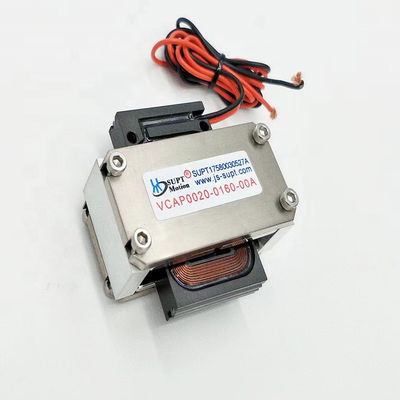

| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
Applications:
Widely used in semiconductor and miniature machine tool industries.
Modular design, can be customized.
The main applications for flat linear voice coil motors:
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Micro-machine industry: feeding systems, micro-drilling, precision stamping.
3. Vibration system: vibration table, vibration platform.
4. Automation industry: laser equipment, distributors, test equipment, textile machinery.
Use:BOAT, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical project.
