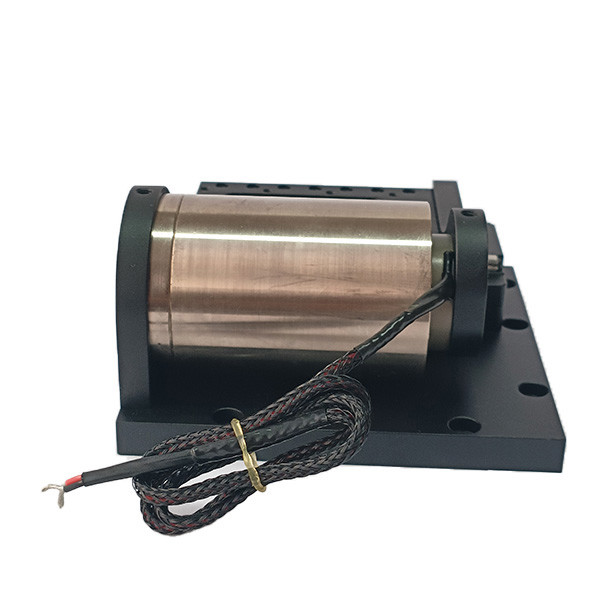

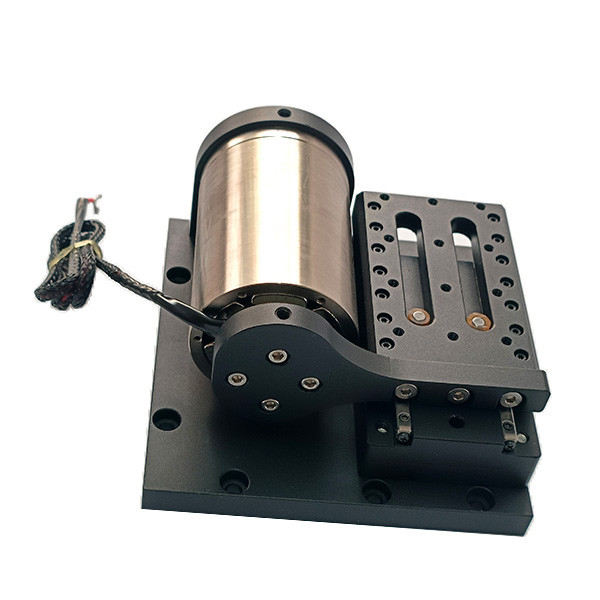

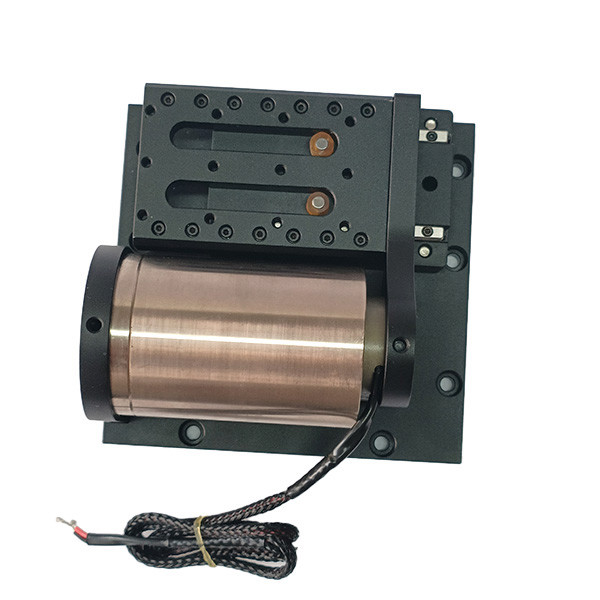

High-Acceleration Voice Coil Motor Module For Optical Equipment Applications

Place of Origin China Suzhou
Brand Name SUPT MOTION
Certification ISO9001,CCC.CE
Model Number VCAR1351-0310-00A
Minimum Order Quantity ≥1
Price $155
Packaging Details Carton Packaging etc
Delivery Time 1-5pcs ,5 days . >20pcs ,To be negotiated
Payment Terms T/T
Supply Ability Interview

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Continuous Force(N) 376.8 Maximum Travel(mm) 31
Communication Protocol Modbus, Profibus, Profinet Rated Current 19.9 A
Speed(RPM) High Speed Voltage 73.5V
Modularity Modular Design Peak Force(N) 1351
Highlight

high-acceleration voice coil motor

,

voice coil motor for optical equipment

,

optical equipment motor module

Leave a Message
Product Description

Product Description:

Single-axis voice coil motor modules are designed for short-stroke closed-loop servo applications. Featuring lightweight moving parts and rapid response (millisecond-level with acceleration up to 20G), these modules utilize precision-machined aerospace-grade aluminum bases for exceptional stability, enabling high-speed oscillatory reciprocating motion. Control is simple and reliable, requiring no commutation devices, with maintenance-free operation and extended lifespan. They enable precise control of position, velocity, acceleration, and thrust.

The Voice coil motor modules are essential components in optical equipment, offering high-precision positioning, rapid response, and stable light control. They are suitable for various optical applications and play a central role in enhancing imaging quality and operational efficiency.

In cameras and video equipment, they power autofocus (AF) and optical image stabilization (OIS) modules. Voice coil motor modules enable micrometer-level rapid lens displacement for instant precise focusing while compensating in real-time for hand shake-induced lens shift. This significantly enhances image clarity, particularly in smartphone telephoto photography and professional DSLR video recording.

In laser processing equipment, they drive laser galvanometers or focusing lenses. Voice coil motor modules enable high-frequency adjustment of laser focal points with acceleration up to 50m/s², ensuring laser trajectories precisely match processing paths.

In microscopes, projectors, and display devices, they enable rapid positioning and objective lens switching. Within laser projectors, voice coil motors drive lens micro-adjustments to correct image offset, ensuring precise screen alignment. In high-end LCD display backlight modules, they control light valve aperture to achieve fine-grained local brightness modulation, enhancing display contrast.





Features:

  • Product Name: Motor Modules
  • Communication Protocol: Modbus, Profibus, Profinet
  • Speed(RPM): High speed
  • Efficiency: IE 1
  • Rated Current: 19.9 A
  • Type: Modular Motor System


Technical Parameters:

Product Model Peak Force
(N)
Continuous Force
at 25℃(N)
Total Stroke
(mm)
Max Voltage
(V)
Back EMF Constant
(V/m/s)
Weight of the coil
(g)
Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7
High-Acceleration Voice Coil Motor Module For Optical Equipment Applications 0

Applications:

SUPT MPTION's voice coil motor modules pursue perfection in quality. These motor modules find extensive application, with primary markets targeting the medical, semiconductor, aerospace, automation, and optical equipment sectors.



The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.
