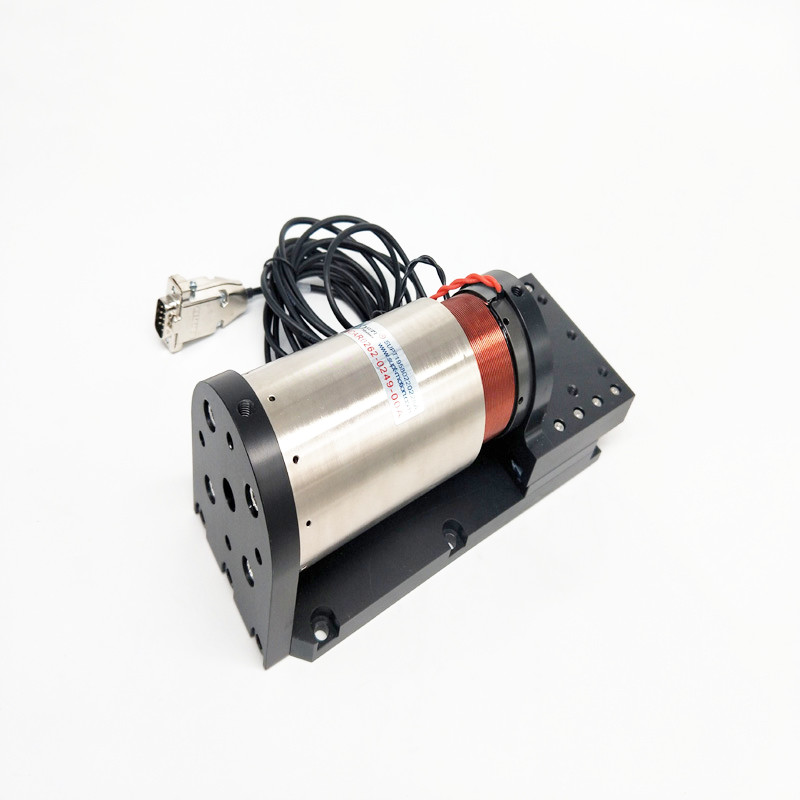

Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning

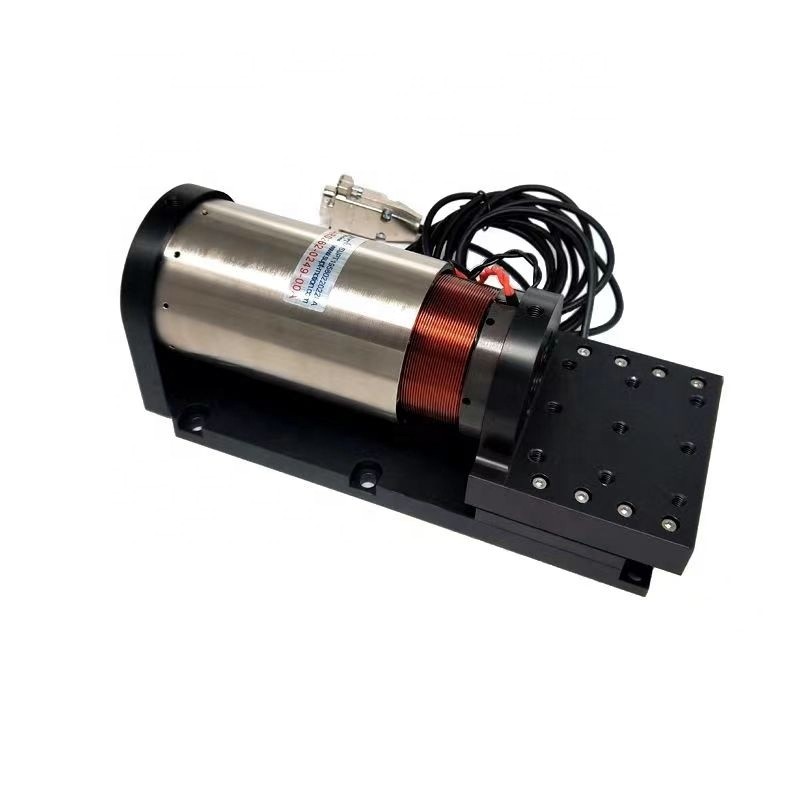

  • Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning

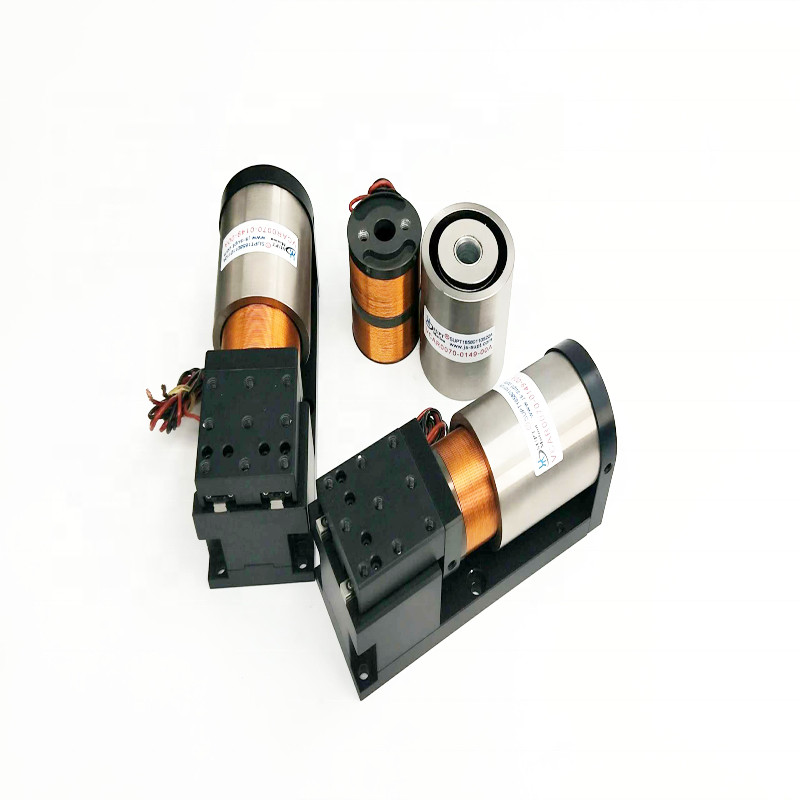

  • Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning
  • Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning
Place of Origin China Suzhou
Brand Name SUPT MOTION
Certification ISO9001,CCC.CE
Model Number VCAR0013-0249-00A
Minimum Order Quantity ≥2
Price $121
Packaging Details Carton Packaging etc
Delivery Time 1-5pcs ,5 days . >20pcs ,To be negotiated
Payment Terms T/T
Supply Ability Interview

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed(RPM) High Speed Construction Permanent Magnet
Communication Protocol Modbus, Profibus, Profinet Power Range 26W
Usage BOAT, UAV,3D Printing,Microscope,Robot Batch Number YET-YQDJ0021
Peak Force(N) 13 Type Micro Motor
Highlight

high-speed voice coil motor

,

microscope focusing motor module

,

scanning voice coil motor module
Leave a Message
Product Description

Product Description:

The Voice coil motor modules are key components in various applications across multiple industries. This product has a peak force of 13N. The motor module has a wide range of applications, including boats (BOAT), PCB testing, unmanned aerial vehicles (UAV), 3D printing, microscopes, and robot systems.

SUPT MOTION's voice coil motor modules are primarily used in microscopes for critical processes requiring high-speed and high-precision linear positioning, such as automatic focusing and scanning.

During three-dimensional imaging or long-term live cell imaging with confocal microscopes, sample drift and thermal effects can cause focal drift, which requires real-time dynamic compensation. Voice coil motors have fast response speeds, high positioning accuracy (reaching sub-micron or even nanometer levels), no mechanical friction, and smooth travel, making them ideal actuators for driving objectives or precision stages for focusing.

In rapid scanning imaging technologies, it is necessary to perform fast scanning in the Z-axis direction while acquiring single-frame X-Y images, allowing the system to complete its tasks smoothly.



Features:

  • Product Name: Motor Modules,voice coil motor module
  • Weight motor(Kg): 5.6
  • Peak force(N): 13
  • Power Range: 26W
  • Construction: Permanent Magnet
  • Usage: BOAT, UAV, 3D Printing, Microscope, Robot


Technical Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7
Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning 0

Applications:

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning 1Micro High-Speed Voice Coil Motor Module For Microscope Focusing Scanning 2
Tags:

Vertical Travel Motor Modules Stage

Short Stroke Motor Modules 10.1A
