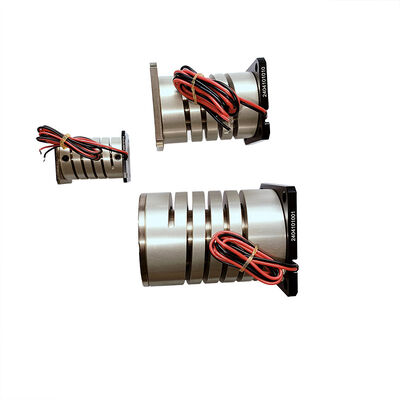

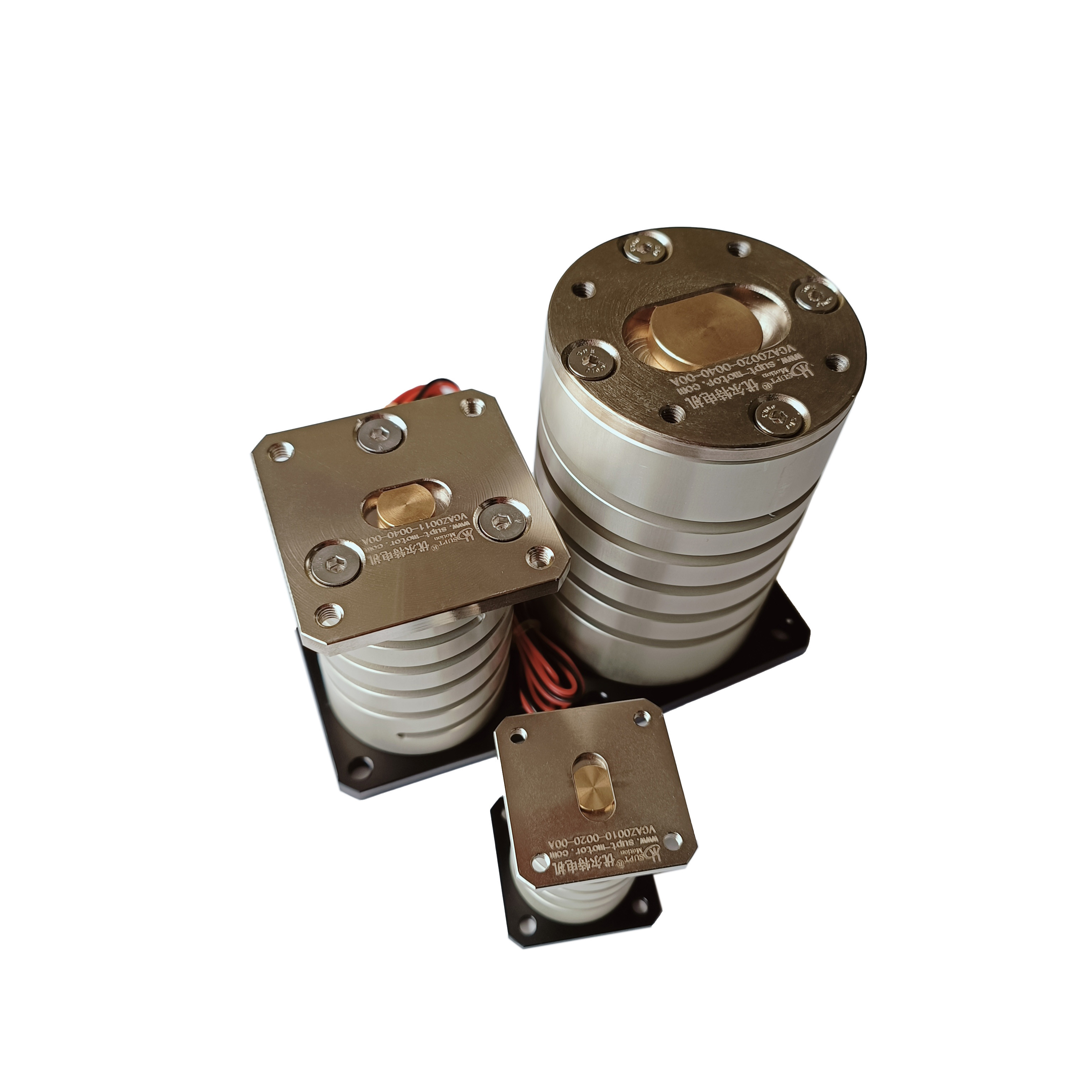

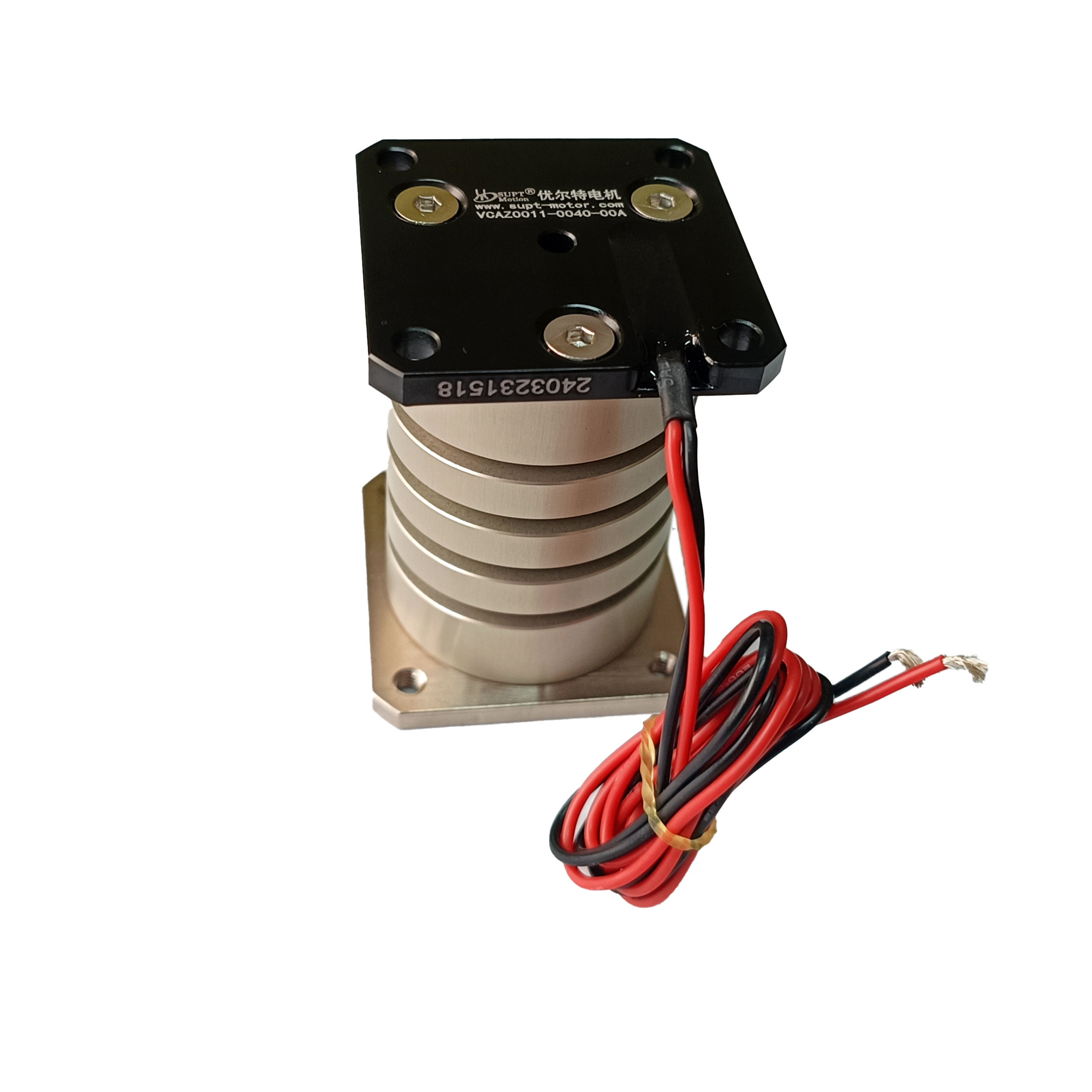

High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems
Product Details
| Motor Type | Vibration Motors | Peak Force | 10.2N |
|---|---|---|---|
| Model Specifications | VCZA0010-0020-00A | Starting Current | 1.6A |
| Rated Voltage | 14.8V | Power @ Fp | 56.3W |
| Stroke | 1.5mm | Actuator Weight | 69g |
| Speed | High | Continuous Force | 2.2N |
| Type | Micro Motor | Protect Feature | Totally Enclosed |
Product Description
Product Description:
SUPTMOTION VCAZ Compact Vibration Voice Coil Actuator is a high-performance linear voice coil motor designed for precision automation systems requiring accurate motion control within limited installation space. Modern automation equipment used in industries such as semiconductor manufacturing, electronics assembly, optical alignment, and precision inspection often demands compact vibration motors capable of high speed and high precision.
This compact vibration voice coil motor delivers rapid dynamic response. Exceptional acceleration performance enables automation systems to achieve rapid start-stop motions and precise positioning adjustments, making it an ideal choice for applications demanding short cycle times and high production efficiency.
Featuring a compact structural design, the vibrating voice coil motor integrates seamlessly into micro-positioning platforms, robotic modules, and compact automation systems. Despite its small footprint, this actuator delivers high force density, providing robust thrust output for high-precision motion applications.
Features:
Type: Vibration Motor, Flexible Vibration Disc Voice Coil Motor, Vibration Voice Coil Motor
1.Compact voice coil actuator design
2.High precision positioning capability
3.Fast response and high acceleration
4.Smooth direct drive linear motion
5.Long service life and reliable performance
Product Parameters:
Stroke: 1.5 mm
Continuous Force: 2.2 N
Peak Force: 10.2 N
Repeatability: ±0.5 μm
Max Speed: 1.8 m/s
Frequency Response: 250 Hz
| Model Number | VCAZ0010-0020-00A | |||
| Coil parameters | Tolerance | Symbol | Value | Unit |
| DCR | ±10% | R | 9.5 | Ω |
| Peak Voltage | standard value | Vp | 14.8 | V |
| Maximum current | standard value | Ip | 1.6 | A |
| Force constant | ±7.5% | KF | 2.7 | N/A |
| Back EMF constant | standard value | KD | 2.7 | V/M/Sec |
| Inductance | ±30% | L | 0.37 | mH |
| Actuator paramters | Symbol | Value | Unit | |
| Peak force | Fp | 10.2 | N | |
| Continuous stall force | Fc | 2.2 | N | |
| Actuator coonstant | Ka | 0.87 | N//W | |
| Electrical time constant | Te | 0.04 | milli-sec | |
| Pmax | Pp | 24 | W | |
| Stroke | S | 1.5 | mm | |
| Clearance of each side of coil | CL | 0.8 | mm | |
| Thermal resistance | Oth | 20 | ℃/W | |
| Maximum coi temp allowed | Tmax | 150 | ℃ | |
| Weight of coil | WTc | 13 | g | |
| Weight of magnet steel | WTE | 56 | g | |
| Weight of Actuator | WTa | 69 | g | |
Applications:
1.Precision automation systems
2.Micro positioning stages
3.Electronics assembly equipment
4.Semiconductor inspection systems
| The main application of a voice coil motor: | ||||||||||||
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. | ||||||||||||
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry | ||||||||||||
| injection system. | ||||||||||||
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. | ||||||||||||
| 4.Vibration System:Shaking table, vibration platform. | ||||||||||||
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. | ||||||||||||
| 6.Aviation Technology:Flight control system, pilot feedback system. | ||||||||||||
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. | ||||||||||||
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
