6.8mm High Precision Ultra Thin Flat Voice Coil Motor For Medical Surgical
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000,CE |
| Model Number | VCAP Series |
| Minimum Order Quantity | ≥1 |
| Price | $107-$300 |
| Packaging Details | Carton Packaging etc |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Interview |
Product Details
| Operating Temperature | Wide | Product Name | Linear Voice Coil Actuator |
|---|---|---|---|
| Stroke Length | 6.8mm | Size | Compact |
| Type | Flat Type Voice Coil Motor | Positioning Accuracy | High |
| Product Model | VCAP0020-0068-00A | Voltage | 8.2V |
| Peak Force | 20N | Protect Feature | Totally Enclosed |
Product Description
Product Description:

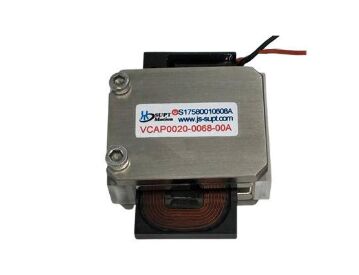

SUPT’s VCAP0020-0068-00A is an ultra-compact, ultra-thin flat voice coil motor designed specifically for medical devices, portable instruments, and micro-electro-mechanical systems (MEMS). Housed in an ultra-compact enclosure measuring just 39 × 50 × 21.5 mm, it delivers a peak thrust of 20 N, a continuous thrust of 5.5 N, and a stroke of 6.8 mm. With a thickness of just 21.5 mm, this flat voice coil motor is ideal for space-constrained applications such as minimally invasive surgical instruments, portable diagnostic devices, micro-pumps, and precision wearable mechanical devices. Manufactured using biocompatible materials and high-precision components, it delivers smooth, quiet, and stable motion with zero backlash and excellent repeatability. The flat voice coil motor has a maximum operating voltage of 8.2V and features low power consumption, low heat generation, and a long service life. With a back-EMF constant of 4.4 V/m/s, it supports precise and responsive motion control. This model of the flat voice coil motor is widely trusted in medical robotics, portable optical equipment, microvalve control, precision drug delivery systems, and small consumer electronics, making it the ultimate solution for micro-precision motion in ultra-thin designs.
Features:
- Linear Voice Actuation System,medical voice coil motor, ultra thin actuator, micro surgical equipment motor
- Voice Coil Actuation Mechanism
- 8.2V Voltage Input
- 6.8mm Stroke Length
- Long Lifetime
- High Force
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0020-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
VCAP0020-0068-00A:
| Parameter | value | Parameter | value |
| Model | VCAP0020-0068-00A | Peak thrust | 20N |
| Continuous Thrust (25°C) | 5.5N | Total stroke | 6.8mm |
| Maximum Voltage | 8.2V | Back-EMF constant | 4.4V/m/s |
| Length | 39mm | Width | 50mm |
| Height | 21.5mm | Weight | 2.9kg |
Applications:
Typical Applications:
1. Consumer Electronics: Autofocus and optical image stabilization (OIS) for smartphone cameras, enabling high-frequency reciprocating motion within ultra-compact spaces; some periscope lenses also utilize flat VCMs.
2. Semiconductor Equipment: Precision XY-axis motion platforms, probe stations, and chip bonding machines, requiring short-stroke, high-speed operation with low vibration.
3. Precision Measurement / Optics: High-speed mirrors, vibration stages, and laser scanning, requiring high-frequency response and high-precision positioning.
4. Medical Devices: Minimally invasive surgical robots and micro-valve actuators, balancing compact size with rapid response.
