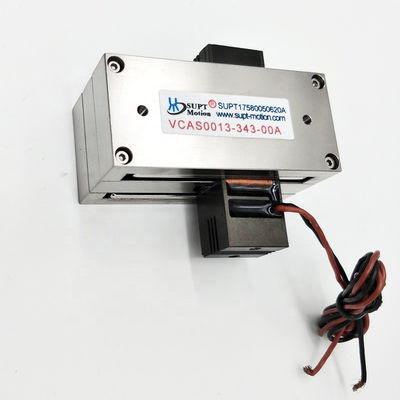

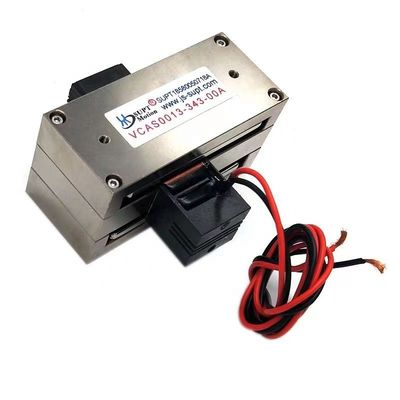

Long Travel 74.7mm Rectilinear Voice Coil Actuator For Semiconductor Handling
Product Details
| Protect Feature | Totally Enclosed | Model Number | VCAS0002-0747-00A |
|---|---|---|---|
| Control Method | Electronic | Total Stroke | 74.7mm |
| Construction | Permanent Magnet | Peak Force | 2.1N |
| Size | 100.5×42.6×37 Mm | Keywords | Voice Coil Linear Motors |
| Voltage | 11.3V | Weight Of The Coil | 15g |
| Speed | High Speed (rpm) |
Product Description
Product Description:
The SUPT MOTION VCAS0002-0747-00A linear voice coil actuator maintains a compact rectangular profile while featuring a lightweight voice coil, short response time, and high frequency. It features a stroke of 74.7 mm. With a peak thrust of 2.1 N and a continuous thrust of 1.3 N, this actuator is optimized for long-stroke, low-friction positioning applications in pick-and-place, semiconductor wafer handling, and precision measurement fixtures.
The moving-coil design eliminates magnetic attraction, resulting in extremely smooth motion without cogging effects.
In semiconductor inspection, long-stroke linear actuators are required to scan large chips or drive probes across wafers. The VCAS0002-0747-00A can directly replace air cylinders or lead screws, offering higher reliability and supporting closed-loop operation with linear encoders.
Rectangular linear voice coil motors are commonly used to construct X-Y motion platforms. They can also be designed in a modular configuration and customized to specific requirements. Its rectangular cross-section design allows for side-by-side mounting of XY stages without significantly increasing overall height. The actuator generates no magnetic interference within the working area, making it suitable for sensitive electron beam or optical instruments.
For OEMs requiring a simple, robust linear motor to achieve long-stroke, light-load positioning, the VCAS0002-0747-00A reduces design time while improving motion quality.
Features:
-
Peak Force: 2.1 N
-
Continuous Force @25℃: 1.3 N
-
Total Stroke: 74.7 mm
-
Max Voltage: 11.3 V
-
Back EMF Constant: 1.3 V/m/s
-
Coil Weight: 15 g
-
Dimensions (L×W×H): 100.5×42.6×37 mm
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |
| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
VCAS0002-0747-00A:
| Parameter | value | Parameter | value |
| Model | VCAS0002-0747-00A | Peak thrust | 2.1N |
| Continuous Thrust (25°C) | 1.3N | Total stroke | 74.7mm |
| Maximum Voltage | 11.3V | Back-EMF constant | 1.3V/m/s |
| Length | 100.5mm | Width | 42.6mm |
| Height | 37mm | Coil Weight | 15g |
Applications:
1.Semiconductor wafer probing
2.Precision pick-and-place
3.Long-strain gauge testing
4.Micro-assembly positioning
5.Scanning measurement systems
| The main application of a voice coil motor: | ||||||||||
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. | ||||||||||
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. | ||||||||||
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. | ||||||||||
| 4.Vibration System:Shaking table, vibration platform. | ||||||||||
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. | ||||||||||
| 6.Aviation Technology:Flight control system, pilot feedback system. | ||||||||||
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. | ||||||||||
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
