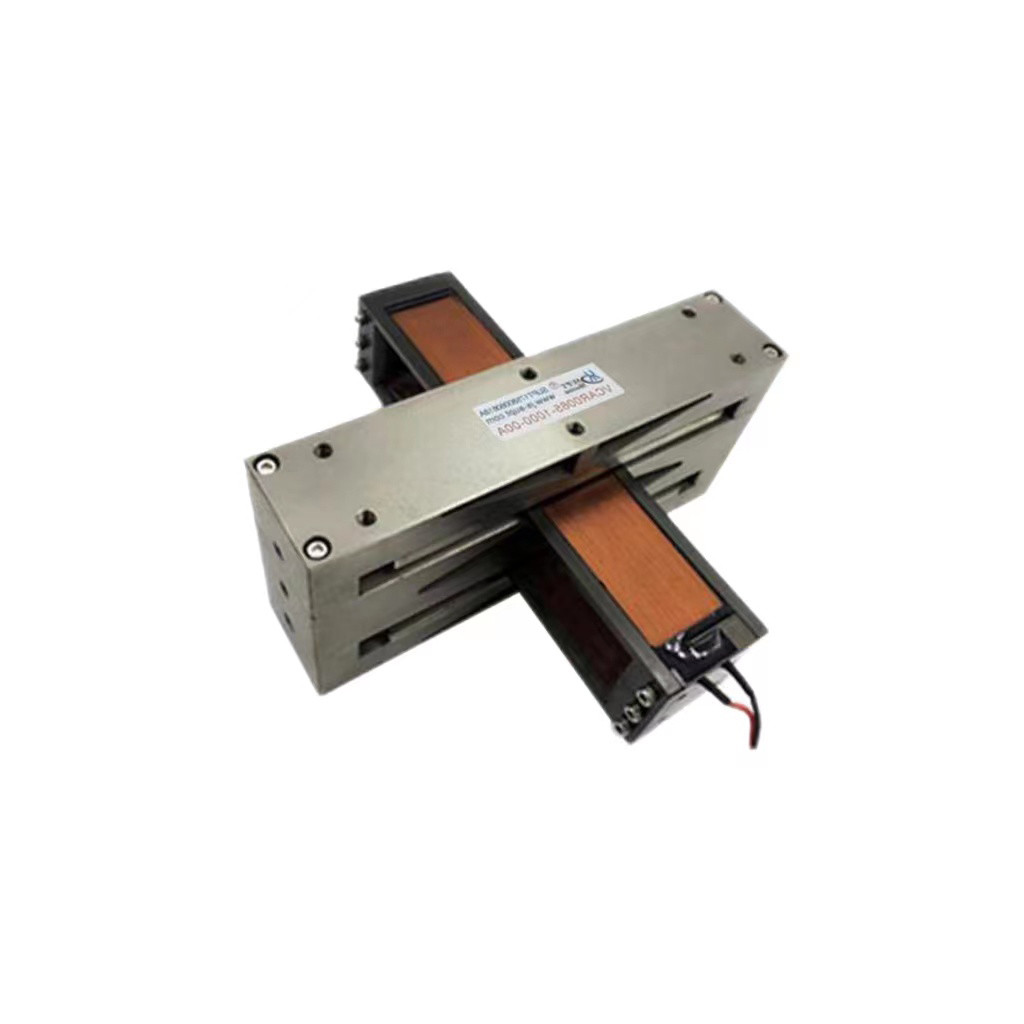

10mm Stroke 6.1N Rectangular Linear Servo For Pick And Place Heads
Product Details
| Protect Feature | Totally Enclosed | Model Number | VCAS0006-0099-00A |
|---|---|---|---|
| Control Method | Electronic | Total Stroke | 10mm |
| Construction | Permanent Magnet | Peak Force | 6.1N |
| Size | 33.5×34.1×26.9 Mm | Keywords | Voice Coil Linear Motors |
| Voltage | 13.3V | Weight Of The Coil | 18.2g |
| Speed | High Speed (rpm) |
Product Description
Product Description:
The VCAS0006-0099-00A is a 10-mm-stroke rectangular voice coil motor that achieves an excellent balance between thrust and stroke. With a peak thrust of 6.1 N and a continuous thrust of 3.2 N, this rectangular linear voice coil motor is ideal for pick-and-place heads, high-speed sorting, and small-part transport systems.
Measuring just 33.5 mm in length, this rectangular linear voice coil motor can be installed in compact multi-head assembly machines. The 18.2 g moving coil mass ensures high acceleration during short-stroke motion, thereby enhancing production efficiency. The maximum voltage of 13.7 V simplifies the drive electronics, while the back-EMF of 4.6 V/m/s provides predictable speed control.
Unlike rotary motors that use cam or link mechanisms, the VCAS series generates direct linear thrust, reducing mechanical complexity and minimizing points of failure. Its rectangular design is specifically tailored for XY stages, where minimizing height is critical but longer strokes than those of cylinders are required.
In the field of electronics assembly, surface-mount device (SMD) pick-and-place heads require vertical motion that is both gentle and fast. This actuator can be used as a Z-axis lifter or a nozzle shifter. Since voice coil motors have no friction or backlash, the repeatability of part placement is significantly improved.
Features:
-
Peak Force:6.1 N
-
Continuous Force @25℃: 3.2N
-
Total Stroke: 10mm
-
Max Voltage: 13.3 V
-
Back EMF Constant: 4.6 V/m/s
-
Coil Weight: 18.2 g
-
Dimensions (L×W×H): 33.5×34.1×26.9 mm
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |

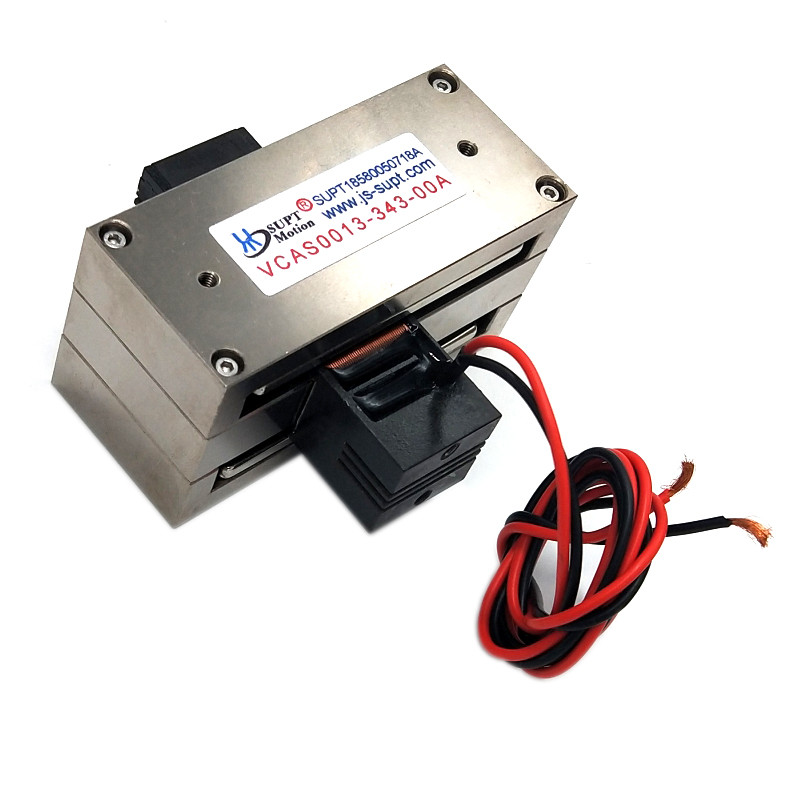

| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
VCAS0006-0099-00A:
| Parameter | value | Parameter | value |
| Model | VCAS0006-0099-00A | Peak thrust | 6.1N |
| Continuous Thrust (25°C) | 3.2N | Total stroke | 10mm |
| Maximum Voltage | 13.7V | Back-EMF constant | 4.6V/m/s |
| Length | 33.5mm | Width | 34mm |
| Height | 26.9mm | Coil Weight | 18.2g |
Applications:
1.Pick-and-place nozzle actuators
2.High-speed sorting modules
3.Small-part transfer
4.Dispensing needle positioning
5.Test probe actuation
| The main application of a voice coil motor: | ||||||||||
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. | ||||||||||
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. | ||||||||||
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. | ||||||||||
| 4.Vibration System:Shaking table, vibration platform. | ||||||||||
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. | ||||||||||
| 6.Aviation Technology:Flight control system, pilot feedback system. | ||||||||||
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. | ||||||||||
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
