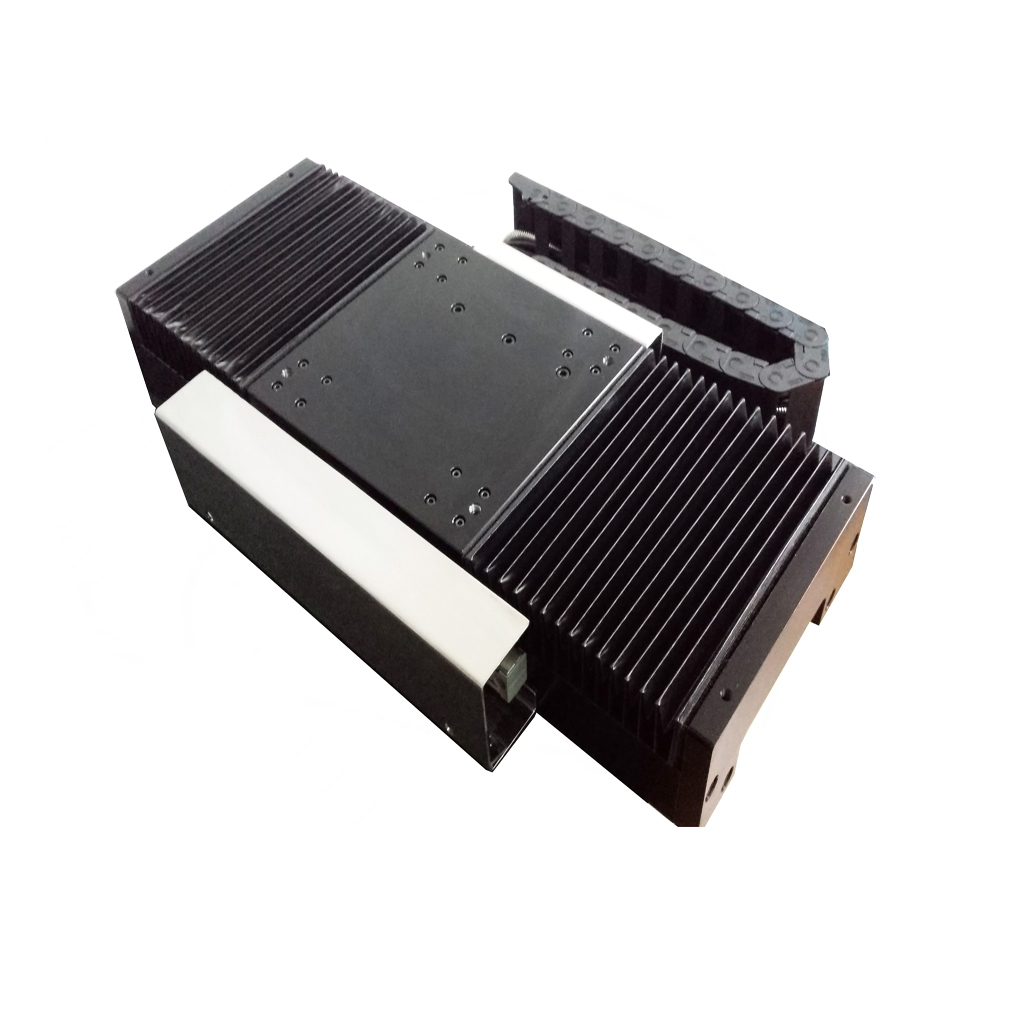

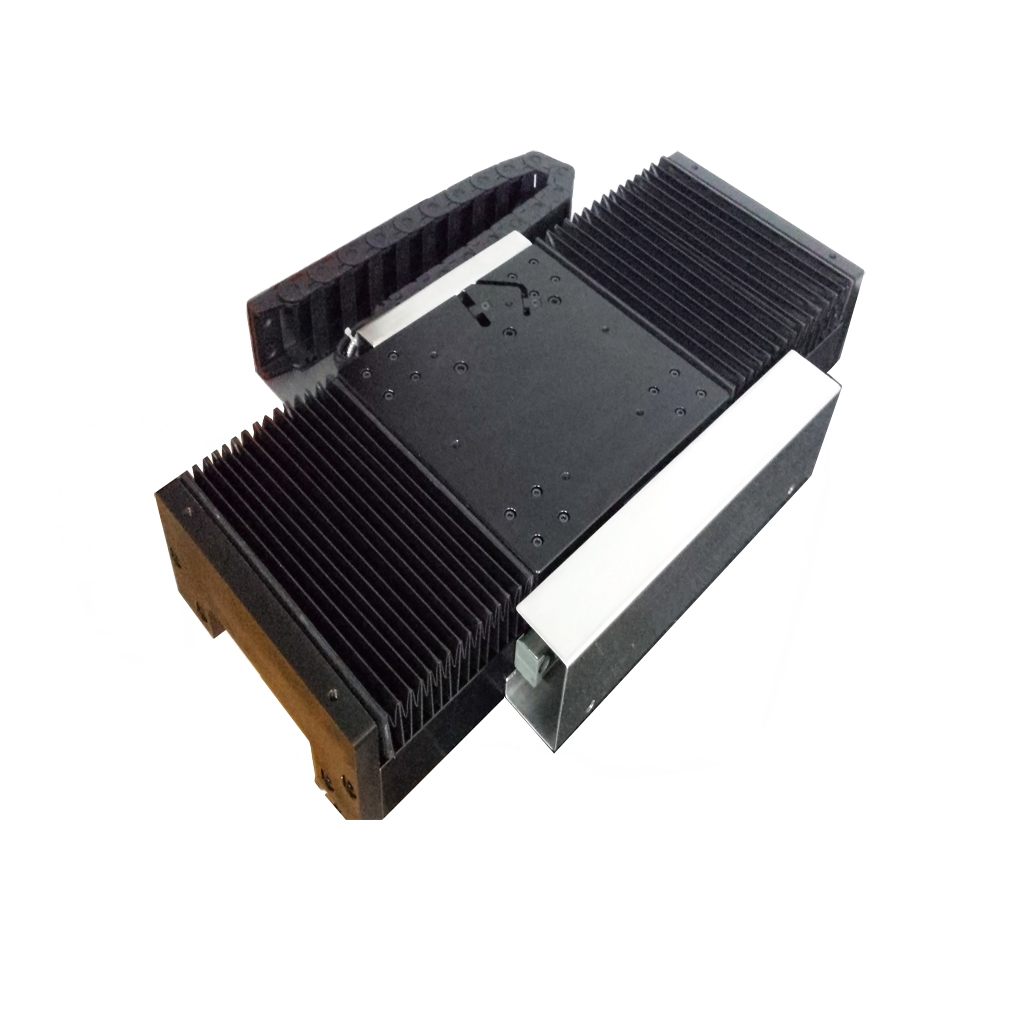

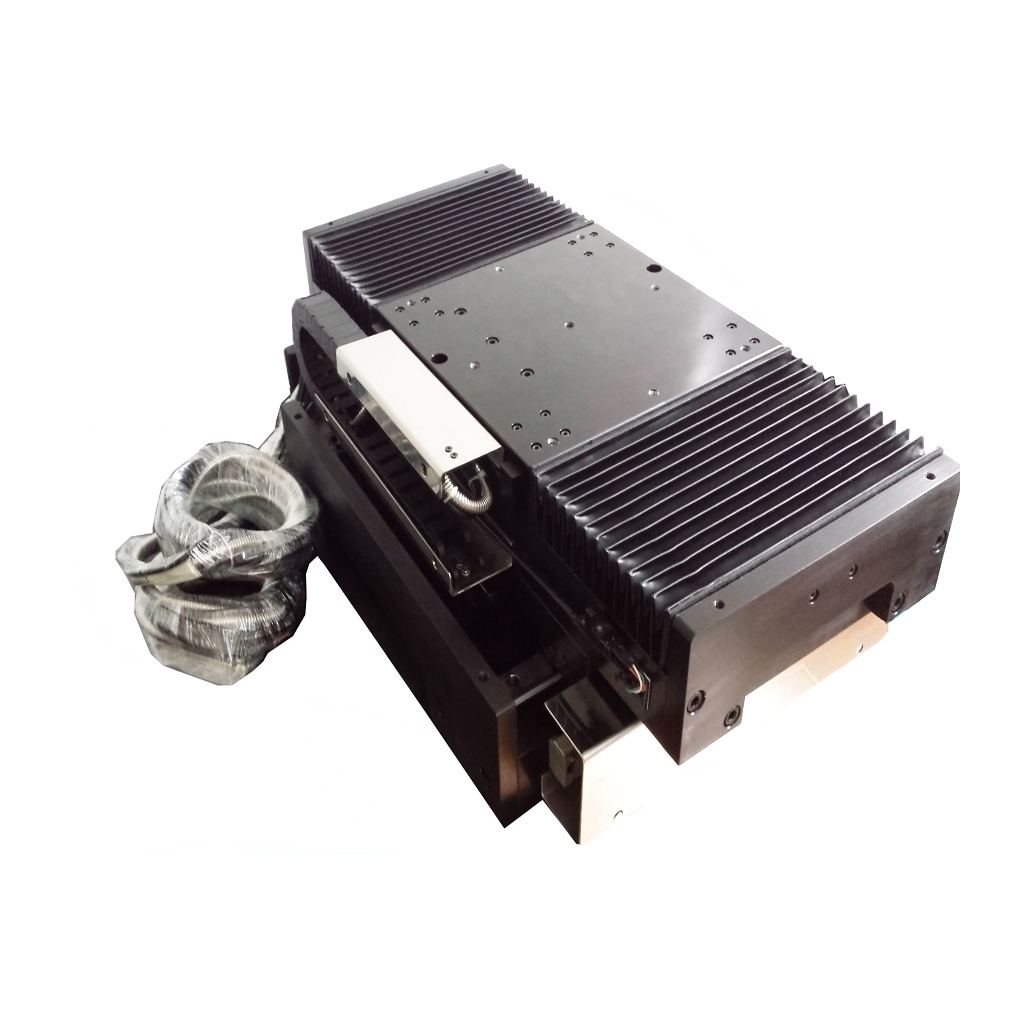

High Thrust U Shaped Linear Motor Modules with Customizable Stroke Lengths
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001-2000 |
| Model Number | MLCA-0040-135-00 |
| Minimum Order Quantity | 1 Piece |
| Price | USD 100-200 / Piece |
| Packaging Details | Export-grade carton with anti-static foam protection |
| Delivery Time | 3-5 working days for samples, 15-25 days for bulk |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Peak Torque | 120 N | Motor Type | Linear Motor Modules |
|---|---|---|---|
| Back EMF Constant | 17.6 V/m/s | Peak current(lp) | 4.2 A |
| Coil Weight | 0.42 Kg | Resistance(L-L)(R) | 9.4 Ω |
| Continuous Torque At 25 C | 40 N | Material | Aluminum Alloy |
| Product Model | MLCA-0040-135-00 |
Product Description
Product Overview
The SUPT MOTION MLCA-0040-135-00 is a U-shaped linear motor armature designed to be compatible with the MLFA series stator (magnetic rail). It features a peak thrust of 120 N, a continuous thrust of 40 N, a pole pitch of 30 mm, and an armature weight of 0.42 kg. When used in conjunction with a linear encoder, it enables high-precision position control.
Linear motors offer significant advantages, including high acceleration, smooth thrust characteristics, modular design, freely extendable stroke, quiet operation, and maintenance-free performance.
The U-shaped linear motor employs a core-less design, eliminating magnetic attraction and cogging effects to achieve smooth motion with zero backlash. The stator magnetic rails can be connected indefinitely, making the stroke theoretically unlimited; this makes it particularly suitable for applications requiring long-stroke, high-speed positioning. Compared to lead screw drives, linear motors do not require intermediate conversion mechanisms, simplifying the system structure and improving dynamic response bandwidth.
Product Advantages
Modular Design: Independent selection of moving and stationary components for flexible configuration
Unlimited Stroke Extension: Extendable stationary components to accommodate any stroke requirement
Maintenance-Free Operation: Contactless drive with no mechanical wear
High Acceleration: High thrust enables high dynamic response
Quiet Operation: No gear or lead screw noise
Keywords: U-shaped linear motor, linear motor module, modular linear motor, long-stroke linear platform, high-thrust linear motor
Specifications
| Parameter | Value |
| Peak Thrust | 120 N |
| Continuous Thrust | 40 N |
| Peak Current | 4.2 A |
| Continuous Current | 1.4 A |
| Thrust Constant | 30.4 N/A |
| Back-EMF Constant | 17.6 V/m/s |
| Pole Pitch | 30 mm |
| Mover Mass | 0.42 kg |
| Linear motor performance parameters | ||||
| A Series--MLCA(Dynamic) MLFA(Stator) | ||||
| Model/Par | MLCA-0020-075-00 | MLCA-0040-135-00 | MLCA-0080-255-00 | |
| Peak force(Fp) | N | 60 | 120 | 240 |
| Peak current(lp) | Amps | 4.8 | 4.2 | 4.2 |
| Continuous force(Fc) | N | 20 | 40 | 80 |
| Continuous current(lc) | Amps | 1.6 | 1.4 | 1.4 |
| Actuator constants(DC motor conversion/3p)(Ka) | N/W | 5.65 | 7.9 | 11.2 |
| Constant Thrust(L-L)(Kf) | N/Amps | 15.3 | 30.4 | 60.3 |
| Back EMF constant(L-L)(Kb) | V/m/sec | 8.8 | 17.6 | 34.8 |
| Electrical constant(Te) | ms | 0.3 | 0.3 | 0.3 |
| Resistance(L-L)(R) | @25℃Ω | 4.8 | 9.4 | 19.2 |
| Inductance(L-L)(l) | mh | 1.51 | 3 | 6 |
| Heat transfer coefficient(Rth) | ℃/W | *3.9 | *1.9 | **1.3 |
| Coil maximum temperature(Tmax) | ℃ | 120 | 120 | 120 |
| Magnet Pole pitch(2T) | mm | 30 | 30 | 30 |
| Mover weight | Kg | 0.24 | 0.42 | 0.82 |
Application
Semiconductor Wafer Transfer Platforms
Flat-Panel Display (FPD) Inspection Equipment
Surface-Mount Technology (SMT) Production Lines for Electronic Components
XY Stages for Laser Cutting and Engraving
Logistics Sorting and Material Handling Systems
Customization Notes: This product supports customization of stroke length, thrust ratings, and guide rail configurations, and can be integrated with optical encoders or Hall effect sensors as needed.
