VCAZ0010 Fast Response Micro Vibrating Feeder Voice Coil Motor High Precision

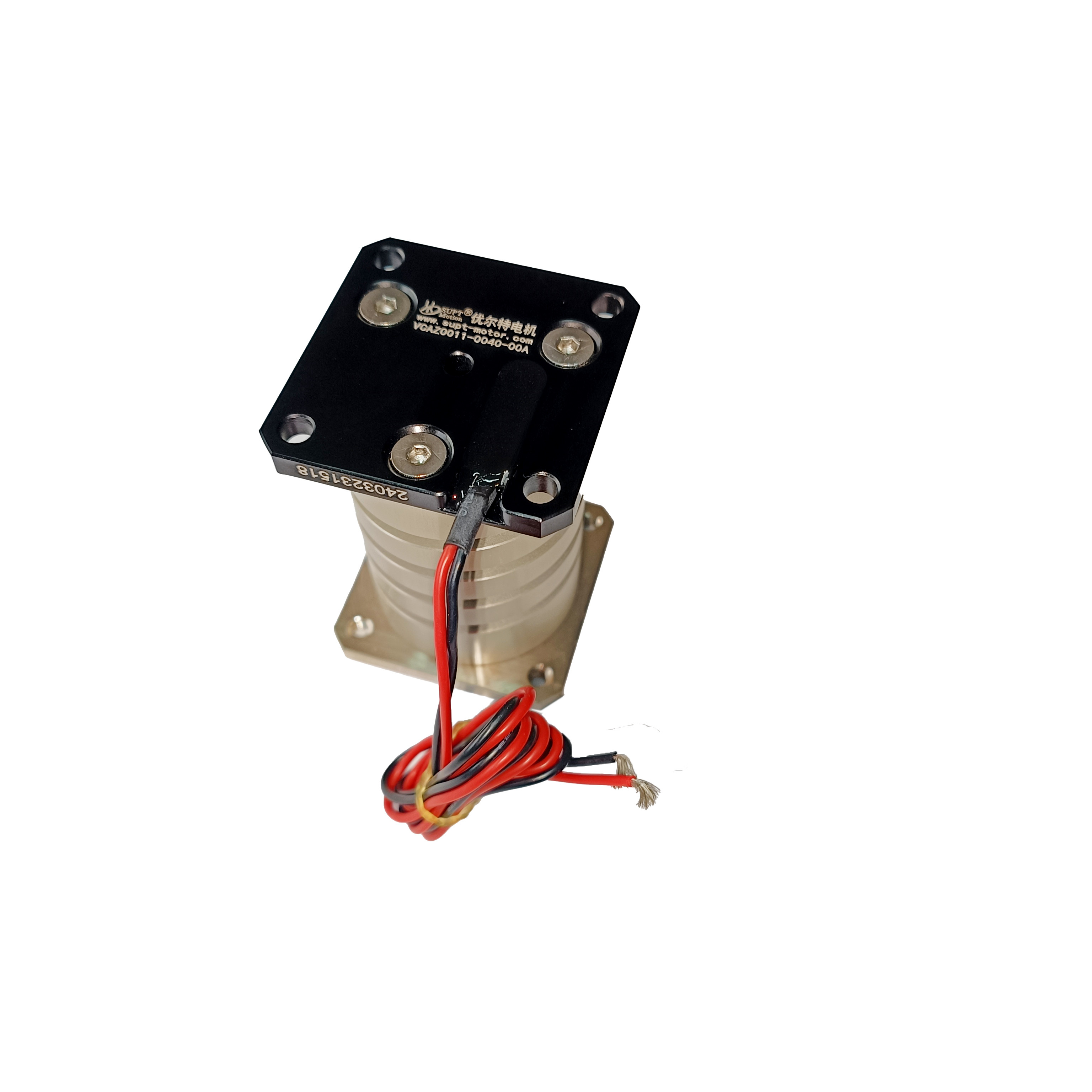

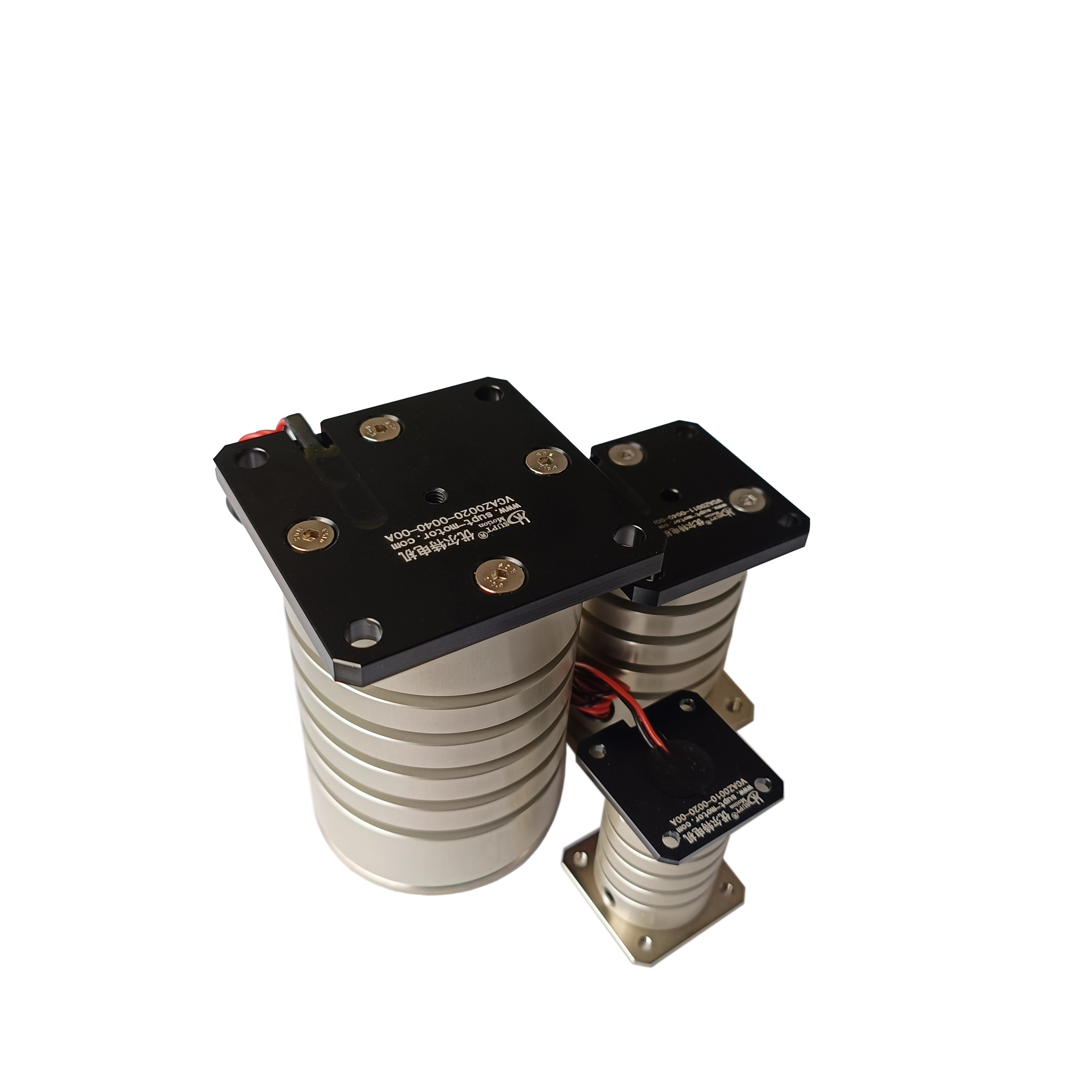

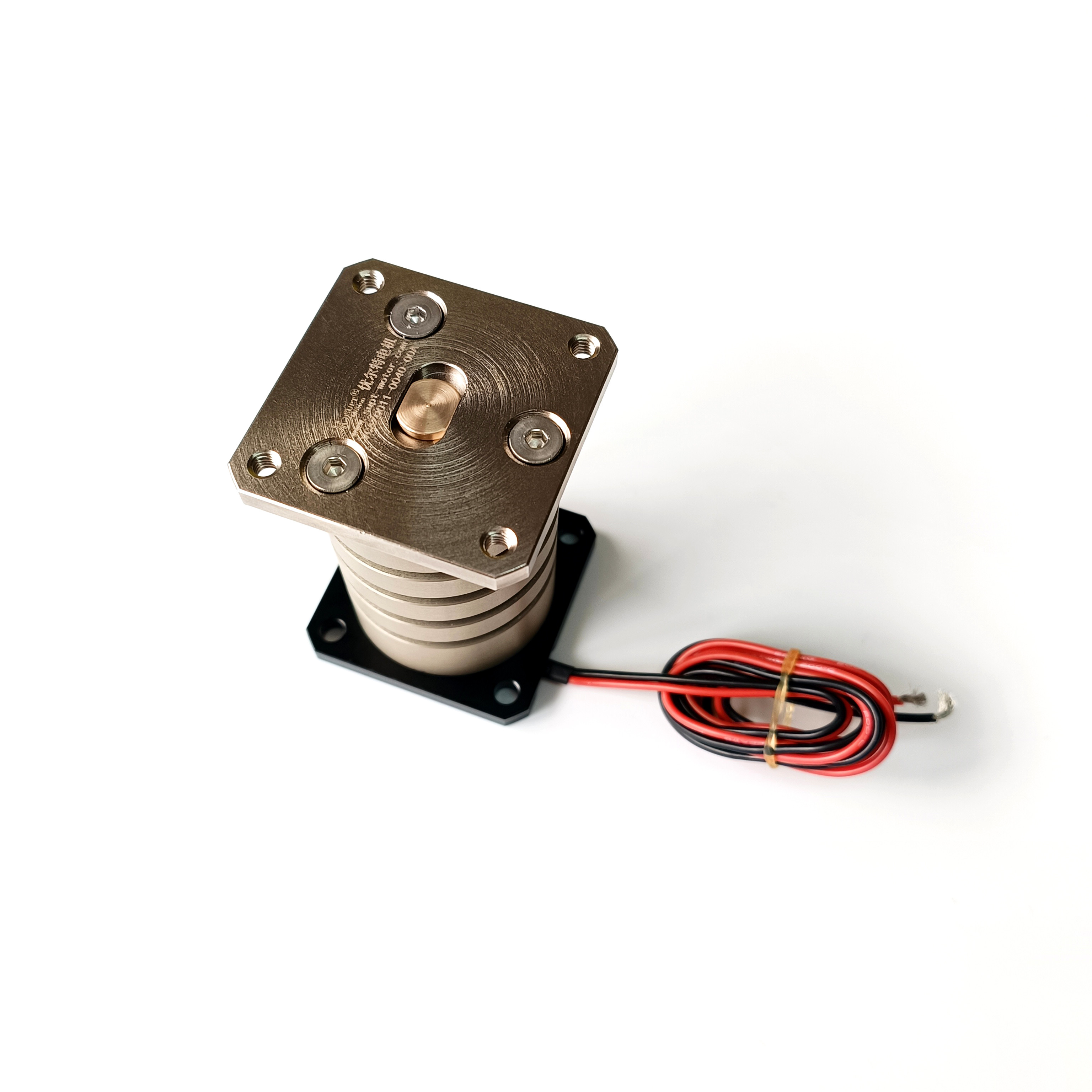

The VCAZ0010-0020-00A fast response micro vibrating feeder voice coil motor is purpose-built for high-speed SMT and 3C electronics assembly lines that feed tiny components such as 0402 and 0201 chip resistors, connectors and micro-shields. By replacing the traditional vibratory bowl with a directly driven voice coil stage, the feeder reaches its target amplitude in a fraction of the time taken by spring-based vibration motors, which translates into faster indexing and shorter takt time. The actuator is compact, light at just 69 g, and produces a crisp 1.5 mm linear stroke with a 4.2 N peak force, so miniature parts are transported with high precision and minimal scatter.

In high-mix SMT production, changeover speed and component integrity decide line throughput. The VCAZ0010 addresses both by allowing the drive electronics to adjust vibration frequency and amplitude instantly, so a single feeder can handle several component families without mechanical tuning. Fast response motion reduces the settling time between cycles, improving placement accuracy and reducing double-picks and flipped parts. An integrated backlight option supports machine vision alignment, letting the camera confirm each part's position before the nozzle picks it up. Because the actuator is quiet and low in electromagnetic interference, it can be mounted close to sensitive inspection equipment without disturbing measurements, and its brushless voice coil construction avoids the carbon dust and wear that shorten the life of conventional micro vibration motors.

• Fast response force control for shorter indexing and takt times
• High precision feeding of 0402 and 0201 micro components
• Adjustable frequency and amplitude through integrated drive electronics
• Low electromagnetic interference for use beside vision metrology
• Brushless, dust-free construction with long service life
• Small 69 g footprint fits dense SMT feed modules

The feeder is designed for electronics manufacturers that demand speed and precision on the same platform.

• SMT feeder for 0402 and 0201 chip components
• 3C electronics micro-connector feeding
• Micro-shield and lens module assembly
• Vision-guided pick and place feeders
• Semiconductor handling micro-stages

SUPT MOTION offers customized stroke, thrust and mounting options together with matched servo drive electronics, enabling fast design-in for new SMT platforms. Pre-production samples support feeder qualification, and technical support is available throughout integration and ramp-up. Every actuator is functionally tested before dispatch and delivered with a standard warranty. Each unit is packed in anti-static shockproof foam and an export-grade carton, with drive modules available as an optional bundle. Samples typically ship in 3-5 days, stock items in 5-7 days, and bulk orders to a negotiated schedule.

Q1: How fast is the response compared with a spring vibration motor?
The direct-drive voice coil design builds force instantly from current, so it reaches target amplitude far faster than spring-based feeders.

Q2: Can it feed very small 0201 components without flipping?
Yes. The short 1.5 mm stroke and precise force control minimize bounce and reduce flipped or double-fed parts.

Q3: What supply voltage does the feeder need?
The rated peak voltage at peak force is 14.8 V with a 1.6 A peak current.

Q4: Does it produce carbon dust?
No. The brushless voice coil construction is dust-free, which protects sensitive electronics.

Q5: Is a vision backlight available?
Yes. An integrated adjustable backlight can be supplied for machine vision alignment.
