VCAZ0020 High Precision Vibrating Feeder Voice Coil Motor Fast Response

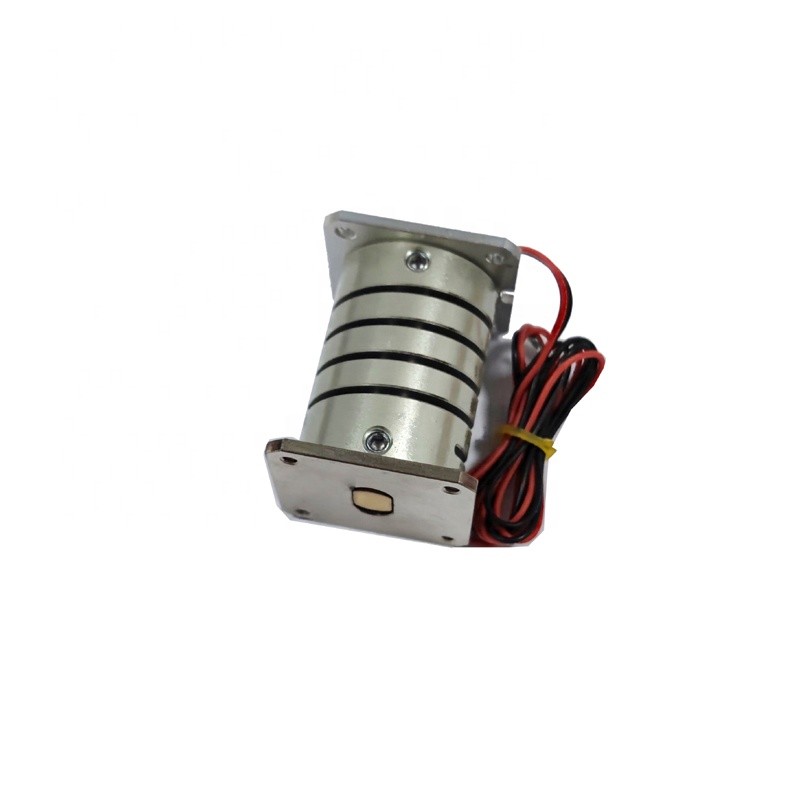

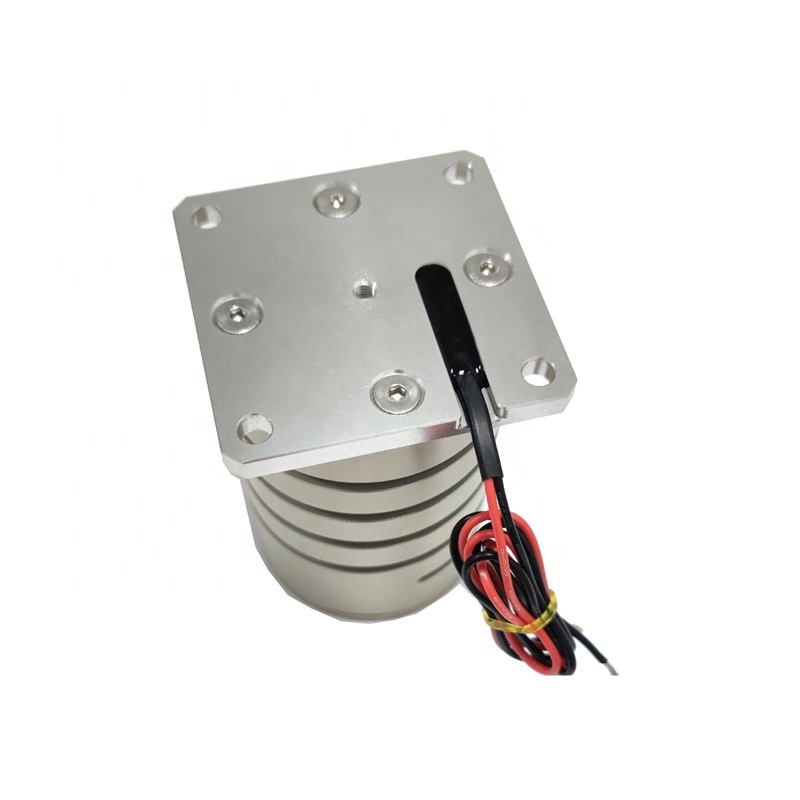

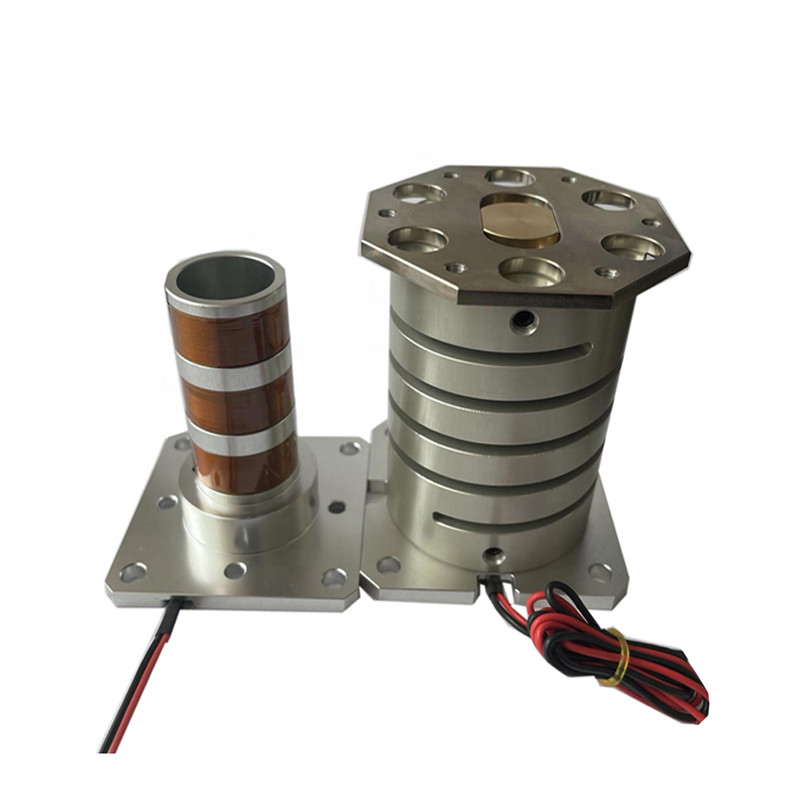

The VCAZ0020-0040-00A high precision vibrating feeder voice coil motor is a larger, higher-thrust member of the SUPT MOTION VCAZ series, designed for automotive connector and hardware feeding where orientation accuracy is critical. With a 20.5 N peak force, an 8.9 N continuous stall force and a 3 mm stroke, it drives heavier parts smoothly while keeping positioning tight enough for automated assembly. The direct-drive voice coil architecture removes the backlash and wear associated with gear or cam feeders, so every cycle repeats the same precise motion, and the response remains fast enough to keep pace with medium-to-high speed assembly cells.

Automotive wiring harness and connector assembly demands complete and correctly oriented parts at a steady rate. Traditional vibratory feeders struggle with long connectors that tangle or rotate unpredictably. The VCAZ0020 overcomes this by combining fast response force control with programmable forward, reverse, disperse and converge motions, so connectors can be untangled, aligned and presented to the pick head in the correct attitude. The higher thrust handles heavier parts without stalling, while the integrated adjustable backlight and vision compatibility enable automatic orientation checks before assembly. Engineers appreciate the wide 25.9 V operating window and 65.3 W peak power, which give ample headroom for aggressive feed rates without overheating, and the robust 150 °C winding rating keeps the actuator stable in continuous production. The outcome is fewer mis-picks, higher first-pass yield and more reliable connector feeding for safety-critical automotive lines.

• High precision motion with zero backlash direct-drive architecture
• 20.5 N peak force for heavier connectors and hardware
• Fast response and programmable orienting motions
• Adjustable backlight supports automated vision orientation
• Wide 25.9 V operating window with 65.3 W peak power
• Robust 150 °C winding rating for continuous duty

The actuator serves assembly lines where correct part orientation directly affects product quality and safety, including connector lines that must meet strict cleanliness and repeatability standards.

• Automotive wiring connector orientation feeding
• Terminal and pin header sorting
• Fastener and hardware feeding for assembly cells
• High precision vision-guided feeding stations
• Medical connector assembly lines

SUPT MOTION provides application engineering for custom stroke ranges, thrust profiles and fixture designs to match existing feeder tooling. Matched drive amplifiers and configuration support shorten commissioning, and sample actuators are available for line trials. Each unit is individually tested and delivered with a standard warranty. Actuators are protected in anti-static shockproof foam and packed in export-grade cartons for safe international shipping. Sample lead time is 3-5 days, stock units 5-7 days, and bulk production schedules are agreed at order confirmation.

Q1: What force can this high precision feeder deliver?
The VCAZ0020-0040-00A provides a 20.5 N peak force and 8.9 N continuous stall force.

Q2: Can it untangle long automotive connectors?
Yes. Programmable forward, reverse, disperse and converge motions allow parts to be separated and aligned automatically.

Q3: What is the working stroke?
The total stroke is 3 mm, which suits medium-sized connectors and hardware.

Q4: Is the frequency adjustable during production?
Yes. Both frequency and amplitude are program-controlled through the drive electronics.

Q5: What is the operating voltage?
The rated peak voltage at peak force is 25.9 V with a 2.6 A peak current.
