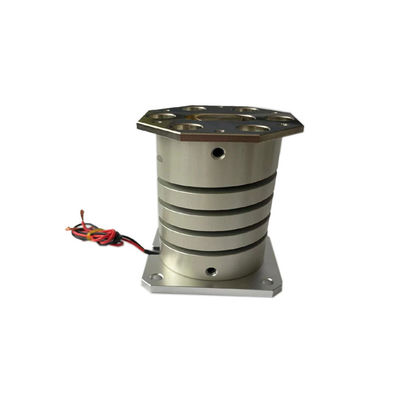

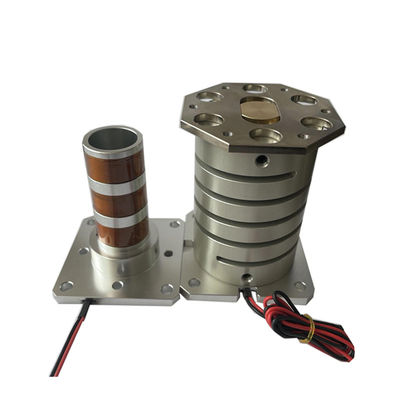

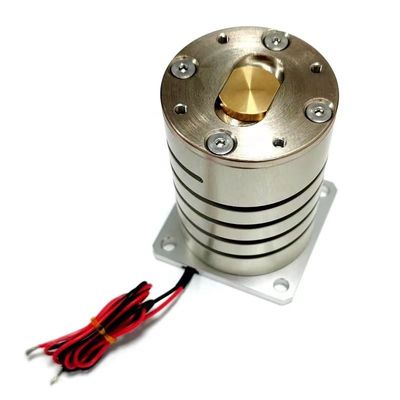

VCAZ0020 Flexible Vibrating Feeder Voice Coil Motor Fast Response Micro Size
| Place of Origin | Suzhou, Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001, CE |
| Model Number | VCAZ0020-0040-00A |
| Minimum Order Quantity | 1 Piece |
| Price | USD 110-320 / Piece |
| Packaging Details | Anti-static shockproof foam with export-grade corrugated carton |
| Delivery Time | 3-5 days for samples, 5-7 days for stock, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Pieces per Month |
Product Details
| Model Number | VCAZ0020-0040-00A | Motor Type | Flexible Micro Vibrating Feeder Motor |
|---|---|---|---|
| Peak Force | 20.5 N | Continuous Stall Force | 8.9 N |
| Total Stroke | 3 Mm | DC Resistance | 10.2 Ohm |
| Voltage @ Fp | 25.9 V | Current @ Fp | 2.6 A |
| Inductance | 1.3 MH | Power @ Fp | 65.3 W |
| Actuator Weight | 110 G | Service Life | >=100 Million Cycles |
| Highlight | Micro Vibrating Feeder Actuator,Flexible Voice Coil Motor,Battery Cell Feeding Motor |
||
Product Description
Product Overview
The VCAZ0020-0040-00A flexible vibrating hopper voice coil motor brings tiny, programmable vibrations to lithium battery cell sorting and small new energy component handling. Based on the VCAZ series direct-drive platform, it offers a 3mm stroke and a peak force of 20.5 Newtons, while staying compact and lightweight—enough to fit into sorting equipment with limited space. Because the amplitude and frequency are electronically controlled rather than mechanically, the vibrating voice coil motor hopper can adapt to various automated industrial devices without needing hardware changes, cutting down changeover time and keeping the production line running during product switches.
Solution
Battery manufacturing often involves quick changes between different battery formats, but mechanical feeders adjust slowly and can easily damage delicate battery surfaces. The VCAZ0020 tackles this problem with a flexible feeding mechanism. Its vibration coil motor amplitude can be controlled via software, so operators can slow down the vibrations for thin foils and battery shells, or increase the amplitude for heavier batteries, all with just a tap on the screen. The fast-responding force control allows the feeder to start and stop precisely, enabling visual inspection and sorting alignment before the battery enters the module assembly station. With adjustable backlighting and machine vision compatibility, this actuator provides a reliable, low-maintenance feeding front end for lithium battery and new energy production lines.
Key Features
- Micro size actuator fits inside compact sorting machines
- Flexible feeding mechanism with program-controlled amplitude
- Fast response start and stop for precise cell alignment
- Gentle handling protects delicate battery cell surfaces
- Vision compatible with integrated adjustable backlight
- Dust-free, low-maintenance design for clean production
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Model Number | VCAZ0020-0040-00A | - |
| Peak Force (Fp) | 20.5 | N |
| Continuous Stall Force (Fc) | 8.9 | N |
| Total Stroke (S) | 3 | mm |
| DC Resistance (R) | 10.2 | Ω |
| Voltage @ Fp (Vp) | 25.9 | V |
| Current @ Fp (Ip) | 2.6 | A |
| Inductance (L) | 1.3 | mH |
| Power @ Fp (Pp) | 65.3 | W |
| Max Winding Temp (Tmax) | 150 | °C |
| Actuator Weight (WTa) | 110 | g |
| Response Frequency | Adjustable | - |
| Stroke Range | Custom | - |
| Service Life | ≥100 million cycles | - |
Application
This feeder is engineered for new energy producers that need flexible, damage-free handling of small-format cells.
- Lithium battery cell sorting and grading
- Cylindrical and prismatic cell feeding
- New energy component handling and alignment
- Vision-guided battery inspection stations
- Small-format module assembly feeding
Customization and Support
SUPT MOTION supports new energy equipment builders with custom stroke and thrust ranges, matched drive electronics and mechanical integration advice. Sample actuators are available for line qualification, and dedicated application engineers assist with vision and control tuning. All units are tested prior to shipment and covered by a standard warranty. Motors are shipped in anti-static shockproof foam within export-grade cartons to protect them in transit. Samples usually ship in 3-5 days, stock in 5-7 days, and bulk orders follow a negotiated delivery schedule.
FAQ
Q1: Why choose a voice coil feeder for battery cells?
The program-controlled amplitude allows gentle handling of delicate cells and quick changeover between formats.
Q2: What is the peak force and stroke?
The VCAZ0020-0040-00A delivers a 20.5 N peak force with a 3 mm total stroke.
Q3: Can the feeder run continuously in production?
Yes. The winding is rated to 150 °C and the actuator is designed for continuous duty with a life of at least 100 million cycles.
Q4: Is it compatible with vision systems?
Yes. An adjustable backlight and vision-system integration allow automatic cell position feedback.
Q5: Do you offer custom stroke ranges?
Yes. Both the stroke range and thrust range can be customized to match your equipment.
