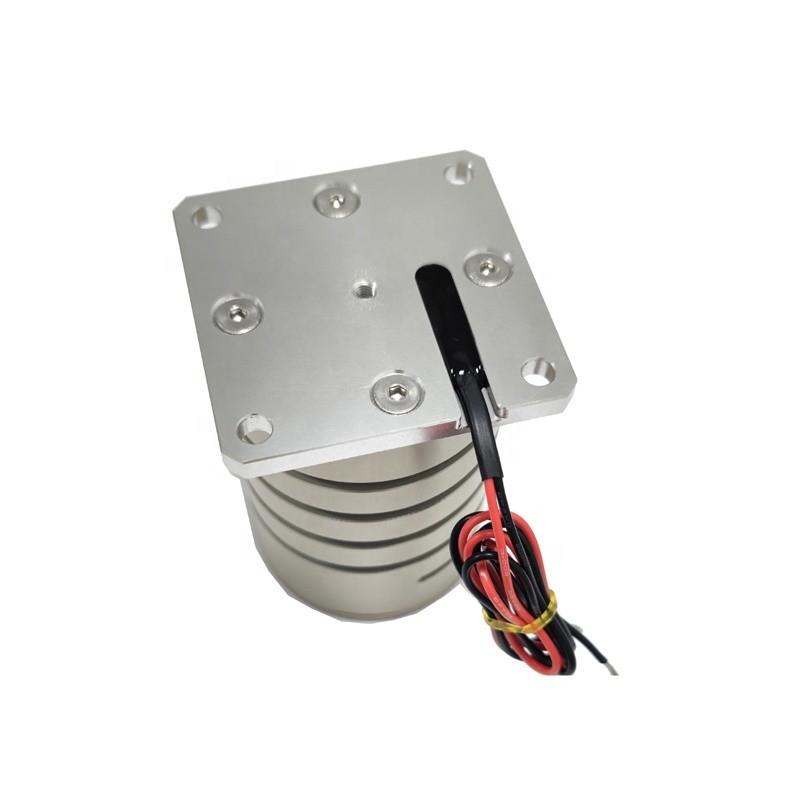

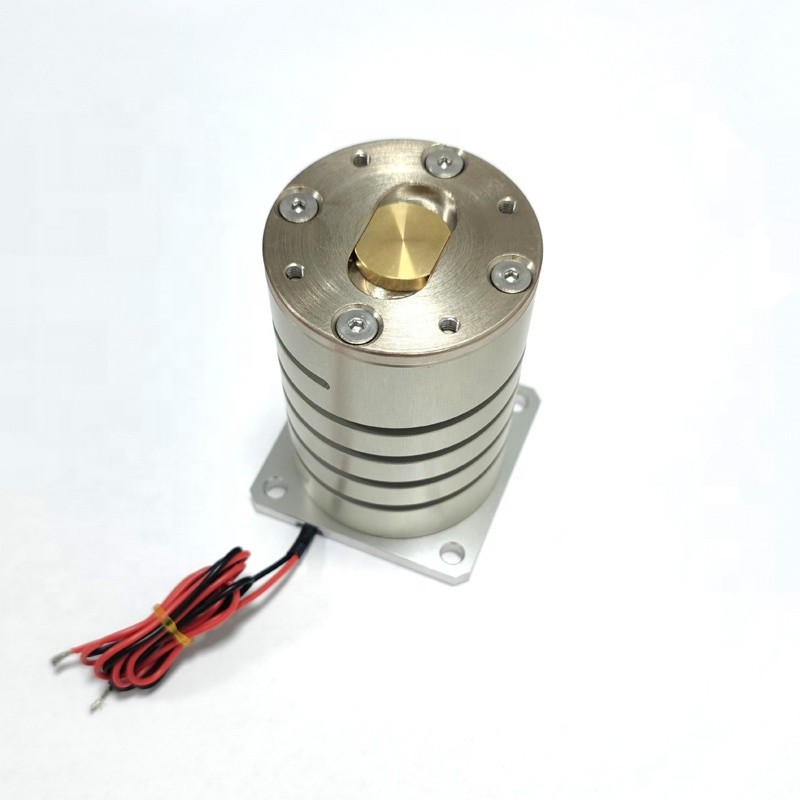

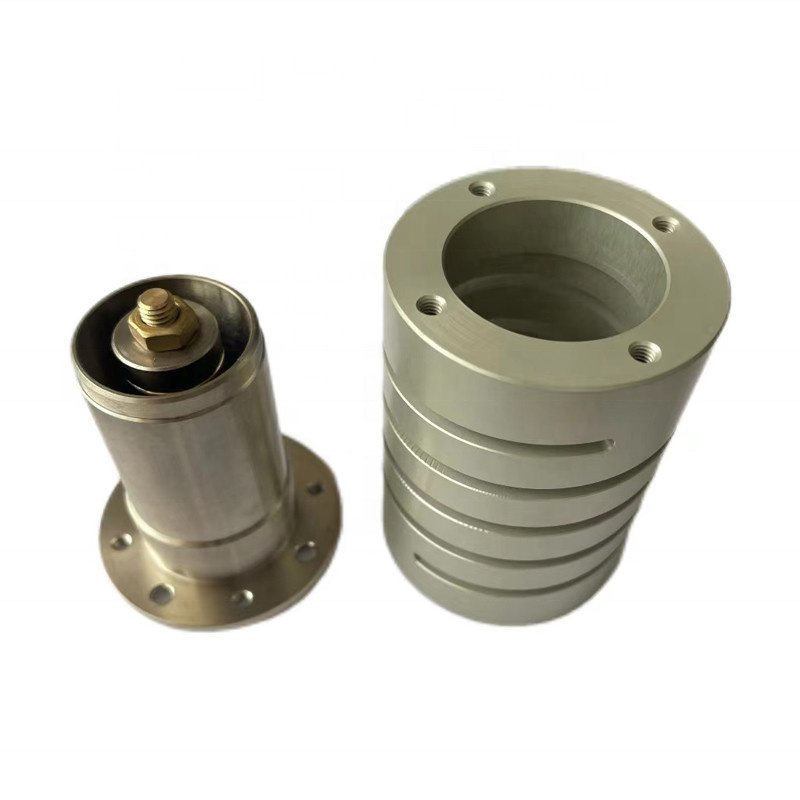

VCAZ0020 Three Axis Flexible Vibrating Tray Voice Coil Motor High Acceleration

The VCAZ0020-0040-00A multi directional flexible vibrating tray voice coil motor is the driving heart of a modern flexible feeding platform. Instead of a single rigid vibratory bowl, the system mounts several voice coil actuators along the X, Y and Z axes so the flexible tray can move parts in every direction and even flip them over. Powered by SUPT MOTION's VCAZ series direct-drive actuator with a 20.5 N peak force and 3 mm stroke, the platform disperses irregular-shaped precision parts across the surface with high acceleration, and each axis can be tuned separately for the exact motion a workpiece needs.

Irregular and asymmetric parts are the hardest to feed because they nest, overlap and jam on conventional vibratory bowls. The multi directional flexible vibrating tray solves this by combining horizontal X and Y actuators with a vertical Z actuator, so parts can be spread, separated, rotated and flipped without any rigid collision with the tray. Because the coil is driven directly by current, response is fast and acceleration is high, and the amplitude and frequency on every axis are precisely controllable through the drive electronics. Integrated with an adjustable backlight and a machine vision camera, the tray lets the robot locate each part and pick it in the correct orientation, turning a difficult feeding problem into a smooth, repeatable process that adapts to almost any workpiece simply by loading a new drive program.

• X, Y and Z voice coil actuators enable multi directional part motion
• Direct-drive design gives fast response and high acceleration
• Independently adjustable amplitude and frequency on each axis
• Flexible tray material avoids rigid collisions and part damage
• Vision camera positioning readies parts for robot picking
• New drive programs adapt the tray to almost any workpiece

The platform suits any line that must orient awkward, non-symmetric parts automatically before assembly.

• Irregular-shaped precision parts orientation feeding
• Multi direction flexible feeding platforms
• Vision-guided robot pick and place cells
• Small hardware and die-cast component sorting
• Automotive and electronics mixed-part feeding

SUPT MOTION assists integrators in sizing each axis, choosing tray materials and tuning the multi axis drive program for the specific workpiece. Matched drive electronics simplify commissioning, samples are available for line trials, and each actuator is tested before shipment and covered by a standard warranty. Units ship in anti-static shockproof foam within export-grade cartons to protect them in transit, with samples typically ready in 3-5 days.
