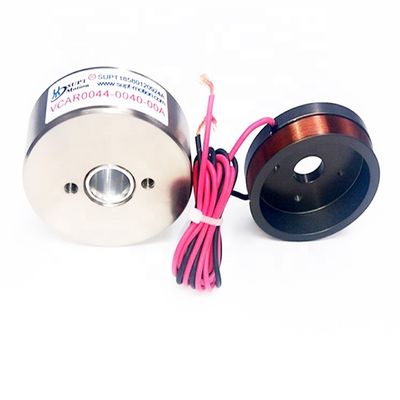

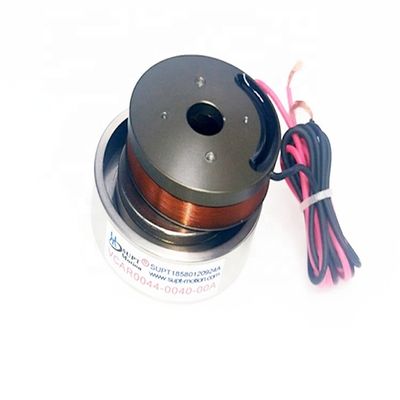

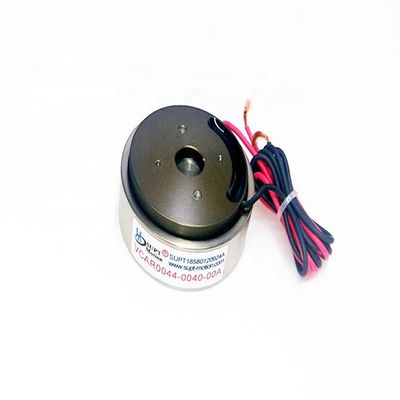

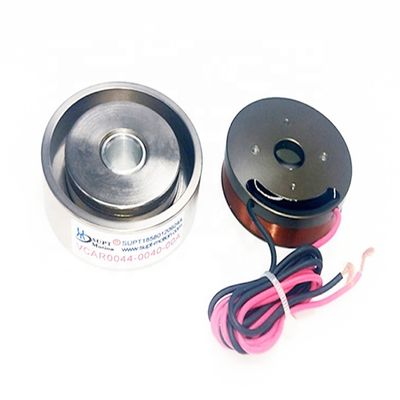

Low Resolution VCM Voice Coil Motor Cylindrical Voice Coil Motor With Robot Arm
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | CCC, ce, ISO9001 |
| Model Number | VCAR0044-0040-00A |
| Minimum Order Quantity | ≥1 |
| Price | $100.00/pieces 1-29 pieces |
| Packaging Details | Carton packing |
| Delivery Time | General 5-7 days delivery, fast 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 4.9A | Efficiency | IE 1 |
| Peak Force(N) | 44 | Maximum Travel(mm) | 4 |
| Voice Coil (V) | 18.3 | Weight Rotor(kg) | 45 |
| Stator Dia(mm) | 53 | Continuous Force(N) | 16.3 |
| Highlight | Low Resolution VCM Voice Coil Motor,VCM Voice Coil Motor Cylindrical,Cylindrical Voice Coil Motor With Robot Arm |
||
Product Description
Cylindrical Voice Coil Motor With Robot Arm Low Resolution High-Speed
Product Description
The cylindrical voice coil motor (VCM) with a robot arm is a compact and efficient solution for precise motion control. This voice coil motor offers low resolution but high-speed capabilities, making it an ideal choice for various applications.
With its small size, the cylindrical VCM can be easily integrated into tight spaces, making it suitable for use in robotic arms. The low-noise operation ensures quiet and smooth performance, allowing the robot arm to work efficiently without disturbing its environment.
The cylindrical VCM utilizes a coil of wire suspended within a magnetic field to generate motion. When current flows through the voice coil, it creates a magnetic field that interacts with the fixed magnetic field, producing linear motion. This mechanism enables the robot arm to move with high accuracy and responsiveness.
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | .6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Applications:
The utilization of a cylindrical voice coil motor (VCM) in a robot arm is a smart choice due to its unique characteristics. The VCM, known for its low resolution but high-speed capabilities, plays a crucial role in achieving precise motion control for the robot arm.
The VCM consists of a coil of wire suspended within a magnetic field. When an electric current passes through the voice coil, it generates a magnetic field that interacts with the fixed magnetic field. This interaction results in linear motion, allowing the robot arm to move with accuracy and responsiveness.
The compact size of the cylindrical VCM makes it suitable for integration within robot arms that require limited space. Additionally, the low noise output of the VCM ensures quiet and smooth performance, enabling the robot arm to operate efficiently without causing disturbances in its surroundings.
