High Torque Rotary Voice Coil Motor Mini Electromagnetic Motor For Flight Controller
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VARS0077-020-00A |
| Minimum Order Quantity | ≥1 |
| Price | $220.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box voice coil motor |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 3000 Piece/Pieces per Month voice coil motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Robot, Medical Respirator, Microscope, Optics, Optical Lens |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Fast |
| Continuous Current(A) | 3.5 | Efficiency | IE 1 |
| Peak Torque(N-m) | 0.77 | Maximum Travel(mm) | 20 |
| Voice Coil Motor (V) | 6.7 | Continous Torque(N-m) | 0.63 |
| Back EMF Constant(L-L)(Kb) | 0.24 | Coil Weight(g) | 66 |
| Length(mm) | 75 | Width(mm) | 50 |
| Height(mm) | 30 | Port | Shanghai Voice Coil Motor |
| Highlight | High Torque Rotary Voice Coil Motor,Rotary Voice Coil Motor Mini 3.5A,Mini Electromagnetic Motor 3.5A |
||
Product Description
High Torque Electromagnetic Mini Voice Coil Motor For Flight Controller
Product Description
The application of rotary voice coil motors in flight controllers is noteworthy. These motors offer precise rotational control crucial for flight stabilization and navigation. They are utilized in various aspects of aviation, enhancing aircraft performance and safety.
Key applications include:
1. Aircraft Control Surfaces: Rotary voice coil motors drive control surfaces like ailerons, elevators, and rudders. By generating controlled torque, these motors enable precise adjustments to aircraft attitude, aiding in maneuverability and stability.
2. Gimbal Systems: In stabilized platforms and camera gimbals, these motors facilitate smooth and accurate rotation. They enable real-time adjustments to camera angles for aerial photography, surveillance, and monitoring.
3. Throttle Control: Rotary motors can regulate throttle settings in aircraft engines, ensuring precise power delivery and efficient fuel consumption for optimal flight performance.
4. Rotor Blade Adjustment: Helicopter rotor blades' pitch adjustments, critical for lift control and stability, are achieved using these motors. They maintain equilibrium during flight, enhancing helicopter maneuvering.
5. Navigation Systems: Rotary voice coil motors contribute to adjusting directional antennas and radar systems. Accurate rotation assists in maintaining proper communication and navigation signals.
6. Flight Simulators: In pilot training simulators, these motors replicate real aircraft controls, offering realistic flight experiences for trainees.
7. Stabilization Systems: Rotary motors aid in dynamic stabilization systems that counteract turbulence and maintain aircraft stability during flight.
Their high precision, rapid response, and ability to deliver controlled rotational motion make rotary voice coil motors indispensable in flight control systems. They contribute to aviation safety, efficiency, and the overall performance of aircraft.
Technical Parameters:

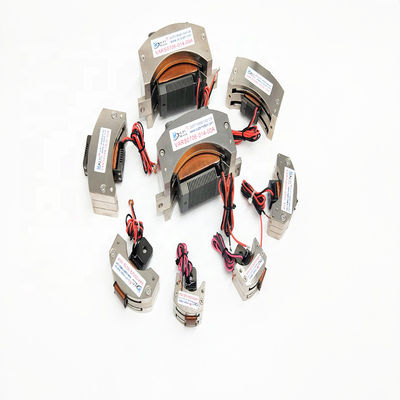

| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |

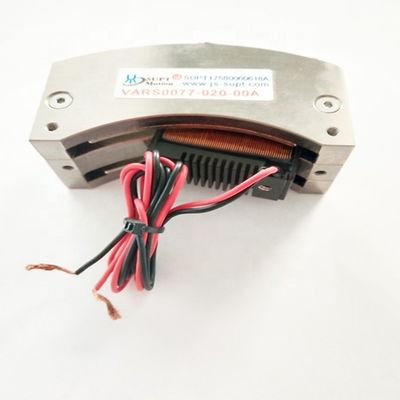

| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |

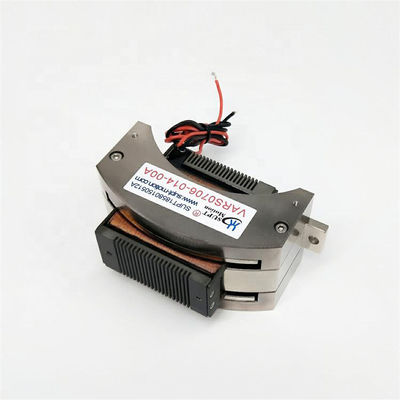

| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution
limited angle positioning system.Typical stroke angles exceed 100 degrees and torques to 50 Nm.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators
rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,
industrial and aerospace industries.
