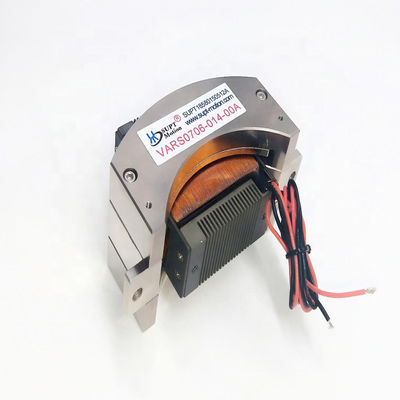

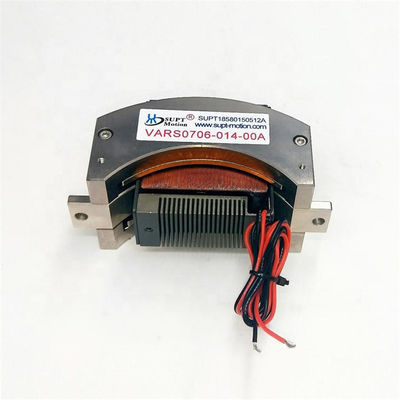

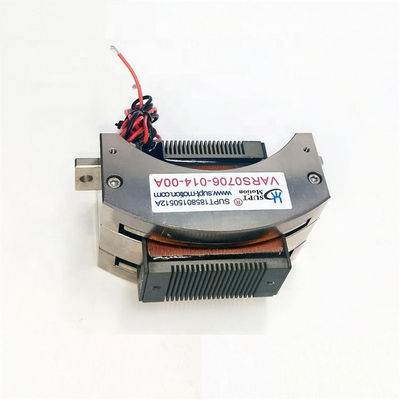

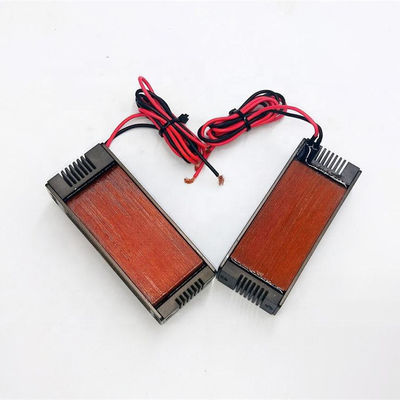

High Motorized Rotary Voice Coil Swing Voice Coil Motor For Detect Linear Displacement
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VARS0706-014-00A |
| Minimum Order Quantity | ≥1 |
| Price | $310.00/pieces >=1 pieces |
| Packaging Details | carton & wooden box swing motor |
| Delivery Time | sample order 2-3 days,other one work days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | 2000 Piece/Pieces per Month swing motor |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Robot, Medical Respirator, Microscope, Optics |
|---|---|---|---|
| Type | Micro Motor | Torque | 30 |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | High Speed |
| Continuous Current(A) | 3.6 | Efficiency | IE 1 |
| Peak Torque(N-m) | 7.1 | Maximum Travel(mm) | 14 |
| Swing Motor(V) | 52.4 | Continous Torque(N-m) | 2.1 |
| Back EMF Constant(L-L)(Kb) | 1.03 | Coil Weight(g) | 220 |
| Length*Height(mm) | 115*54.5 | Width(mm) | 65 |
| Port | Shanghai Swing Motor | ||
| Highlight | High Motorized Rotary Voice Coil CCC,Swing Voice Coil Motor CCC,Rotary Voice Coil Detect Linear Displacement |
||
Product Description
High Motorized Swing Type Voice Coil Motor For Detect Linear Displacement
Product Description
The swinging voice coil motor is also a type of swinging voice coil motor that can measure and control linear displacement, with high maneuverability and accuracy.
This motor system combines the motion characteristics of a swinging voice coil motor and the ability to measure linear displacement to achieve precise position control and measurement. Its working principle involves the following key points:
1. The swinging voice coil motor has the characteristics of fast response and high acceleration, which can quickly change position and speed. This makes it very effective in applications that require rapid adjustment and positioning, such as industrial automation and precision instruments.
2. Linear displacement measurement: This motor system is also equipped with a linear displacement sensor, usually an optical encoder or linear displacement sensor. These sensors can accurately measure the linear displacement of the motor, that is, the swing angle is converted into linear displacement.
3. Closed loop control: Combined with the measurement data of the linear displacement sensor, the system can achieve closed-loop control. This means that the actual position of the motor will be compared with the expected position and adjusted based on feedback information to achieve precise position control.
4. Application Area: This motor system is suitable for various applications that require high-precision linear displacement control and measurement. For example, in fields such as precision machining, laser cutting, and optical scanning, high-precision linear displacement needs to be completed in a short period of time.
5. High precision application: Due to the combination of the fast response of voice coil motors and the accuracy of linear displacement measurement, this motor system is suitable for application scenarios with high displacement accuracy requirements.
Technical Parameters:
| VARS Series of Swing type voice coil motor | ||||||||
| Model | Peak torque(N-M) | Continuous torque25℃(N-M) | Maximum travel(mm) | Voltage(V) | Back EMF constant(V/m/S) | Coil weight(g) | Width*height (mm) | Length(mm) |
| VARS0008-026-00A | 0.080 | 0.045 | 26.0 | 6.4 | 0.045 | 11.7 | 39.8*26.1 | 35.00 |
| VARS0017-090-00A | 0.170 | 0.110 | 90.0 | 11.1 | 0.11 | 18.0 | 44*39 | 70.00 |
| VARS0022-032-00A | 0.220 | 0.120 | 32.0 | 15.5 | 0.16 | 21.5 | 51.5*26 | 60.00 |
| VARS0042-040-00A | 0.420 | 0.380 | 40.0 | 3.5 | 0.12 | 38.0 | 53.6*30.3 | 82.00 |
| VARS0077-020-00A | 0.770 | 0.630 | 20.0 | 6.7 | 0.24 | 66.0 | 50*30 | 75.00 |
| VARS0084-030-00A | 0.840 | 0.600 | 30.0 | 6.3 | 0.2 | 54.2 | 48.9*30.6 | 75.00 |
| VARS0120-020-00A | 1.200 | 1.200 | 20.0 | 8.4 | 0.67 | 65.0 | 73.5*32 | 80.00 |
| VARS0706-014-00A | 7.100 | 2.100 | 14.0 | 52.4 | 1.03 | 220.0 | 65*54.5 | 115.00 |
| VARS4520-030-00A | 45.200 | 19.000 | 30.0 | 71.5 | 4.3 | 1300.0 | 240*78 | 240.00 |
Applications:
The typical torque is 100 degrees and the torque is 50 N · m. Swing type products are typically used in laser technology in the mirror locator, swing type valve brake, swing type positioning system and flight controller, etc. , it relates to semiconductor industry, automation and aircraft industry. Compared with U-type linear motor and flat-type linear motor, it can provide better high-frequency response, high-speed reciprocating linear motion, especially suitable for short-stroke closed-loop servo control system. The control of voice coil linear motor is simple and reliable, no commutating device, long life.
