Zero Backlash Linear Servo Motor Ironless Linear Direct Drive Motor

Zero tooth slot non iron core linear motor is a special type of linear motor, which has some unique functions and applications compared to traditional iron core motors. The following are the functions and functions of a zero tooth slot coreless linear motor:
1.  High speed response: The zero tooth slot coreless linear motor does not have a traditional iron core structure, and its axial magnetic flux path is more direct. Therefore, it has faster magnetic field response ability and can achieve fast and accurate movement.
2.  Non iron loss: Traditional iron core motors generate iron loss during operation, while zero slot non iron core linear motors without iron core structure can avoid the problem of iron loss and improve energy utilization efficiency.
3.  Precision Control: The structural design of the coreless linear motor allows it to achieve high-precision position and speed control, suitable for applications that require precise positioning.
4.  Smooth motion: Due to the absence of an iron core structure, the variation of electromagnetic force is more stable, which can achieve a smooth motion trajectory and reduce vibration and noise.
5.  Low noise: Zero tooth slot coreless linear motors typically have low noise operating characteristics due to avoiding issues such as core vibration and material vibration.
Function:
1. Precision positioning:  Zero tooth slot coreless linear motors can achieve accurate position control in applications that require high-precision positioning, such as semiconductor manufacturing, optical instruments, precision machinery, etc.
2.  High speed motion:  Due to its high-speed response ability, zero tooth slot coreless linear motors are suitable for applications that require fast motion, such as rapid positioning, high-speed scanning, etc.
3. Automation equipment:  Coreless linear motors can be integrated with automation equipment to achieve high-precision and high-speed motion control, improving production efficiency.
4.  Medical Equipment: In the medical field, zero slot non iron core linear motors can be used for precision instruments and equipment, such as medical imaging, surgical robots, etc.


Technical Parameters:

U-type coreless linear motor MLCB series rotor only coil without magnet, no suction between the moving stator, smooth operation without grooving effect.

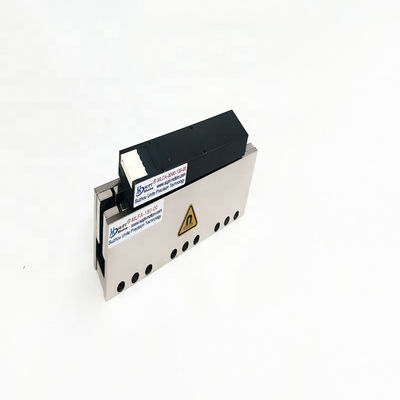

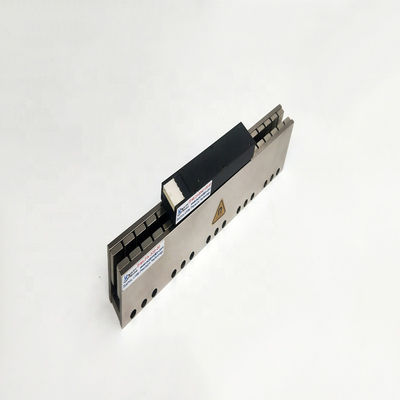

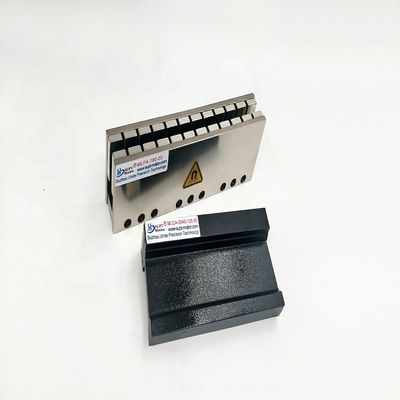

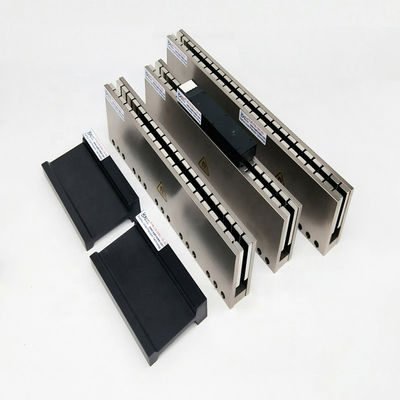

Linear voice coil motor Linear motor has only one coil, no magnet, no suction between the moving stator, zero hysteresis, no slot effect, good force characteristics, smooth operation. Because of the light weight, it can achieve high-speed acceleration, stable thrust characteristics, and high precision can be achieved with the application of grating ruler. The travel can be extended arbitrarily, silently and maintenance-free. This motor is MLCB series, the model is MLCB-0080-135-00, the peak thrust is 240N, the imported epoxy resin high temperature and high pressure vacuum filling, high flexibility power cable. Widely used in semiconductor manufacturing equipment, flat panel display and other industries of precision test equipment laser cutting, laser marking, machine vision test equipment modular design, can be processed and customized.
