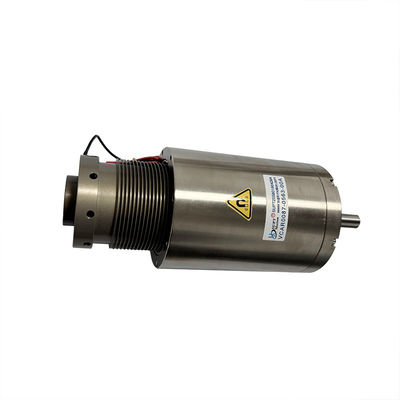

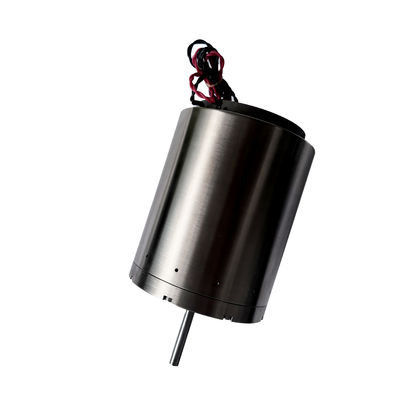

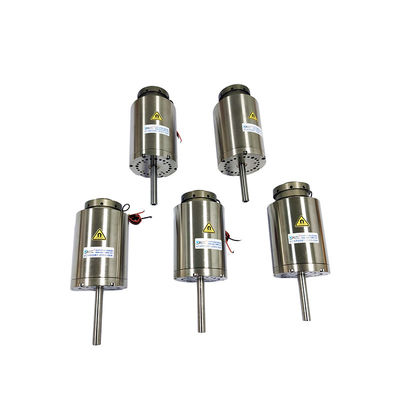

High Frequency Loudness VCAB Series Linear Voice Coil Motors For Precision Inspection Equipment
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VCAB Series |
| Minimum Order Quantity | 2PCS |
| Price | $159 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Product Model | VCAB0087-0563-00A |
|---|---|---|---|
| Weight | 177g | Peak Force (N) | 87 |
| Total Stroke (mm) | 56.3 | Max Voltage （V） | 63.4 |
| Application | Automatic Product | Positioning Accuracy | High |
| Linearity | High | Product Type | Linear Voice Coil Motor |
| Drive Type | Voice Coil |
Product Description
Product Description:
Linear voice coil motors are brushless, direct-drive linear motion actuators that utilize the Lorentz force to achieve precise, fast linear displacement control.
Linear voice coil motors have a lightweight motor coil, short response time and high frequency. Widely used in semiconductor, precision testing and inspection, valve flow control field. Modular design, can be customized.
In precision testing equipment, such as semiconductor testing, precision measuring instruments, microscopic imaging, nano displacement platform and other systems, linear voice coil motors play an important role by virtue of its high dynamic response and high precision control.
Linear voice coil motors are used in optical inspection systems to control the position of detectors or optical elements, and to realize high-precision focusing, focus adjustment, optical path scanning and other operations.
In semiconductor inspection equipment to realize high-speed, precision probe or platform scanning for defect detection, image acquisition.
Linear voice coil motors have a lightweight motor coil, short response time and high frequency. Widely used in semiconductor, precision testing and inspection, valve flow control field. Modular design, can be customized.
In precision testing equipment, such as semiconductor testing, precision measuring instruments, microscopic imaging, nano displacement platform and other systems, linear voice coil motors play an important role by virtue of its high dynamic response and high precision control.
Linear voice coil motors are used in optical inspection systems to control the position of detectors or optical elements, and to realize high-precision focusing, focus adjustment, optical path scanning and other operations.
In semiconductor inspection equipment to realize high-speed, precision probe or platform scanning for defect detection, image acquisition.
Features:
Linear voice coil motors have a built-in motion shaft and precision linear bearings.
The kinematic shaft is made of lightweight, highly rigid and wear-resistant materials of the highest quality.
Main features of linear voice coil motors: direct drive, eliminating backlash and friction errors caused by gears, screws and other transmission mechanisms.
High response speed: response time up to milliseconds or sub-milliseconds, suitable for high-speed scanning and real-time control systems.
High-precision control: nanometer-level positioning accuracy can be realized in closed-loop systems, suitable for ultra-high-precision inspection tasks.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
Main applications of linear voice coil motors:
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Valve field operation: type metering valve, pressure test system, pneumatic valve chemical injection system.
3. Micromechanical industry: feeding systems, micro drilling, precision stamping.
4. Vibration systems: vibration tables, vibration platforms.
5. Medical field: micro-injection systems, respiratory equipment, testing equipment.
6. Aviation technology: flight control systems, pilot feedback systems.
7. Commercial sector: computerized cooling pumps, micro-camera auto-focus systems.
8. Automation industry: laser equipment, dispensers, test equipment, textile machinery.
