High Frequency Response Linear Voice Coil Motor For 3C Electronics Manufacturing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Product Model | VCAB0087-0563-00A |
|---|---|---|---|
| Weight(g) | 177 | Peak Force (N) | 87 |
| Total Stroke (mm) | 56.3 | Max Voltage （V） | 63.4 |
| Application | Automatic Product | Positioning Accuracy | High |
| Product Type | Linear Voice Coil Motor | Commutation | Brush |
| Continuous Force(N) | 17.5N |
Product Description
Product Description:

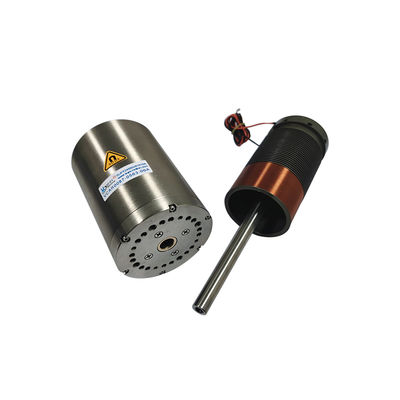

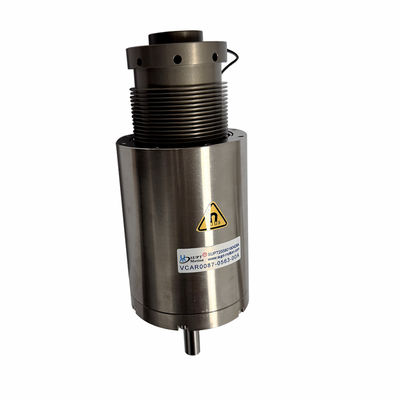

SUPT's shaft-mounted linear voice coil motor comprises a permanent magnet assembly, moving coil, and guide mechanism. This linear voice coil motor incorporates an integrated motion shaft and precision linear bearings, model VCAB0087-0563-00A. Featuring compact bearing and shaft diameters with extended length, it operates as a brushed motor. Its performance advantages include high response speed, high-precision positioning, accurate force control, lightweight design, and low inertia. Linear voice coil motors find extensive applications, commonly used in 3C electronics manufacturing and testing equipment. In 3C electronics manufacturing, SUPT's linear voice coil motors enable precise “linear + rotational” motion during processes like chip packaging, camera module assembly, and component integration. Their high performance allows gentle contact with delicate components using minimal force, ensuring protection against damage.
Features:
Type:Linear Voice Coil Motor, Shaft-Mounted Linear Voice Coil Motor, VCAB Series Linear Motion Actuator.
Speed:High Speed
Product Model:VCAB0087-0563-00A
Main features of linear voice coil motors: direct drive, eliminating backlash and friction errors caused by gears, screws and other transmission mechanisms.
High response speed: response time up to milliseconds or sub-milliseconds, suitable for high-speed scanning and real-time control systems.
High-precision control: nanometer-level positioning accuracy can be realized in closed-loop systems, suitable for ultra-high-precision inspection tasks.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
SUPT MOTION's Shaft-Mounted Linear Voice Coil Motors in Specific Applications for 3C Electronics Manufacturing: Camera module lamination assembly, touchscreen sensitivity and key durability testing, component handling, and PCB board assembly.
1. Shaft-mounted linear voice coil motors feature ultra-long lifespan, stable performance, and high-frequency, high-speed, high-response characteristics. Paired with specific end-effectors, they can simulate authentic finger pressure. Suitable for testing touchscreen functions like tapping, swiping, and long-press on capacitive/resistive screens in smartphones, tablets, and watches, as well as conducting repeated press durability testing for physical buttons like keyboards and phone power buttons. By analyzing feedback force and displacement, they assist in establishing big data quality monitoring models.
2. In PCB assembly, shafted linear voice coil motors enable rapid loading and unloading. During DIP insertion, they facilitate placement of irregularly shaped and large-volume components. By adjusting component orientation prior to insertion to align with PCB holes, they ensure precise placement, preventing misalignment or incorrect hole insertion. Controlled insertion force effectively prevents bent pins or PCB damage.
