Compact Fast Response Linear Voice Coil Actuator For Automation Robotics
Product Details
| Warranty | 3months-1year | Product Model | VCAB0436-0187-00A |
|---|---|---|---|
| Weight(g) | 648 | Peak Force (N) | 436 |
| Total Stroke (mm) | 18.7 | Max Voltage （V） | 40.7 |
| Application | Automatic Product | Positioning Accuracy | High |
| Product Type | Linear Voice Coil Motor | Commutation | Brush |
| Continuous Force(N) | 147.6N | Type | Compact |
| Highlight | compact linear voice coil actuator,fast response voice coil motor,robotics automation linear actuator |
||
Product Description
Product Description:
The Linear Voice Coil Actuator is a direct-drive linear actuator offering fast response, high acceleration, nanometer-level positioning accuracy, zero backlash, and frictionless motion. In automation robotics, Linear Voice Coil Actuator are widely used for precision pick-and-place, compliant assembly, end-effector actuation, force-feedback tasks, and high-speed repetitive motion, making them a critical component in advanced robotic systems.
As industrial robots, collaborative robots (cobots), precision assembly robots, and intelligent inspection robots continue to evolve, linear motion actuators are required to deliver higher accuracy, faster response, stronger dynamic performance, and long-term reliability. Traditional lead screws and geared mechanisms often suffer from backlash, wear, and limited dynamic response.
Linear Voice Coil Actuators, based on direct-drive technology, generate linear force without mechanical transmission, making them an ideal solution for high-performance robotic motion systems.
Features:
- High-Speed and High-Acceleration Motion
- Nanometer-Level Positioning and High Repeatability
- Zero Backlash Direct-Drive Design
- Supports Force Control and Compliant Motion
- Compact Design and Easy Integration
General Specifications (Varies by Model)
- Rated Voltage: 40.7V
- Continuous Force:147.6N
- Peak Force: 436N
- Stroke: 18.7mm
- Frequency Response: ≥ 100 Hz
- Repeatability: ≤1–3 µm
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |

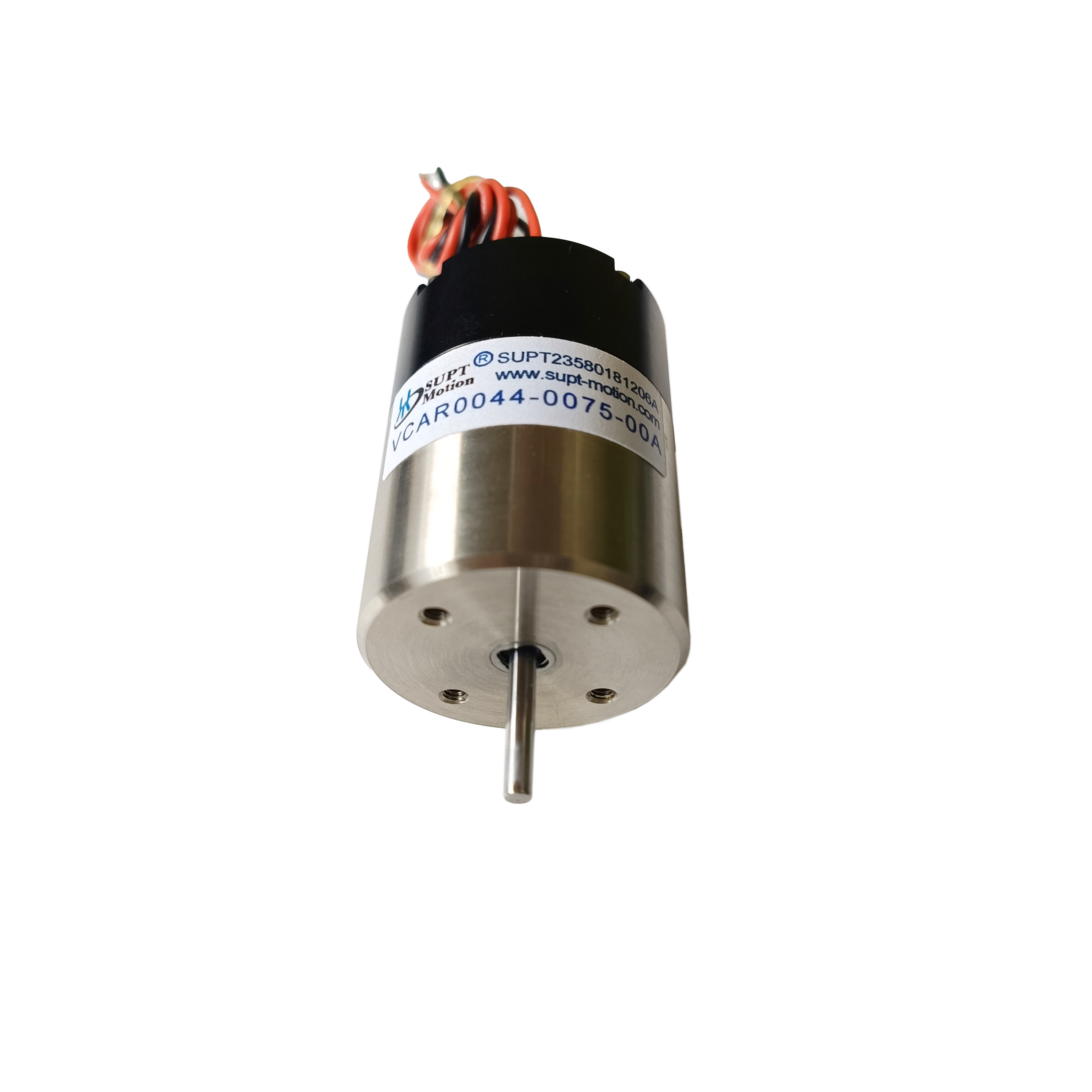

| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
Robotic Precision Pick-and-Place:For high-speed picking, micro-position adjustment, and flexible placement.
End-of-Arm Tooling (EOAT):Achieve gripper stroke control, fine-tuning displacement, and force feedback operation.
Compliant Assembly Robots:Used for high-precision assembly actions such as insertion, pressing, and alignment.
Collaborative Robots:Provides safe, controllable linear drive and flexible contact capabilities.
Vision-Guided Positioning Systems:Used for Z-axis height compensation and focus adjustment.
Automated Inspection and Testing Robots:Supports probe contact, scanning, and repeat positioning actions.
