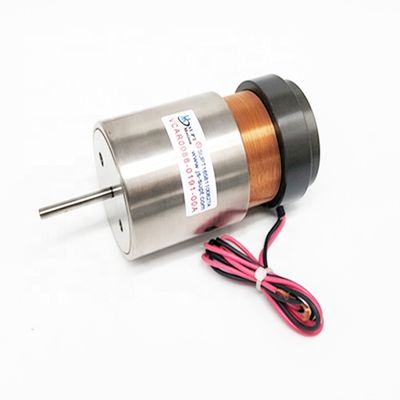

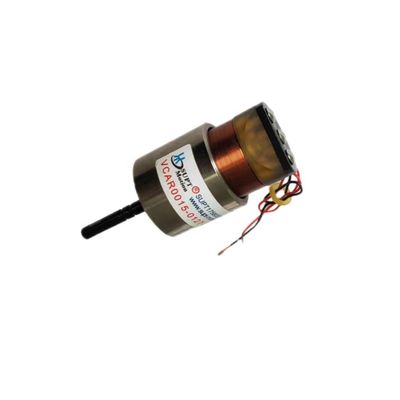

Hiah Performance Linear Voice Coil Actuator For Industrial Automation Precision Tasks
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Product Model | VCAB0105-0164-00A |
|---|---|---|---|
| Weight(g) | 150 | Peak Force (N) | 105 |
| Total Stroke (mm) | 16.4 | Max Voltage （V） | 20 |
| Application | Automatic Product | Positioning Accuracy | High |
| Product Type | Linear Voice Coil Motor | Commutation | Brush |
| Continuous Force(N) | 35.4N | Dimensions | 60.4 Mm Class |
Product Description
Product Description:
The VCAB0105-0164-00A generates linear force directly through electromagnetic interaction between the coil and permanent magnet.The output force is highly linear with respect to current input.
As industrial automation evolves toward higher precision, higher speed, greater consistency, and intelligent control, traditional motion mechanisms such as lead screws, belts, and gear reducers increasingly fail to meet advanced requirements.
As industrial automation continues to advance toward higher speed, greater precision, and increased intelligence, stricter requirements are placed on execution systems in terms of positioning accuracy, dynamic response, and operational stability. Linear Voice Coil Motors (LVCMs), featuring direct-drive operation and outstanding dynamic performance, are widely used in precision execution tasks across industrial automation.
LVCMs utilize electromagnetic force to directly drive linear motion without mechanical contact, transmission components, or backlash. This enables high repeatability and stable micro-positioning control. In applications such as precision assembly, dispensing, welding, inspection, and calibration, voice coil motors can achieve micrometer-level or even sub-micrometer positioning accuracy, significantly improving process consistency and product yield.
For high-speed and high-frequency operations, linear voice coil motors offer high acceleration and rapid response, allowing precise tracking of control commands and complex motion profiles. Their smooth motion and low vibration help reduce mechanical stress and enhance overall system reliability.
Features:
- Micron or sub-micron positioning accuracy
- High acceleration and millisecond-level response
- Zero backlash, zero wear, and highly linear motion
- Long-term stability under continuous operation
-
No lead screws, gears, or belts
-
Zero backlash and transmission error
-
Fast dynamic response with wide control bandwidth
-
Easy implementation of position, velocity, and force closed-loop control
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Precision assembly and press-fit actuation
- Precision Z-axis actuation modules
- High-speed positioning and compensation units
- Precision dispensing, welding and bonding machines
- Inspection and testing execution stages
- Robotic end-effector precision actuation
