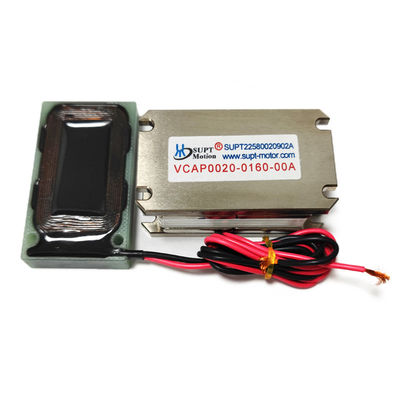

High Precision 16mm Stroke Flat Voice Coil Motor Suitable For XY Positioning Stages
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0020-0160-00A |
| Minimum Order Quantity | ≥2 |
| Price | $195.00/pieces >=1 pieces |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Product Name | Linear Voice Coil Motor | Rated Voltage | 4.4V |
| Peak Force | 20N | Continuous Force | 5.3N |
| Port | Shanghai Port | Stroke | 16mm |
Product Description
Product Description
The SUPT VCAP0020-0160-00A is a high-efficiency, flat voice coil motor designed specifically for precision motion control applications with medium travel. It delivers a peak thrust of 20 N, a continuous thrust of 5.3 N, and a total travel of 16 mm, striking a balance between travel distance and dynamic response, making it ideal for industrial automation and optical equipment. With a thickness of just 22.5 mm, this flat voice coil motor is ideal for slim XY-axis positioning platforms, flat-panel display inspection machines, and laser processing equipment. Its high-performance magnetic circuit ensures smooth, low-noise force output without cogging effects, supporting high-frequency reciprocating motion up to 500 Hz. Its 59 × 50 × 22.5 mm form factor supports array mounting and multi-axis synchronization, significantly enhancing equipment integration. This flat voice coil motor has a maximum operating voltage of 27.6V and features excellent thermal stability and low heat generation, ensuring stable performance in continuous operation. With a back-EMF constant of 4.4 V/m/s, it provides reliable speed and position control. This model of flat voice coil motor is widely used in FPD testing, optical scanning, digital imaging systems, precision positioning stages, and small automation modules.
application :
1.XY Platform for Flat-Panel Display Pixel Inspection Equipment
2.Precision Positioning System for Electronic Label Printers
3.Motion Control for Compact Laser Engravers
4.Lens Movement Mechanism for Optical Sorting Equipment
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
VCAP0020-0160-00A:
| Parameter | value | Parameter | value |
| Model | VCAP0020-0160-00A | Peak thrust | 20N |
| Continuous Thrust (25°C) | 5.3N | Total stroke | 16mm |
| Maximum Voltage | 27.6V | Back-EMF constant | 4.4V/m/s |
| Length | 59mm | Width | 50mm |
| Height | 22.5mm | Insulation Class | Class B |
