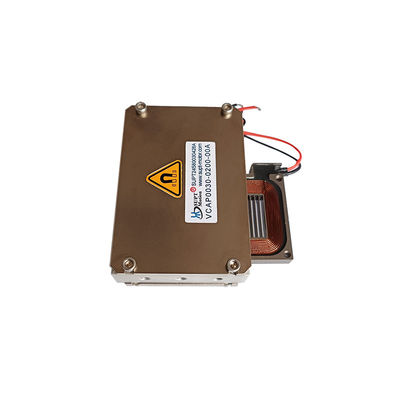

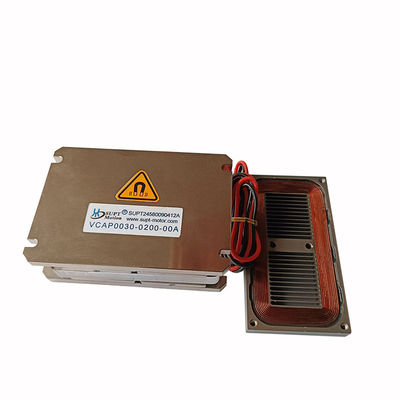

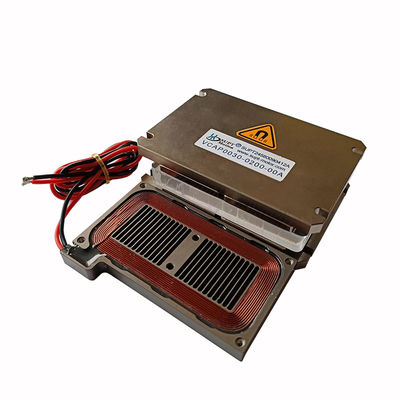

30N High Thrust Flat Voice Coil Motors Are Suitable For Precision Machining
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAP0030-0200-00A |
| Minimum Order Quantity | 3PCS |
| Price | $120-$400 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Actuation Method | Voice Coil | Protect Feature | Totally Enclosed |
|---|---|---|---|
| Continuous Force | 12.3N | Voltage | 24.3V |
| Total Stroke | 20mm | Peak Force | 30N |
| Length | 80mm | Size | 74mm |
| Noise Level | Low | Product Model | VCAP0030-0200-00A |
| Position Feedback | Potentiometer | Commutation | Brush |
Product Description
Product Description:
The SUPTMOTION VCAP0030-0200-00A is a heavy-duty flat voice coil motor specifically designed for high-thrust, long-stroke precision actuation. It delivers a peak thrust of 30 N, a continuous thrust of 12.3 N, and an ultra-long stroke of 20 mm, making it ideal for semiconductor manufacturing, precision machining, and automated assembly systems. With its robust mechanical structure and high-performance magnetic circuit design, this actuator delivers exceptional positioning stability, fast dynamic response, and zero backlash. Its industrial-standard dimensions of 80×74×25 mm ensure compatibility with standard equipment interfaces, simplifying mechanical design and installation processes. The flat voice coil motor operates at a maximum voltage of 24.3 V with a back-EMF constant of 10.5 V/m/s, offering high energy efficiency and low power consumption. It features excellent heat dissipation, low thermal resistance, and maintains stable performance under continuous heavy-duty operating conditions. Flat voice coil motors are widely used in wafer cutting machines, CNC micro-feed systems, automotive component assembly, lithium-ion battery presses, and high-precision inspection equipment. They provide reliable and maintenance-free motion control for industrial applications requiring high thrust and long stroke.
Features:
Long Stroke and High Thrust: A maximum stroke of 20 mm combined with a peak thrust of 30 N and a continuous thrust of 12.3 N meets the demands of heavy-load precision motion.
High-Efficiency Energy Conversion: A high back-EMF constant of 10.5 V/m/s delivers energy conversion efficiency 15% higher than comparable products.
Industrial-Grade Dimensions: Standard industrial dimensions of 80 × 74 × 25 mm, compatible with semiconductor equipment mounting interfaces.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
VCAP0030-0200-00A:
| Parameter | value | Parameter | value |
| Model | VCAP0030-0200-00A | Peak thrust | 30N |
| Continuous Thrust (25°C) | 12.3N | Total stroke | 20mm |
| Maximum Voltage | 24.3V | Back-EMF constant | 10.5V/m/s |
| Length | 80mm | Width | 74mm |
| Height | 25mm | Protection rating | IP54 |
Applications:
• Positioning systems for semiconductor wafer cutting equipment
• Micro-feed mechanisms for precision CNC machine tools
• Automotive electronic component testing equipment
• Precision lamination equipment for lithium-ion battery electrodes
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
