100N Ultra High Thrust Heavy Duty Precision Actuator With A Flat Voice Coil Motor
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0100-0020-00A |
| Minimum Order Quantity | 2 pieces |
| Price | $120.00/pieces >=2 pieces |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Home Appliance, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Product Name | Linear Voice Coil Motor | Rated Voltage | 41.2V |
| Peak Force | 100N | Continuous Force | 47N |
| Port | Shanghai Port |
Product Description
Product Description

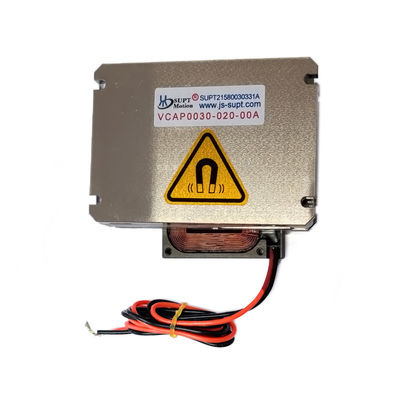

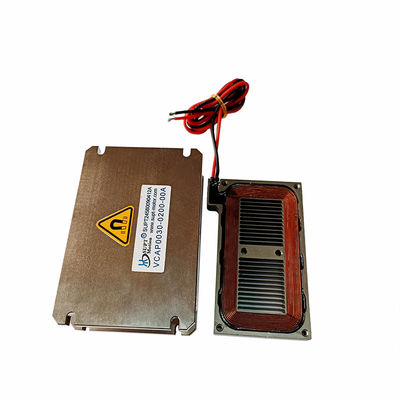

SUPTMOTION’s VCAP0100-0020-00A is an industrial-grade, ultra-high-thrust flat voice coil motor designed specifically for heavy-duty precision positioning. It delivers a peak thrust of up to 100 N and a continuous thrust of 47 N with a stroke of 4 mm, making it ideal for high-precision, short-stroke drive applications. Manufactured with a high-strength structure and wear-resistant, premium materials, this flat voice coil motor features exceptional force density, a fast response time of less than 5 milliseconds, and ultra-stable motion performance. Its robust 110×105×51 mm frame ensures minimal deformation during operation, making it ideal for precision stamping, heavy-duty clamping, and heavy-load positioning systems. This flat voice coil motor supports a maximum voltage of 41.2 V and features an ultra-high back-EMF constant of 80.1 V/m/s, enabling rapid and precise closed-loop control. It offers excellent thermal management capabilities, a wide operating temperature range, and exceptional resistance to shock and vibration. This flat voice coil motor is widely used in automotive manufacturing, precision stamping machines, heavy-duty optical component positioning, high-voltage switchgear, and large-scale automation equipment.
The main application of a voice coil motor:
Linear voice coil driver is a kind of voice coil drive mechanism, which uses linear voice coil driver for accurate control. It is a flat voice coil motor, its market mainly points to semiconductor and micro-machine tool industry. This linear voice coil actuator system is lightweight, compact and suitable for a variety of applications. It is characterized by light weight, short response time and high frequency. Short stroke, compact structure, model is VCAP series, is perfect for applications requiring precise and accurate movement.
Application Scenarios (Precise Matching)
• Precision metal stamping equipment
• Precision automotive parts assembly machines
• Heavy-duty optical component positioning systems
• Drive mechanisms for high-voltage switchgear
• Precision metal stamping equipment
• Precision automotive parts assembly machines
• Heavy-duty optical component positioning systems
• Drive mechanisms for high-voltage switchgear
Technical Parameters:
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAP0020-0068-00A
|
20
|
9.2
|
6.8
|
8.2
|
4.4
|
39
|
50
|
21.5
|
|
VCAP0020-0160-00A
|
20
|
5.3
|
16
|
27.6
|
4.4
|
59
|
50
|
22.5
|
|
VCAP0030-0200-00A
|
30
|
12.3
|
20
|
24.3
|
10.5
|
80
|
74
|
25
|
VCAP0100-0020-00A:
| Parameter | value | Parameter | value |
| Model | VCAP0100-0020-00A | Peak thrust | 100N |
| Continuous Thrust (25°C) | 47N | Total stroke | 4mm |
| Maximum Voltage | 41.2V | Back-EMF constant | 80.1V/m/s |
| Length | 110mm | Width | 105mm |
| Height | 51mm | Weight | 1.2kg |
Detailed Images
