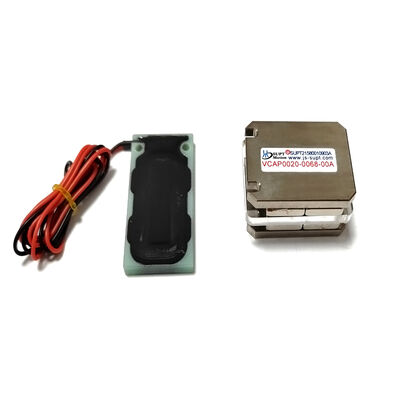

20N Micro Flat Linear Voice Coil Actuator Suitable For Semiconductor Testing
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT |
| Certification | ce,ISO9001,CCC |
| Model Number | VCAP0020-0068-00A |
| Minimum Order Quantity | 1pieces |
| Price | $150.00/pieces >=2 pieces |
| Packaging Details | Carton packaging etc. |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, UAV,3D Printing,Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Construction | Permanent Magnet |
| Commutation | Brush | Protect Feature | Totally Enclosed |
| Speed(RPM) | Variable Speed | Product Name | Linear Voice Coil Motor |
| Rated Voltage | 8.2V | Peak Force | 20N |
| Continuous Force | 5.5N | Port | Shanghai Port |
Product Description
Product Description
The flat voice coil actuator features fast response times, moderate thrust, reliable stroke, and high efficiency, and is specifically designed for semiconductor and electronic testing applications. With a peak thrust of 20 N, a continuous thrust of 5.5 N, and a stroke of 6.8 mm, this flat voice coil actuator achieves an ideal balance between thrust, speed, and stroke. With its compact dimensions (39 × 50 × 21.5 mm) and a height of just 21.5 mm, this flat voice coil actuator is well-suited for multi-axis testing platforms and high-density automation modules. It delivers smooth force output, is free of cogging effects, operates quietly, and offers high positioning accuracy, making it capable of supporting high-frequency reciprocating motion over extended periods. The motor has a maximum operating voltage of 8.2V and a back-EMF constant of 4.4 V/m/s, ensuring stable performance and low power consumption. Its advanced heat dissipation design reduces heat buildup and extends service life. This flat voice coil actuator is widely used in semiconductor probe stations, IC test equipment, sensor calibration systems, electronic component inspection, and small-scale automated assembly lines.
Application:
Compared to the rectangular series, the flat-type voice coil motor series has a relatively shorter stroke for the same volume, but its advantage lies in its lower profile. It delivers a thrust of up to 500 N and a stroke of 15 mm. The flat-type series is an ideal solution for generating short-stroke X-Y motion, and its primary market is the semiconductor and micro-machining industries.
• Semiconductor chip test probe stations
• Electronic component functional testing equipment
• Precision sensor calibration systems
• Small-scale automated assembly lines
• Electronic component functional testing equipment
• Precision sensor calibration systems
• Small-scale automated assembly lines
Technical Parameters:
|
Product Mdel
|
Peak Force
(N)
|
Continious
Force
(N)
|
Total Stroke
(mm)
|
Max
Voltage
(V)
|
Back EMF
Constant
(V/m/S)
|
Weight of the Coil
(g)
|
Length(mm)
|
Width
(mm)
|
|
VCAP0020-0068-00A
|
20
|
9.2
|
6.8
|
8.2
|
4.4
|
39
|
50
|
21.5
|
|
VCAP0020-0160-00A
|
20
|
5.3
|
16
|
27.6
|
4.4
|
59
|
50
|
22.5
|
|
VCAP0030-0020-00A
|
30
|
12.3
|
20
|
24.3
|
10.5
|
80
|
74
|
25
|
VCAP0020-0068-00A:
| Parameter | value | Parameter | value |
| Model | VCAP0020-0068-00A | Peak thrust | 20N |
| Continuous Thrust (25°C) | 5.5N | Total stroke | 6.8mm |
| Maximum Voltage | 8.2V | Back-EMF constant | 4.4V/m/s |
| Length | 39mm | Width | 50mm |
| Height | 21.5mm | Weight | 3.3kg |
Detailed Images
