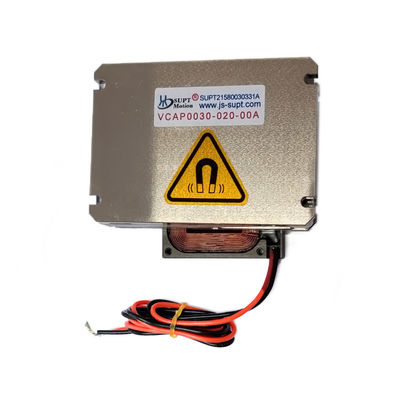

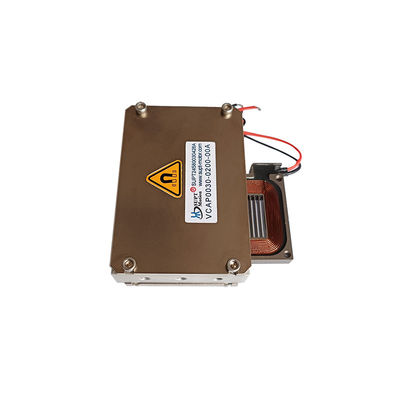

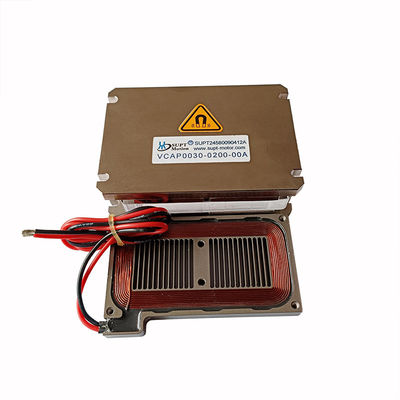

High Force Long Stroke Flat Voice Coil Motor For Precision Assembly
Product Details
| Noise Level | Low | Warranty | 3months-1year |
|---|---|---|---|
| Max Force | 30N | Voltage | 24.3V |
| Product Model | VCAP0020-0068-00A | Housing Material | Aluminum |
| Type | Micro Motor | Stroke | 20mm |
| Stroke Length | 80mm |
Product Description
Product Description:
The SUPT VCAP0075-0180-00A is a high-performance flat voice coil motor optimized for high-thrust, long-stroke industrial automation tasks. It delivers a powerful peak thrust of 30 N, a continuous thrust of 12.3 N, and a stroke of 20 mm, making it ideal for applications such as precision assembly, pressing, positioning, and material handling. Its robust, compact construction ensures high rigidity, low vibration, and stable performance under heavy loads. Featuring an efficient magnetic circuit design, this flat voice coil motor delivers smooth force output, rapid response, and no cogging effect, supporting high-precision closed-loop control. With a maximum voltage of 24.3V and a back-EMF constant of 10.5 V/m/s, it offers exceptional energy efficiency and stable performance. An advanced heat dissipation design ensures low heat generation and reliable long-term operation. This flat voice coil motor is widely used in 3C electronics assembly, automotive parts manufacturing, precision stamping systems, semiconductor packaging, and flat-panel display production lines. It combines high thrust, long stroke, and high reliability to meet the demands of modern industrial automation.
Features:
Magnetic Circuit and Air Gap: Prioritize double-sided multi-stage or differential structures to optimize the magnetic yoke and reduce stray flux; the air gap must balance magnetic flux density and manufacturing tolerances.
Coil Optimization: Low inductance and low resistance to improve dynamic performance; wire gauge and number of turns should be matched to thrust and power consumption.
Guidance mechanism: Flexible hinges are suitable for micro-displacements and frictionless operation; linear bearings are suitable for slightly longer strokes, where friction and lateral forces must be controlled.
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAP0020-0068-00A | 20 | 5.5 | 6.8 | 8.2 | 4.4 | 39 | 50 | 21.5 |
| VCAP0020-0160-00A | 20 | 5.3 | 16 | 27.6 | 4.4 | 59 | 50 | 22.5 |
| VCAP0030-0200-00A | 30 | 12.3 | 20 | 24.3 | 10.5 | 80 | 74 | 25 |
| VCAP0100-0020-00A | 100 | 47 | 4 | 41.2 | 80.1 | 110 | 105 | 51 |
| VCAP0030-0200-00A |
| Parameter | value | Parameter | value |
| Model | VCAP0030-0200-00A | Peak thrust | 30N |
| Continuous Thrust (25°C) | 5.512.3 | Total stroke | 20mm |
| Maximum Voltage | 24.3V | Back-EMF constant | 10.5V/m/s |
| Length | 80mm | Width | 74mm |
| Height | 25mm | Protection Rating | IP54 |
Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. |
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
1.Precision metal stamping equipment
2.Precision assembly machines for automotive parts
3.Precision sensor calibration systems
4.Small-scale automated assembly lines
