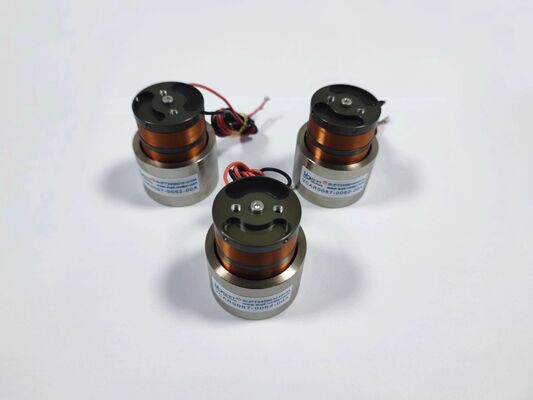

15N 12.7mm Stroke Shaft-Type Voice Coil Motor for Semiconductor Probing

  • 15N 12.7mm Stroke Shaft-Type Voice Coil Motor for Semiconductor Probing
  • 15N 12.7mm Stroke Shaft-Type Voice Coil Motor for Semiconductor Probing
  • 15N 12.7mm Stroke Shaft-Type Voice Coil Motor for Semiconductor Probing
  • 15N 12.7mm Stroke Shaft-Type Voice Coil Motor for Semiconductor Probing
Place of Origin China,Suzhou
Brand Name SUPT MOTION
Certification ISO9001,CE,3C
Model Number VCAB0015-0127-00A
Minimum Order Quantity ≥1PCS
Price $110-$160
Packaging Details Customized packaging etc.
Delivery Time 1-5pcs ,5 days . >20pcs ,To be negotiated
Payment Terms T/T
Supply Ability To be negotiated
Product Details
Warranty 3months-1year Product Model VCAB0015-0127-00A
Weight(g) 21.5 Peak Force (N) 15
Total Stroke (mm) 12.7 Max Voltage （V） 12.5
Positioning Accuracy High Continuous Force(N) 4.9N
Product Type Linear Voice Coil Motor With Shaft Noise Low Noise
Applications Precision Positioning, Haptics, Optics, Semiconductor Manufacturing
Highlight

12.7mm stroke shaft-type voice coil motor

,

15N voice coil motor for semiconductor probing

,

linear voice coil motor with warranty
Leave a Message
Product Description

Product Description:

The SUPT shaft-type voice coil motor, model VCAB0015-0127-00A, features high precision and is specifically designed for semiconductor wafer probe testing, precision height positioning, and automated test equipment applications.


This linear voice coil motor features a built-in motion shaft design and incorporates precision linear bearings, providing exceptional guidance accuracy and smooth operation. The motion shaft is made of lightweight, high-rigidity, and wear-resistant materials, ensuring stable performance.
In semiconductor probe testing applications, maintaining a stable contact force is critical to preventing damage to precision bonding pads or probe tips. The direct-drive design of this voice coil motor achieves micrometer-level repeatable positioning accuracy, which directly contributes to improving test yield and reducing false-positive rates.


Compared to traditional stepper motor or servo-driven lead screw platforms, the VCAB0015-0127-00A offers superior dynamic performance, zero mechanical backlash, and lower friction loss. Its high-frequency response capability meets the rapid cycling demands of high-throughput test applications, while its low-power design reduces heat generation that could otherwise compromise the thermal stability of precision measurement systems.

This linear voice coil motor is also suitable for Z-axis positioning in chip placement systems, precision dispensing heads, and automated optical inspection (AOI) platforms that require fast, precise vertical motion. Its compact size and simple mechanical interface make it an ideal plug-and-play solution for upgrading existing pneumatic or leadscrew-driven axes to high-performance electric drives.

Features:

  • Peak Force: 15 N

  • Continuous Force @25℃: 4.9 N

  • Total Stroke: 12.7 mm

  • Max Voltage: 21.5 V

  • Back EMF Constant: 4.1 V/m/s

  • Coil Weight: 12.5 g

  • Stator Diameter: 30.5 mm

  • Shaft End: Ø4.8 mm plain shaft



Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10



Applications:

  1. Semiconductor wafer probing

  2. Z-axis positioning in die attach

  3. Precision dispensing heads

  4. Automated optical inspection (AOI)

  5. Test fixture positioning

  6. Probe station actuators
