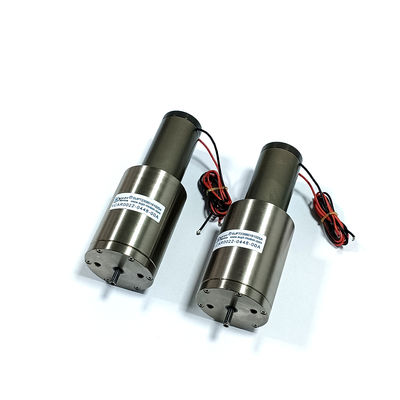

Micro Shaft Type Linear Voice Coil Motor For High Speed Sorting
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ce, ISO9001 |
| Model Number | VCAB0070-0149-00A |
| Minimum Order Quantity | ≥2 |
| Price | $140.00/pieces 1-29 pieces |
| Packaging Details | Carton packing |
| Delivery Time | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Product Details
| Warranty | 3months-1year | Usage | BOAT, Car, Electric Bicycle, Microscope,Robot,Medical Ventilators,Optical Project |
|---|---|---|---|
| Type | Micro Motor | Torque | Requests |
| Construction | Permanent Magnet | Commutation | Brush |
| Protect Feature | Totally Enclosed | Speed(RPM) | Variable Speed |
| Efficiency | IE 1 | Peak Force(N) | 70 |
| Maximum Travel(mm) | 14.9 | Voice Coil Motor(V) | 26.9 |
| Weight Rotor(kg) | 79 | Stator Dia(mm) | 43 |
| Continuous Force(N) | 27.3 | Back EMF Constant(kb) | 17.7 |
| Enter The Length Of The Coil(mm) | 53.7 | Product Model | VCAB0070-0149-00A |
| Highlight | Micro shaft linear voice coil motor,High speed sorting voice coil motor,Linear voice coil motor for sorting |
||
Product Description
Product Description
The SUPT MOTION VCAB0070-0149-00A is a high-performance semi-enclosed shaft-type voice coil motor designed specifically for high-speed sorting, rapid pick-and-place, and ejection systems that require fast response and powerful thrust.
The VCAB series features a built-in motion shaft with precision linear bearings, ensuring smooth and precise guidance throughout the entire operating stroke. The motion shaft is made of lightweight, high-rigidity, wear-resistant materials, offering high stability and excellent force-velocity characteristics to enable the rapid acceleration and deceleration required for high-speed sorting applications.
In high-speed sorting systems for electronic components and food products, actuators must respond within milliseconds to divert or reject defective items. The VCAB0070-0149-00A voice coil motor, with its high back-EMF, delivers exceptional dynamic response and rapid acceleration, thereby minimizing product damage and improving production line efficiency.
Compared to traditional pneumatic rejection systems, voice coil motors offer several key advantages: no compressed air is required, they operate more quietly, their motion profiles are programmable, they require less maintenance, and their performance remains consistent regardless of air pressure fluctuations. The direct-drive mechanism eliminates the mechanical delays and friction commonly associated with solenoid-driven pneumatic valves, resulting in faster response times and more precise rejection positioning. This linear voice coil motor is also suitable for high-speed stamping, labeling, and marking applications that require rapid, controlled contact.
Specifications:
Peak Force: 70 N
Continuous Force @25℃: 27.3 N
Total Stroke: 14.9 mm
Max Voltage: 26.9 V
Back EMF Constant: 17.7 V/m/s
Coil Weight: 79 g
Stator Diameter: 43 mm
Shaft End Thread: M3 (Inner)
Technical Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
1.High-speed electronic component sorting
2.Pharmaceutical rejection mechanisms
3.Food packaging ejection systems
4.High-speed stamping/ marking
5.Fast pick-and-place operations
6.High-throughput inspection reject stations
