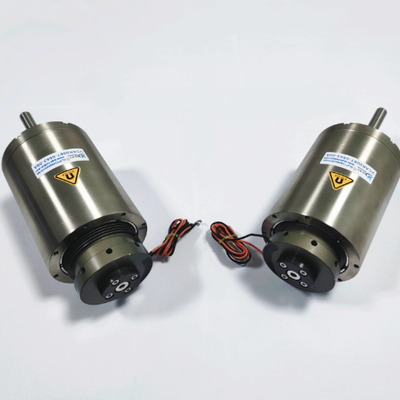

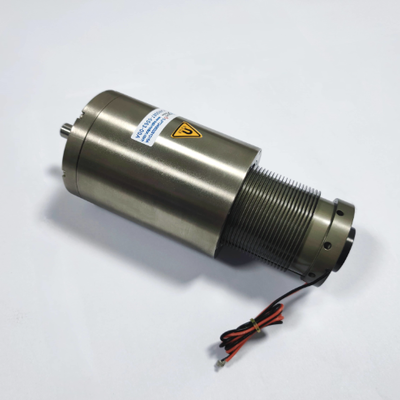

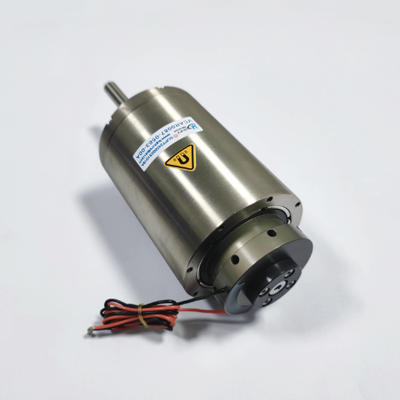

High Acceleration Linear Voice Coil Motor Wide Speed Range VCAB 63.4V 87N

Product Overview

The VCAB0087-0563-00A high-acceleration linear voice coil motor is specifically designed for precision motion control applications requiring fast response and flexible speed performance. Featuring a direct-drive moving-coil design, this linear voice coil motor delivers peak acceleration of up to 35G while maintaining precise speed control across an extremely wide speed range. The lightweight coil assembly significantly reduces moving mass, enabling rapid direction changes, shorter settling times, and smoother operation in high-speed pick-and-place and semiconductor processing equipment.

Unlike traditional rotary-to-linear conversion systems that rely on gears, lead screws, or belts, the VCAB series generates thrust directly through electromagnetic interaction. This direct-drive architecture eliminates backlash, reduces mechanical wear, and provides cog-free motion ranging from low-speed sub-micron positioning to high-speed movement. Featuring rare-earth magnets, precision copper coil windings, and a rigid aluminum housing, this linear voice coil motor maintains high reliability over millions of cycles while ensuring the entire assembly remains lightweight and compact, making it suitable for space-constrained automation modules.

The VCAB0087-0563-00A linear voice coil motor undergoes 100% testing for force output, electrical continuity, and insulation integrity before leaving the factory. This linear voice coil motor supports bidirectional motion and features programmable speed profiles, enabling system integrators to tailor acceleration ramps and speed profiles to each specific application. Combining a wide speed range, high stability, and low power consumption, the VCAB series achieves an ideal balance of dynamic performance and long-term reliability in demanding industrial environments.

Specifications

Technical Parameters

General Information

Application

The VCAB Series high acceleration linear voice coil motor is widely deployed in applications requiring rapid motion, precise positioning, and wide speed adjustability:

• Semiconductor wire bonding and die placement
• Laser cutting and marking head positioning
• High speed pick and place systems
• Precision valve control and metering pumps
• Wafer inspection and 3D scanning equipment
• Active vibration damping platforms

In each scenario, the wide speed range allows operators to switch seamlessly between fast transfer moves and slow, accurate positioning strokes without changing mechanical components, which simplifies machine design and improves overall throughput.

FAQ

Q1: What is the maximum acceleration and speed range of the VCAB Series?

A1: The VCAB Series achieves peak acceleration up to 35G and supports continuous speed control from near zero to 2.0 meters per second. The exact values depend on the selected model, driving voltage, and load conditions, and our engineers can help you select the optimal configuration for your application.

Q2: How does the wide speed range benefit my application?

A2: A wide speed range lets one motor handle both high speed transfer motions and low speed precision positioning. This eliminates the need for separate drive stages or complex mechanical transmissions, simplifying the machine design and improving overall throughput and positioning accuracy.

Q3: Is the motor suitable for continuous duty operation?

A3: Yes. The VCAB Series is designed for high duty cycle operation with a continuous force rating of 17.5N at 25 degrees Celsius. For applications requiring sustained high force output, we recommend evaluating thermal performance with our engineering team to select the appropriate coil and cooling configuration.

Q4: What quality certifications and technical support do you provide?

A4: All VCAB Series motors are ISO9001 certified and comply with CE and RoHS requirements. We provide full technical documentation, wiring diagrams, and application support. Custom stroke lengths, force ratings, and connector options are available on request with a typical lead time of 15 to 25 days.

Q5: What is the minimum order quantity and delivery time?

A5: The minimum order quantity is one piece for evaluation samples. Standard orders are delivered within 5 to 7 days for stocked models and 15 to 25 days for customized versions. We offer carton packaging with shock proof foam inserts to ensure safe worldwide shipping.
