VCAR0011-0050-00A Voice Coil Motor 11.4N Peak Force 5mm Stroke High Acceleration

Product Overview

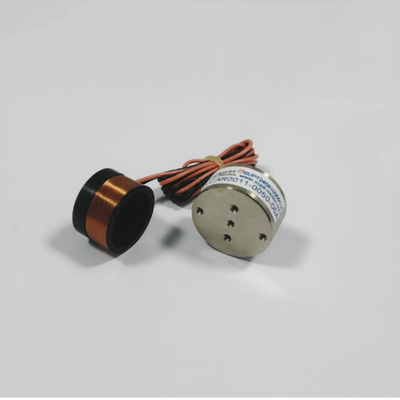

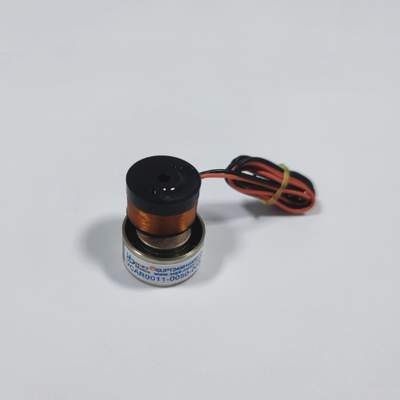

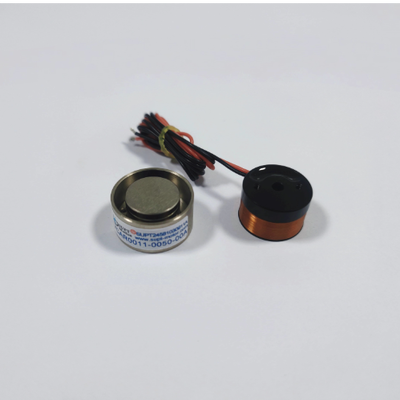

The VCAR0011-0050-00A is a high-acceleration cylindrical voice coil motor in the SUPT MOTION VCAR series, designed specifically for applications requiring rapid startup, quick stabilization, and continuous high-frequency response. At 25 °C, this model delivers a peak thrust of 11.4 N and a continuous thrust of 2.1 N. Its lightweight moving-coil assembly, weighing just 11.2 g, provides an extremely high thrust-to-mass ratio, enabling the motor to reach its target speed in a matter of milliseconds.

Unlike traditional rotary motors converted to linear motion, cylindrical voice coil motors generate thrust directly through the interaction between the coil current and the permanent magnetic field. These motors require no gearboxes, couplings, or lead screws, which means zero backlash, zero cogging effects, and virtually no hysteresis. Consequently, when used in conjunction with a suitable encoder, they deliver exceptionally smooth motion, high-frequency response, and micrometer-level repeatable positioning accuracy.

The VCAR0011-0050-00A offers a total stroke of 5 mm, making it ideal for short-stroke, high-speed pick-and-place, focusing, scanning, and oscillation tasks. With a compact stator diameter of 24 mm and a length of 17.2 mm, it can be easily integrated into space-constrained machine modules. This motor features a brushless design, is maintenance-free, operates with extremely low noise and minimal heat generation, and is manufactured to ISO 9001 standards and CE-certified, ensuring reliable operation in industrial environments.

The voice-coil motor consists of a precision-wound copper coil that moves within a high-energy rare-earth magnetic circuit, eliminating the need for brushes, commutation electronics, or mechanical transmission mechanisms. This simple yet robust construction not only reduces points of failure but also ensures that the output force is proportional to the applied current, providing designers with a predictable and easily controllable actuator. When combined with a suitable linear amplifier and position feedback, the VCAR0011-0050-00A can be configured for force control, speed control, or precise point-to-point positioning modes, depending on application requirements.

Specifications

Key design features: high acceleration thanks to an 11.2 g lightweight mover; high frequency response with direct drive; short 5 mm stroke for fast reciprocating motion; zero backlash and zero cogging construction; maintenance-free brushless design.

Application

The high acceleration and high frequency response of the VCAR0011-0050-00A make it an excellent choice for the following applications:

• High-speed pick-and-place mechanisms in electronics assembly lines
• Optical auto-focus and image stabilization modules for cameras and inspection systems
• High-frequency vibration platforms for fatigue testing and material characterization
• Precision dispensing, jetting and printing heads requiring fast reciprocation
• Semiconductor probing, wire bonding and die sorting equipment
• Active vibration isolation and fast steering mirror control

FAQ

Q1: How fast can this motor accelerate?

With an 11.2 g mover and 11.4 N peak force, the theoretical peak acceleration is extremely high. The actual acceleration depends on the load mass, driver current limit and stroke, and our engineers can help you calculate the dynamic performance for your specific load.

Q2: Can the motor operate continuously at high frequency?

Yes, within the continuous force rating of 2.1 N, the motor can operate at high frequency without overheating. For duty cycles that exceed the continuous rating, forced air cooling, duty-cycle derating or a larger frame size from the VCAR series is recommended. Our application engineers can simulate your motion profile and suggest the optimal model.

Q3: What position feedback options are available?

We recommend linear encoders, Hall sensors or LVDT position sensors depending on the required resolution. SUPT MOTION can provide integration guidance for closed-loop servo control.

Q4: Is the motor suitable for cleanroom environments?

Yes. The brushless, slotless construction generates no wear debris, and the motor can be supplied with cleanroom-compatible materials and cabling for semiconductor and medical applications.

Q5: What are the payment terms and shipping options?

We accept T/T, PayPal and Western Union. Samples ship within 3 to 5 working days by international express, and production orders are delivered within 7 to 15 working days.
