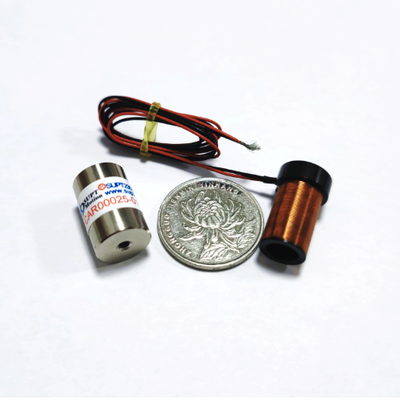

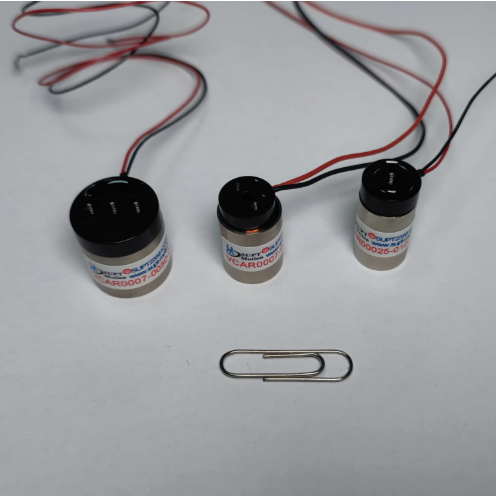

High Precision 12.8V Compact Cylindrical Voice Coil Motor For Microdevices
| Place of Origin | Suzhou, China |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VCAR0007-0127-00A |
| Minimum Order Quantity | 1 Piece |
| Price | $40-$70 / Piece |
| Packaging Details | SUPT MOTION branded box with anti-static foam insert, export-grade corrugated carton |
| Delivery Time | 3-5 days for samples, 15-25 days for bulk orders |
| Payment Terms | T/T |
| Supply Ability | 5000 Pieces per Month |
Product Details
| Model Number | VCAR0007-0127-00A | Motor Type | Compact Cylindrical Voice Coil Motor |
|---|---|---|---|
| Peak Force | 7.1N | Continuous Force | 2.3N |
| Total Stroke | 12.7mm | Max Voltage | 12.8V DC |
| Back EMF Constant | 1.6 V/m/s | Coil Weight | 11.4g |
| Stator Diameter | 19.1mm | Overall Length | 27mm |
| Insulation Class | Class B | ||
| Highlight | Compact Cylindrical Motor Design,20mm Diameter Voice Coil Motor,Lightweight Direct Drive Actuator |
||
Product Description

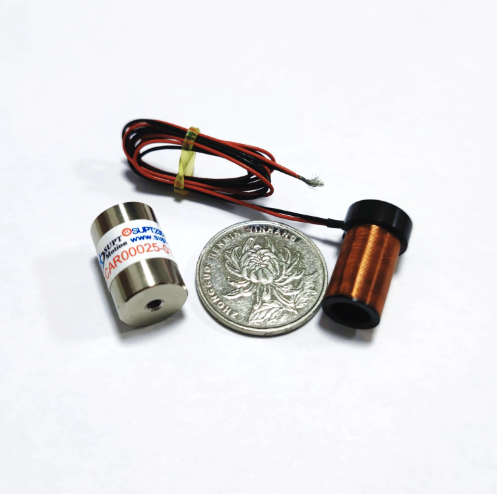

Product Overview
The VCAR0007-0127-00A is a compact cylindrical voice-coil motor with an outer diameter of just 19.1 mm. Powered by a 12.8V DC power supply, it offers a stroke of 12.7 mm and a peak thrust of up to 7.1 N, making it one of the smallest direct-drive actuators in the SUPT MOTION product series.
Its cylindrical shape allows it to fit naturally into circular holes, sleeves, and cavities, simplifying mechanical integration in space-constrained products. Weighing only 14.8 grams, the moving coil accelerates rapidly and exerts minimal inertial forces on surrounding structures. A high-energy magnet assembly delivers powerful thrust within a compact design, while the non-contact design ensures quiet operation without cogging effects.
Simple current commands generate smooth, controllable thrust across the entire stroke range, making servo tuning simple and intuitive. The housing is precision-machined from aluminum and coated with a corrosion-resistant finish. This motor is designed for compact devices that require reliable, repeatable linear motion without the bulky structure of a geared motor.

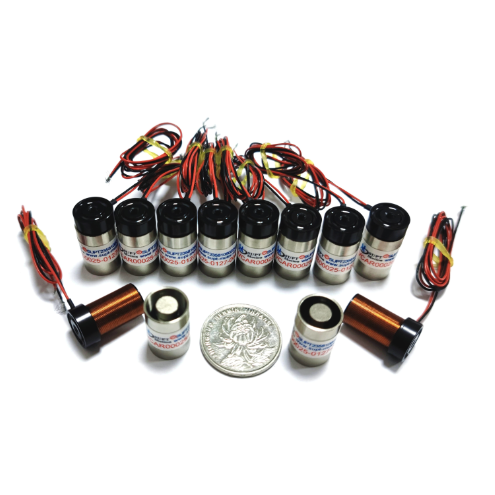

Solution
Microdevices typically lack the space to accommodate rotary motors and transmission mechanisms. This voice coil actuator solves this problem by providing linear thrust directly within a 19.1-millimeter cylindrical housing.
Thanks to its direct-drive design, this voice coil motor has no gears prone to wear and requires no backlash compensation, resulting in a simple and reliable mechanism. Low moving mass and low inductance allow this voice coil motor to be driven by a small, low-cost driver circuit.
The voice coil motor can also withstand frequent reverse operation, which is common in dispensing and sorting mechanisms. This solution provides a compact, quiet, and maintenance-free precision linear motion solution for small devices.
Specifications
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter (mm) | The Length (mm) |
| VCAR0001-0064-00A | 0.88 | 0.28 | 6.4 | 6.9 | 0.29 | 3 | 9.5 | 17.7 |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR00025-0127-00A | 2.55 | 0.81 | 12.7 | 11.6 | 0.77 | 6.6 | 12.7 | 24 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0007-0040-00A | 7.2 | 2.4 | 4 | 7.5 | 1.88 | 7 | 14.2 | 23 |
| VCAR0007-0064-00A | 7.8 | 2.5 | 6.4 | 9.9 | 1.5 | 7.2 | 19.1 | 23.8 |
| VCAR0007-0127-00A | 7.1 | 2.3 | 12.7 | 12.8 | 1.6 | 11.4 | 19.1 | 27 |
| VCAR0011-0050-00A | 11.4 | 2.1 | 5 | 11.8 | 3 | 11.2 | 24 | 17.2 |
| VCAR0011-0100-00A | 10.5 | 2.9 | 10 | 43.8 | 3.5 | 20 | 31 | 26.8 |
| VCAR0013-0030-00A | 13 | 3.5 | 3 | 16 | 3.5 | 12 | 25 | 21 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0014-0250-00A | 14 | 4.5 | 25 | 26.5 | 3.9 | 35 | 25.4 | 44.2 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0025-0630-00A | 25.3 | 8 | 63 | 50.6 | 5 | 68 | 31.8 | 83.1 |
| VCAR0030-0150-00A | 29.4 | 4.73 | 15 | 40.5 | 7.4 | 27 | 30 | 31 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | 72 |
| VCAR0035-0090-00A | 35 | 11 | 9 | 26.4 | 9 | 33 | 25.4 | 44.3 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0075-0200-00A | 75 | 30 | 20 | 26.2 | 15.2 | 65 | 70 | 38.7 |
| VCAR0080-0129-00A | 80 | 35 | 12.9 | 27.7 | 18 | 149 | 49 | 53.8 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0110-0380-00A | 110 | 37.4 | 38 | 23.2 | 9 | 150 | 60.4 | 60.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | 27.5 |
| VCAR0115-0065-00A | 115 | 30.1 | 6.5 | 35 | 17.3 | 52 | 40 | 58 |
| VCAR0130-0310-00A | 130 | 40 | 31 | 30.4 | 20.5 | 280 | 75.6 | 56.5 |
| VCAR0140-0150-00A | 140 | 42.2 | 15 | 33.4 | 26.6 | 80 | 53 | 53.7 |
| VCAR0210-0254-00A | 210 | 66.2 | 25.4 | 56.6 | 28 | 230 | 43.7 | 111.8 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | 91 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.6 | 37.3 | 38 | 29.8 | 1050 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 41.5 | 104 | 1426 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 31 | 73.5 | 68 | 1071 | 110 | 143.7 |
Application
This compact voice-coil linear actuator is suitable for micro-camera autofocus modules, haptic feedback devices, micro-valves, laboratory automation pipettes, compact grippers, optical zoom mechanisms, and portable medical devices.
The same voice-coil motor is also used in compact print heads, barcode scanning mechanisms, and micro-pump drives. It is also suitable for micro-damping and vibration systems with extremely stringent space and weight requirements.
FAQ
Q: What makes the cylindrical design an advantage?
A: The cylindrical envelope matches round bores and cavities, so the motor can be mounted without wasting space. It also provides a balanced magnetic circuit that keeps force consistent in all mounting orientations.
Q: How long can this small motor run continuously?
A: Continuous force at 25°C is 2.3N. For duty cycles above this limit, we recommend adding a heatsink or using the motor intermittently. Thermal protection can be added on request.
Q: Can the 20mm diameter motor be customized?
A: Yes. Stroke, force, voltage, lead length and connector type can be customized.
Q: Is a driver included with the motor?
A: The motor is supplied as a component. A matching miniature driver board is available on request for quick evaluation.
