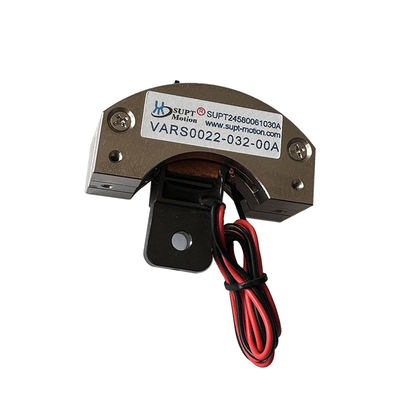

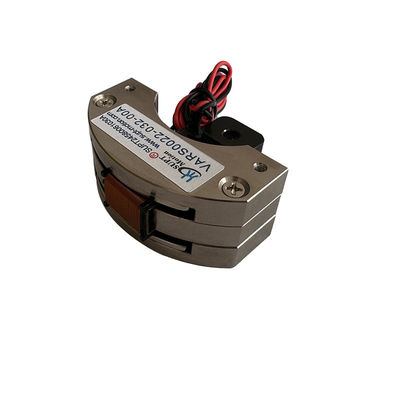

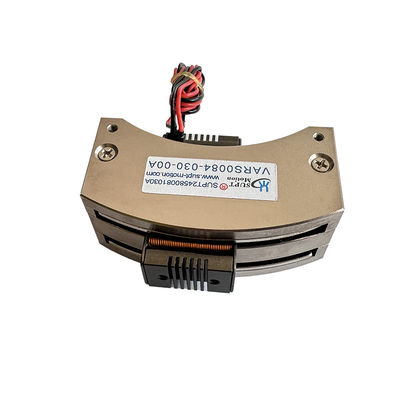

High Frequency Loudness High Speed Rotary Voice Coil Motor For Laser Cutting
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VARS0022-032-00A |
| Minimum Order Quantity | 1PCS |
| Price | $149 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Actuation Type | Voice Coil | Peak Torque | 22 Nm |
|---|---|---|---|
| Max Voltage | 15.5V | Product Model | VARS0022-032-00A |
| Construction | Permanent Magnet | Motion Type | Rotary |
| Material | Aluminum Alloy | Commutation | Brush |
| Maximum Travel(mm) | 32 | Speed(RPM) | High Speed |
| Highlight | Laser Cutting Rotary Voice Coil Motor,High Speed Rotary Voice Coil Motor |
||
Product Description
Product Description:
The Rotary Actuators voice coil motor is improved and bent on the basis of the rectangular voice coil motor to form a structure with a certain angle, which makes the motor capable of realizing oscillating motion at a limited angle.
It mainly consists of a bent coil, permanent magnets, a rotating shaft and a support structure. Similar to ordinary voice coil motors, the energized coil is subjected to force in the magnetic field, but due to the specificity of its structure, the force generated causes the motor to oscillate around the rotating shaft instead of moving in a straight line.
Usually has a certain swing angle range, generally in the tens of degrees to more than a hundred degrees between, for example, some swing angle voice coil motor maximum swing angle of up to 90 degrees or 120 degrees.
Commonly used in laser technology in the mirror positioner, swing-type valve brake, swing-type positioning systems and flight controllers, etc., in the semiconductor industry, automation, aviation and aerospace industry has a wide range of applications.
Features:
Light weight of actuator coil, short response time and high frequency.
Swing angle 1-120 degrees
Torque 1-50N.m
Product Parameters:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Product Applications:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
|
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
Application of rotary motor in laser cutting equipment: In laser cutting equipment, voice coil motor is used to control the Z-axis dynamic focusing of the laser cutting head to ensure that the laser focal point is always accurately focused on the surface of the material to be cut, so as to realize high-precision cutting. For example, when processing precision parts and metal sheets with complex patterns, the high-precision positioning and fast response capability of the voice coil motor can ensure the precision and quality of cutting.
