High Frequency High Speed Rotary Voice Coil Motor For Laser Focusing
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VARS0017-090-00A |
| Minimum Order Quantity | 2PCS |
| Price | $156 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | High Speed | Warranty | 3months-1year |
|---|---|---|---|
| Continous Torque | 0.1N-m | Housing Material | Aluminum |
| Actuation Type | Voice Coil | Length | 70mm |
| Coil Resistance | 12 Ω | Product Model | VARS0017-090-00A |
| Total Stroke | 90° | Max Voltage | 11V |
| Weight Of The Coil(g) | 17.8 | Material | Aluminum Alloy |
| Highlight | High Speed Rotary Voice Coil Motor,High Frequency Rotary Voice Coil Motor,Laser Focusing Rotary Voice Coil Motor |
||
Product Description
Product Description:
The Rotary Actuators have taken the technology of the rectangular linear actuator and bent therm to provide a high resolution limited angle positioning system.
The Rotary Actuators are typically utilized as mirror position Actuators for laser technologies,rotary valve and damping Actuators, rotary positioning systems and flight control Actuators, Rotary Actuators markets include semiconductor,automotive,industrial and aerospace industries.
Rotary voice coil motors are used in laser focusing:
Lens Focusing:By installing a lens on the rotary voice coil motor, the laser beam is focused to a small spot. This method is simple and easy to use, but the focusing accuracy is low.
Mirror focusing: Using a mirror to reflect the laser beam to a small point. This method achieves higher focusing accuracy, but requires precise adjustment of the position and angle of the reflector.
Dynamic Focusing:By controlling the movement of the rotary voice coil motor, the laser beam is focused at different positions. This method enables focusing on objects at different depths and is suitable for applications such as three-dimensional processing.
Adaptive Focusing:Sensors are used to detect the focusing of the laser beam and the motion of the voice coil motor is adjusted through a feedback control system to achieve automatic focusing. This method improves focusing accuracy and stability, but the system complexity is high.
Lens Focusing:By installing a lens on the rotary voice coil motor, the laser beam is focused to a small spot. This method is simple and easy to use, but the focusing accuracy is low.
Mirror focusing: Using a mirror to reflect the laser beam to a small point. This method achieves higher focusing accuracy, but requires precise adjustment of the position and angle of the reflector.
Dynamic Focusing:By controlling the movement of the rotary voice coil motor, the laser beam is focused at different positions. This method enables focusing on objects at different depths and is suitable for applications such as three-dimensional processing.
Adaptive Focusing:Sensors are used to detect the focusing of the laser beam and the motion of the voice coil motor is adjusted through a feedback control system to achieve automatic focusing. This method improves focusing accuracy and stability, but the system complexity is high.
Features:
Arc type voice coil motorized sub-coils are light weight, short response time and high frequency.
Swing angle 1-100 degrees.
Torque 1-50N.m.
Product Parameters:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |

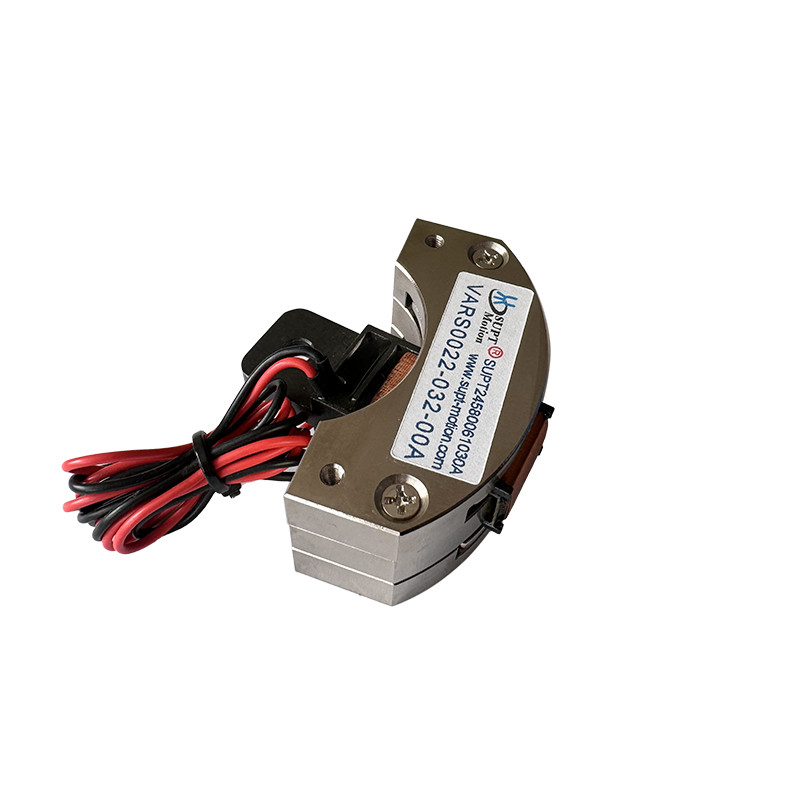

| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |

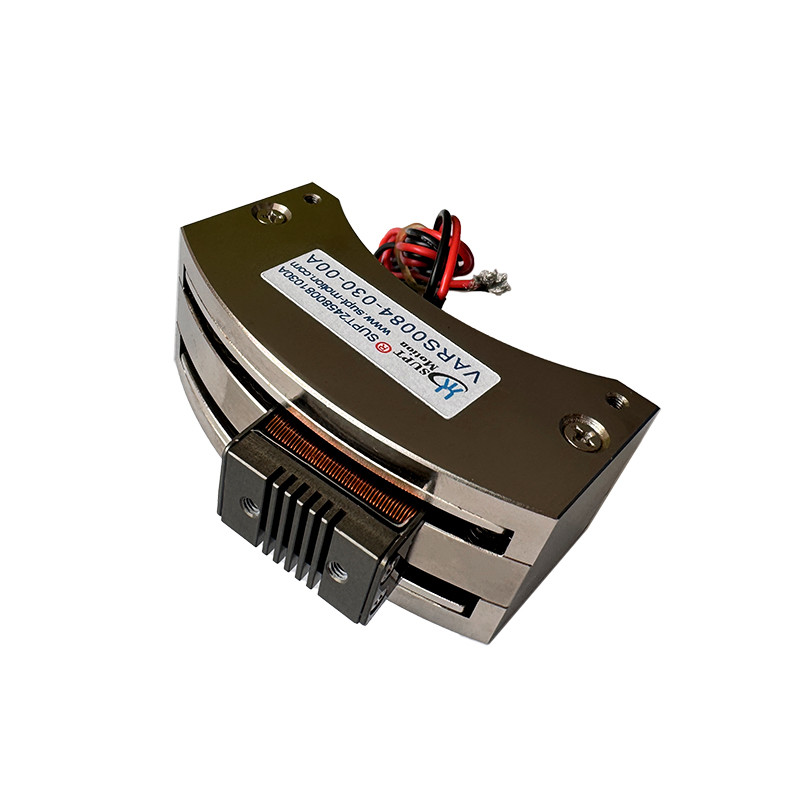

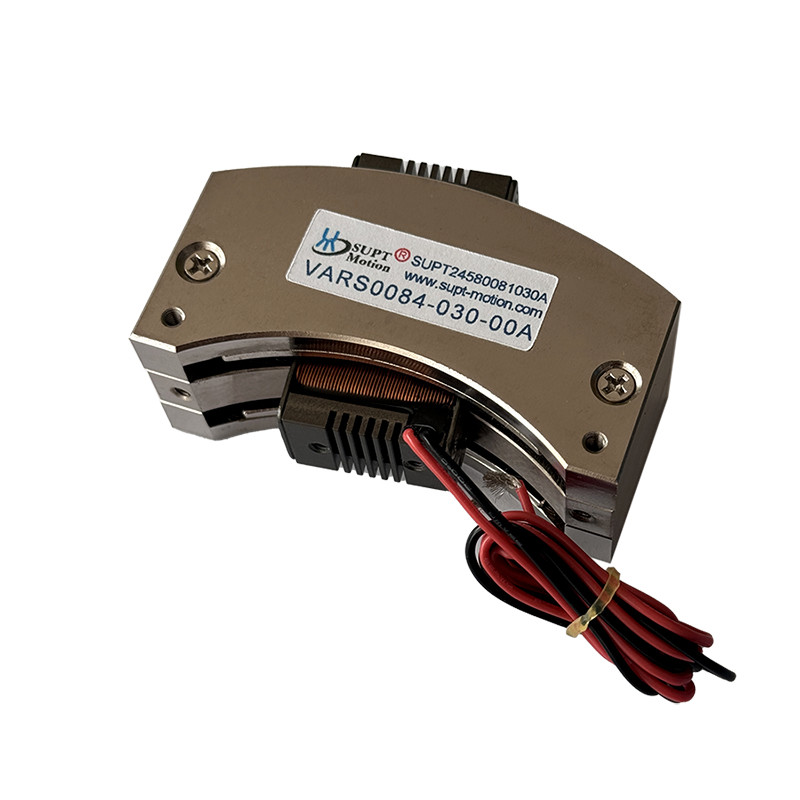

| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Application:
The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry
injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.
