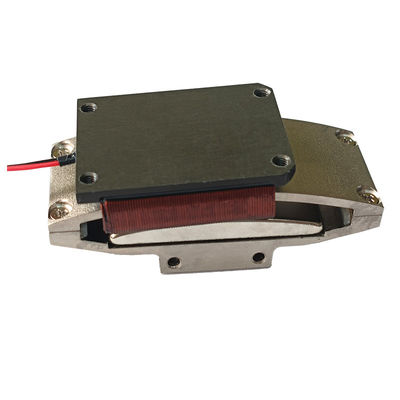

High Precision Micro Rotary Voice Coil Motor For Mirrors Low Noise Design
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | ISO9001 |
| Model Number | VARS Series |
| Minimum Order Quantity | 2PCS |
| Price | $177 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protect Feature | Totally Enclosed | Product Model | VARS0706-014-00A |
|---|---|---|---|
| Peak Torque | 7.1N.m | Motion Type | Rotary |
| Continous Torque | 2.1N-m | Actuation Method | Voice Coil Motor |
| Housing Material | Aluminum | Commutation | Brush |
| Max Voltage | 52.4V | Type | Micro Motor |
| Total Stroke Degrees | 14mm |
Product Description
Product Description:
Rotary actuators utilize a rectangular linear actuator and bending heat technology to provide high resolution to form a preferred angular positioning system. Rotary actuators are commonly used as mirror position actuators for laser technology, rotary valve actuators , rotary positioning systems and flight control actuators, Rotary actuator markets include semiconductor, automotive, industrial and aerospace industries.
Application scenarios for rotary voice coil motors in mirrors are as follows:
In composite axis tracking systems, rotary voice coil motor-driven mirrors act as fast tilting mirrors (FSMs) to compensate for optical path shifts caused by carrier vibration or target motion, enhancing tracking accuracy in scenarios such as laser communication and weapon targeting.
Rotary voice coil motors are used in astronomical telescopes or laser launching systems to compensate for beam aberrations caused by atmospheric turbulence or mechanical deformation by adjusting the mirror angle in real time, restoring imaging quality or beam directivity.
In industries such as laser cutting and lithography, the rapid deflection of mirrors is controlled for beam scanning, focus position correction or pattern generation.
Features:
Rotary type voice coil motor Light weight of moving coil, short response time, high frequency.
Swing angle 1-100 degrees.
Torque 1-50N.m.
Modular design, can be customized.
Product Parameters:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke degrees ( mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |

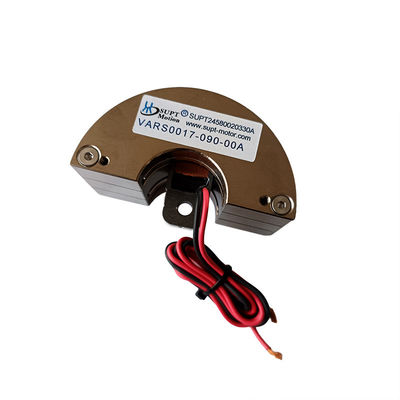

| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |

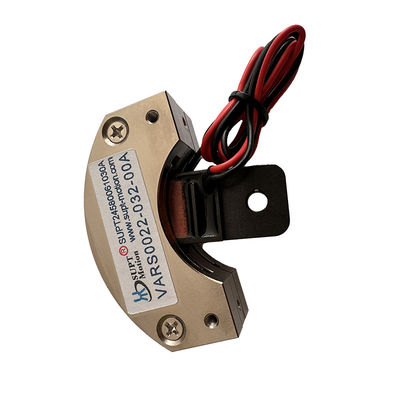

| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.14 | 60 | 25.8 | 0.52 | 115 | 115 | 65 | 54.5 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ￠240 | 78 |
Applications:
Main applications of rotary voice coil motors:.
1. Semiconductor industry: wiring, cutting, drilling, transportation systems, welding, robotics.
2. Field valve operation: type metering valves, pressure test systems, pneumatic valves chemical injection systems.
3. Aerospace technology: Flight control systems, pilot feedback systems.
4. Commercial sector: Computerized cooling pumps, micro camera autofocus systems.
5. Automation industry: laser equipment, distributors, test equipment, textile machinery.
