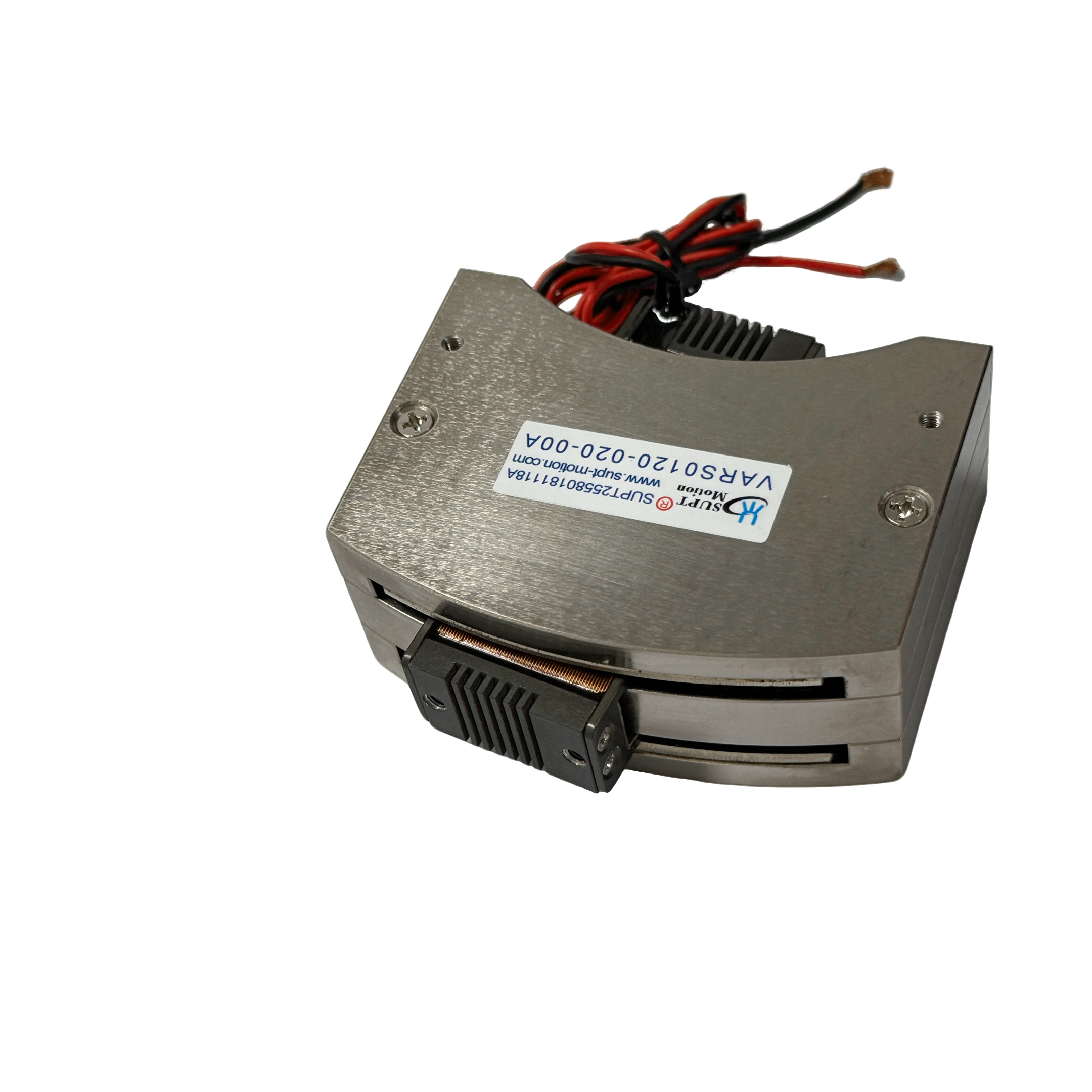

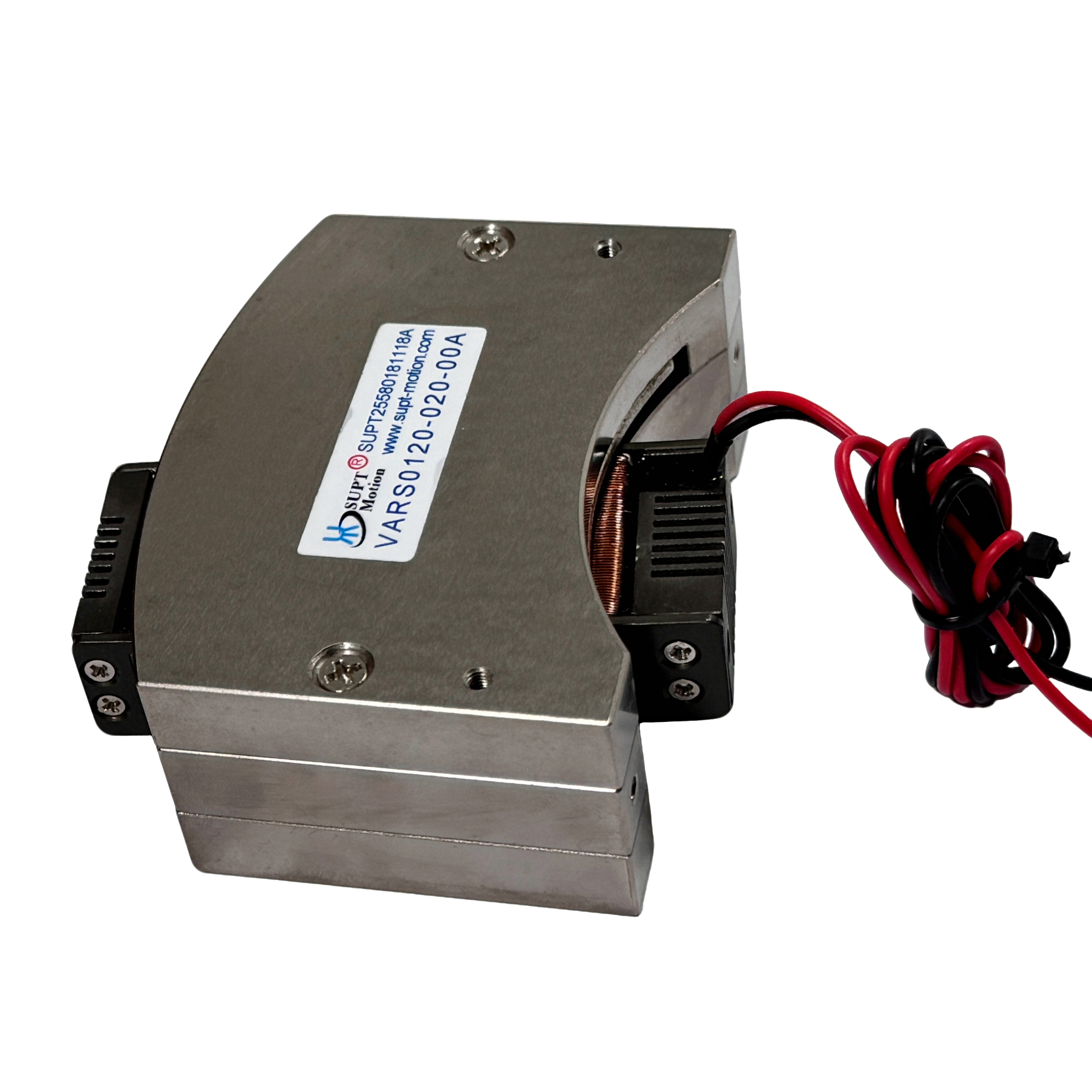

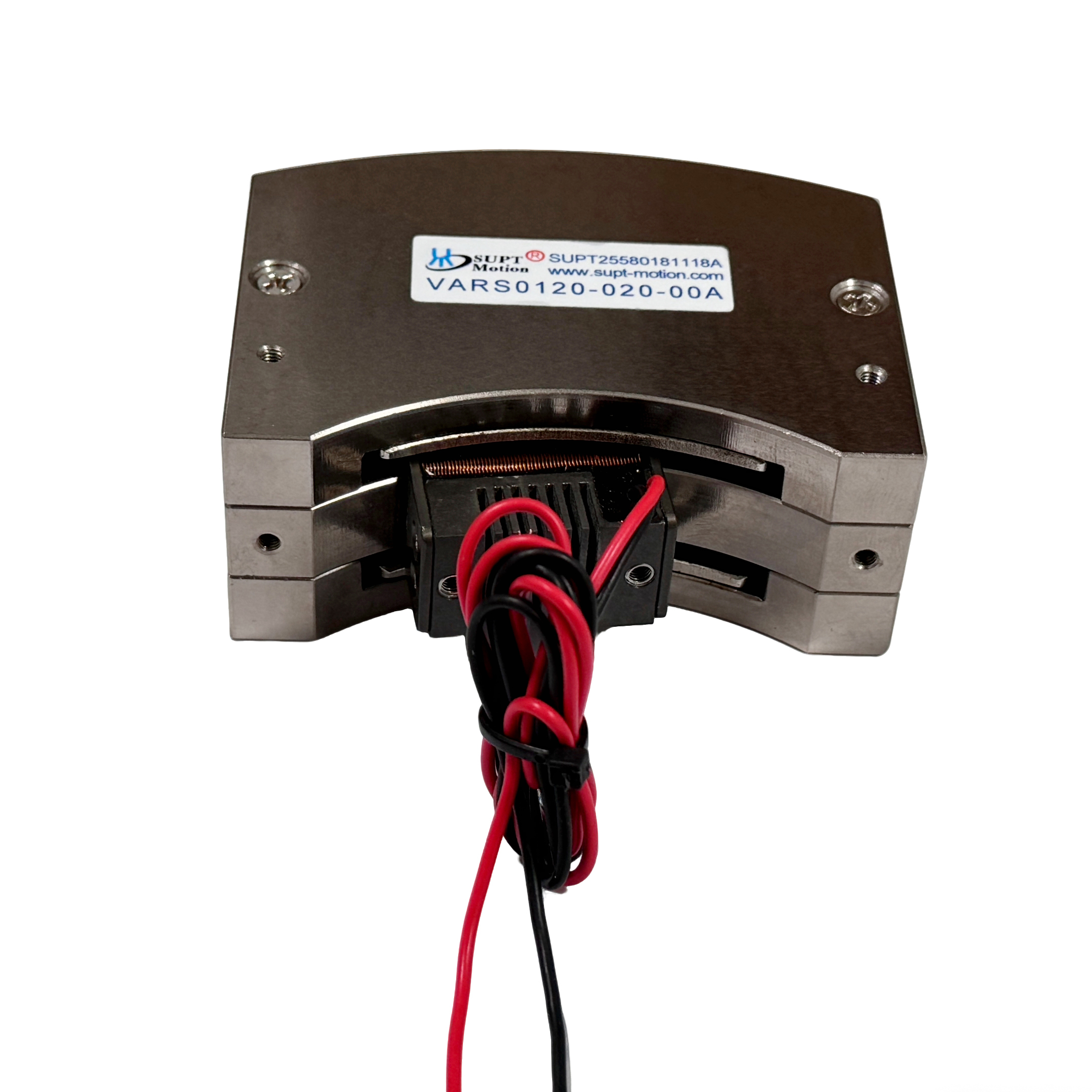

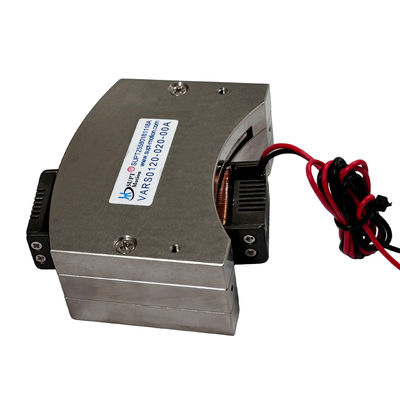

Low Power High Precision Rotary Voice Coil Motor For Valve Control
Product Details
| Protect Feature | Totally Enclosed | Application | Automatic Product |
|---|---|---|---|
| Voltage | 8.4V | Peak Thrust | 1.2N-m |
| Size | 81*73.4*32mm | Operating Temperature | Depends On Application |
| Stroke | 20° | Material | Aluminum Alloy |
| Actuation Method | Voice Coil | Warranty | 3months-1year |
| Rated Speed | 100RPM | ||
| Highlight | low power rotary voice coil motor,high precision valve control motor,rotary voice coil motor with warranty |
||
Product Description
Product Description:
Low-power, high-precision rotary voice coil motor, specially developed for smart valve control scenarios. Its low power consumption is more energy-efficient, with battery life increased by over 50%. The rotary voice coil motor supports precise 0-100° rotation, used for controlling valve opening and flow regulation, with positioning accuracy of ±0.2° and high repeat positioning accuracy, meeting the requirements for precise fluid flow control. It has a built-in Hall sensor to provide real-time feedback on valve position and supports wireless communication module integration for remote monitoring and control. Compact structure, easy installation, suitable for smart valves in HVAC, water supply and drainage, gas, and other fields, helping to upgrade industrial and civil applications to intelligent operations while reducing energy consumption.
Features:
Light weight of actuator coil, short response time and high frequency.
Product types: rotary voice coil motors, oscillating voice coil motors, arc-shaped voice coil motors.
Rotation angle: 0-100°
Positioning accuracy: ±0.2°
Torque output: 1.2N·m
Product Parameters:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke (degree) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.6 | 60 | 26.3 | 0.4 | 350 | ∮169.6 | ∮169.6 | 63 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ∮240 | 78 |
Application:
| The main application of a voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
