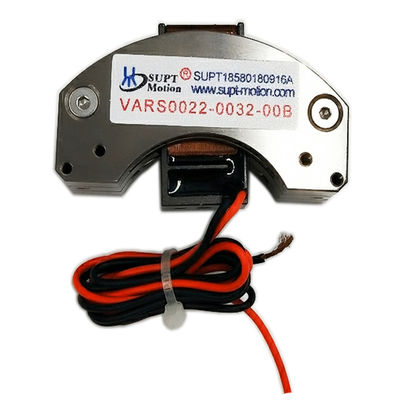

High Precision Rotary Voice Coil Motor For Chip And Device Testing
| Place of Origin | China,Suzhou |
|---|---|
| Brand Name | SUPT MOTION |
| Certification | CE, ISO9001 |
| Model Number | VARS0350-060-00A |
| Minimum Order Quantity | 1PCS |
| Price | $103-$190 |
| Packaging Details | Customized packaging etc. |
| Delivery Time | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Payment Terms | T/T |
| Supply Ability | To be negotiated |
Product Details
| Protect Feature | Totally Enclosed | Application | Automatic Product |
|---|---|---|---|
| Voltage | 25.8V | Peak Thrust | 3.5N-m |
| Size | 115*115*65mm | Stroke | 60° |
| Material | Aluminum Alloy | Actuation Method | Voice Coil |
| Warranty | 3months-1year | Rated Speed | 100RPM |
| Highlight | high precision rotary voice coil motor,rotary voice coil motor for testing,voice coil motor for chip testing |
||
Product Description
Product Description:
Rotary voice coil motors have the core advantages of high precision, fast response, and low noise. In chip and device testing equipment, rotary voice coil motors are used to drive test probes or test fixtures for rotational positioning, achieving comprehensive and precise contact testing of chip pins and circuit nodes. Their fine angle control capability can adapt to the testing requirements of chips with different package specifications, allowing rapid adjustment of probe angles to ensure no deviation at test points. At the same time, their low-noise, low-vibration operation characteristics help prevent testing errors caused by vibration interference during the testing process, ensuring the accuracy and reliability of test data. They are suitable for the high-efficiency demands of mass testing of semiconductor devices, helping to improve productivity and precision in the testing process.
Features:
Light weight of actuator coil, short response time and high frequency.
Product types: rotary voice coil motors, oscillating voice coil motors, arc-shaped voice coil motors.
Rotation angle: 60°
Positioning accuracy: ±0.15°
Output torque: 3.5 N·m
Product Parameters:
| Product Model | Peak torque (N-m) |
Continuos torque at 25℃(N-m) |
Total Stroke (degree) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil(g) | Length (mm) |
Width (mm) |
Height (mm) |
| VARS0008-026-00A | 0.08 | 0.05 | 26 | 6.4 | 0.05 | 11.7 | 35 | 39.8 | 36.1 |
| VARS0017-090-00A | 0.17 | 0.1 | 90 | 11.1 | 0.1 | 17.8 | 70 | 41.5 | 39 |
| VARS0022-032-00A | 0.22 | 0.12 | 32 | 15.5 | 0.16 | 21.5 | 60 | 60 | 36 |
| VARS0042-040-00A | 0.42 | 0.38 | 40 | 3.5 | 0.12 | 38 | 82 | 53.6 | 30.3 |
| VARS0077-020-00A | 0.77 | 0.63 | 20 | 6.7 | 0.24 | 66 | 75 | 50 | 30 |
| VARS0084-030-00A | 0.84 | 0.6 | 30 | 6.3 | 0.2 | 50.4 | 75 | 48.9 | 30.6 |
| VARS0120-020-00A | 1.2 | 0.5 | 20 | 8.4 | 0.67 | 65 | 81 | 73.4 | 32 |
| VARS0350-060-00A | 3.5 | 1.6 | 60 | 26.3 | 0.4 | 350 | ∮169.6 | ∮169.6 | 63 |
| VARS0706-014-00A | 7.1 | 2.1 | 14 | 52.4 | 1.03 | 225.5 | 115 | 65 | 54.5 |
| VARS4520-030-00A | 45.2 | 19 | 30 | 71.5 | 4.3 | 1350 | ∮240 | 78 |
Application:
| The main application of a Rotary voice coil motor: |
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. |
|
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. |
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. |
| 4.Vibration System:Shaking table, vibration platform. |
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. |
| 6.Aviation Technology:Flight control system, pilot feedback system. |
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. |
